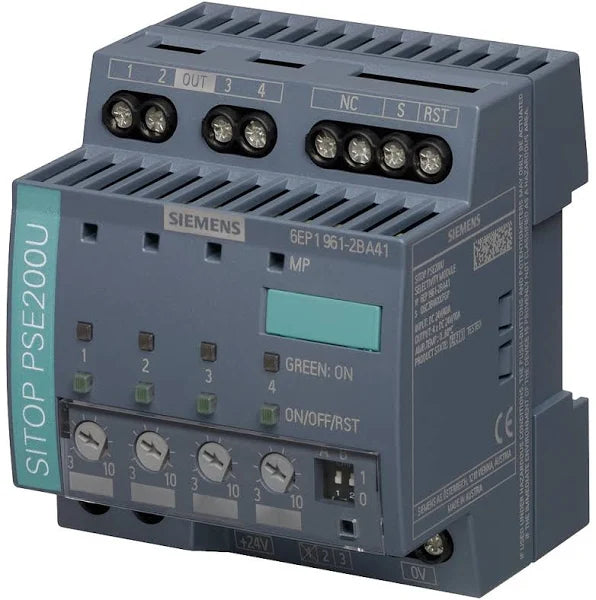

6EP1961-2BA41 | Siemens SITOP PSE200U 4-Channel 24 VDC Selectivity Module (3–10 A Outputs)
- Regular price
- $192.00
- Sale price
- $192.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 6EP1961-2BA41
Description
The Siemens 6EP1961-2BA41 is a SITOP PSE200U selectivity module designed to distribute and monitor 24 VDC power across four independent load circuits. Operating from a 22–30 VDC input range, it provides individually adjustable output currents between 3 A and 10 A per channel, ensuring reliable protection against overloads and short circuits. With high efficiency and DIN-rail mounting, the module enhances system resilience in industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | PLCs/Machine Control |
| Part Number | 6EP1961-2BA41 |
| Subcategory | Selectivity Module |
| Series | SITOP PSE200U |
| Type | 4-channel DC selectivity module |
| Input Voltage | 22–30 VDC |
| Output Voltage | 24 VDC nominal |
| Number of Outputs | 4 channels |
| Output Current (Per Channel) | Adjustable 3–10 A |
| Total Output Current | Up to 40 A (4 × 10 A max) |
| Efficiency | 99% |
| Input Type | DC |
| Output Type | DC |
| Mounting Type | DIN rail |
| Termination Style | Screw-clamp terminals |
| Operating Temperature | –25°C to +60°C |
| Enclosure Rating | IP20 |
| Height | 80 mm |
| Width | 80 mm |
| Depth | 72 mm |
| Signaling | Single-channel signaling output |
| Application | 24 VDC load protection and power distribution |
Information About 6EP1961-2BA41
The 6EP1961-2BA41 is part of the SITOP PSE200U family, engineered to improve 24 VDC power reliability by isolating and supervising multiple branch circuits. The module disconnects only the affected feeder during overload conditions, allowing remaining circuits to continue operating without interruption. Its electronics are designed to tolerate short inrush peaks while detecting gradual short-circuit faults over longer cable runs. Integrated LEDs and a signaling output support clear fault indication and diagnostics, making it well-suited for machinery, automation panels, and distributed control architectures requiring selective protection.
Key Features
- 4 independently protected outputs: Adjustable from 3 A to 10 A per channel.
- Automatic selective shutdown: Only the faulty feeder disconnects during overloads.
- Wide 22–30 VDC input range: Optimized for 24 VDC power distribution systems.
- High efficiency (99%): Minimal power loss and heat generation.
- LED fault indication: Supports quick on-site troubleshooting.
- Remote signaling capability: Provides centralized monitoring of feeder status.
- DIN-rail mount design: Fast installation in standard control cabinets.
- Short-term inrush tolerance: Handles startup surges without nuisance tripping.
The 6EP1961-2BA41 delivers the reliability and precision required for selective 24 VDC load protection in industrial automation systems.
