SELA36AT0060 | GE Spectra RMS 60A 3-Pole 600V Electronic LSI Molded Case Circuit Breaker
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SELA36AT0060
Description

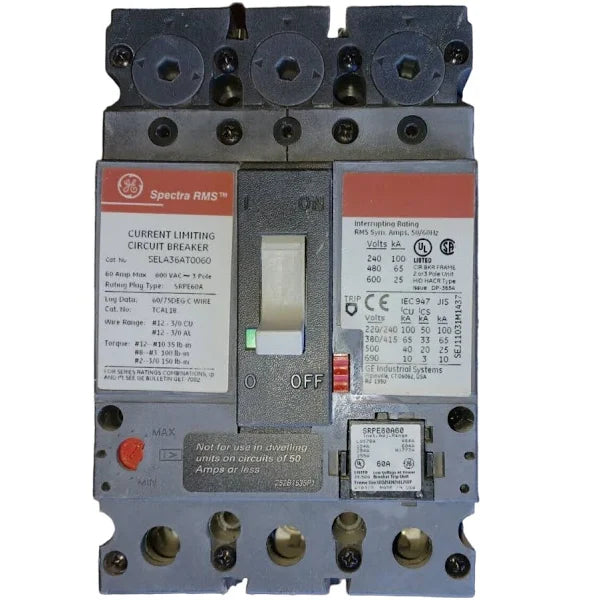

The General Electric SELA36AT0060 is a 60-amp, 3-pole molded case circuit breaker designed for 600-volt applications requiring solid-state protection. As part of the Spectra RMS series, it uses an electronic LSI trip unit to provide precise Long-Time, Short-Time, and Instantaneous protection. The breaker’s bolt-on construction supports secure installation in panel and distribution systems with demanding performance requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | SELA36AT0060 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | General Electric |
| Type | SELA |
| Frame | SE150 |
| Amperage Rating | 60 A |
| Poles | 3 |
| Phase | 3-Phase |
| Voltage Rating | 600 VAC |
| Trip Type | Electronic LSI / Interchangeable |
| Functions | LSI – Long-Time, Short-Time, Instantaneous |
| Protection | Solid-state electronic trip |
| Interrupt Rating | 25/65/100 kA (varies by voltage) |
| AIC Rating | 65 kA @ 480V |
| Connection Type | Bolt-On |
| Actuator Type | Pivot / Toggle Handle |
| Frequency Rating | 50/60 Hz |
| Enclosure Compatibility | NEMA 1 / 3R / 4 / 4X / 12 |
| Dimensions | 4.12 in W × 3.38 in D × 6.31 in H |
| Temperature Rating | 104°F |
| Wire Size Range | 12 to 3/0 AWG |
| Mounting Type | Panel |
| Application | Industrial and commercial distribution protection |
Information About SELA36AT0060
The SELA36AT0060 is part of GE’s Spectra RMS family, which incorporates digital solid-state trip technology for accurate RMS sensing of both sinusoidal and non-sinusoidal currents. Built on the SE150 frame, it uses interchangeable rating plugs and adjustable LSI functions to support a wide range of coordination requirements. The breaker’s bolt-on design integrates easily into panel installations while maintaining its 3-pole configuration for three-phase distribution systems. With interrupting capabilities up to 65 kA at 480V and suitability for multiple NEMA enclosure types, it is commonly used in industrial and commercial applications requiring high-performance protection.
Key Features
- 60A molded case breaker: Designed for low-amperage three-phase protection.
- Solid-state electronic LSI trip: Provides adjustable Long-Time, Short-Time, and Instantaneous functions.
- Spectra RMS digital sensing: Measures true RMS current for accurate fault detection.
- SE150 frame construction: Compact molded case design with interchangeable rating plugs.
- High interrupting capability: Up to 65 kA at 480V for fault-heavy environments.
- Bolt-on mounting: Ensures secure installation within compatible panels.
- Wide wire range: Accepts 12 to 3/0 AWG conductors for installation flexibility.
- NEMA-rated compatibility: Suited for enclosure types 1, 3R, 4, 4X, and 12.
The SELA36AT0060 delivers the reliability and precision required for advanced protection in GE Spectra RMS distribution systems.
