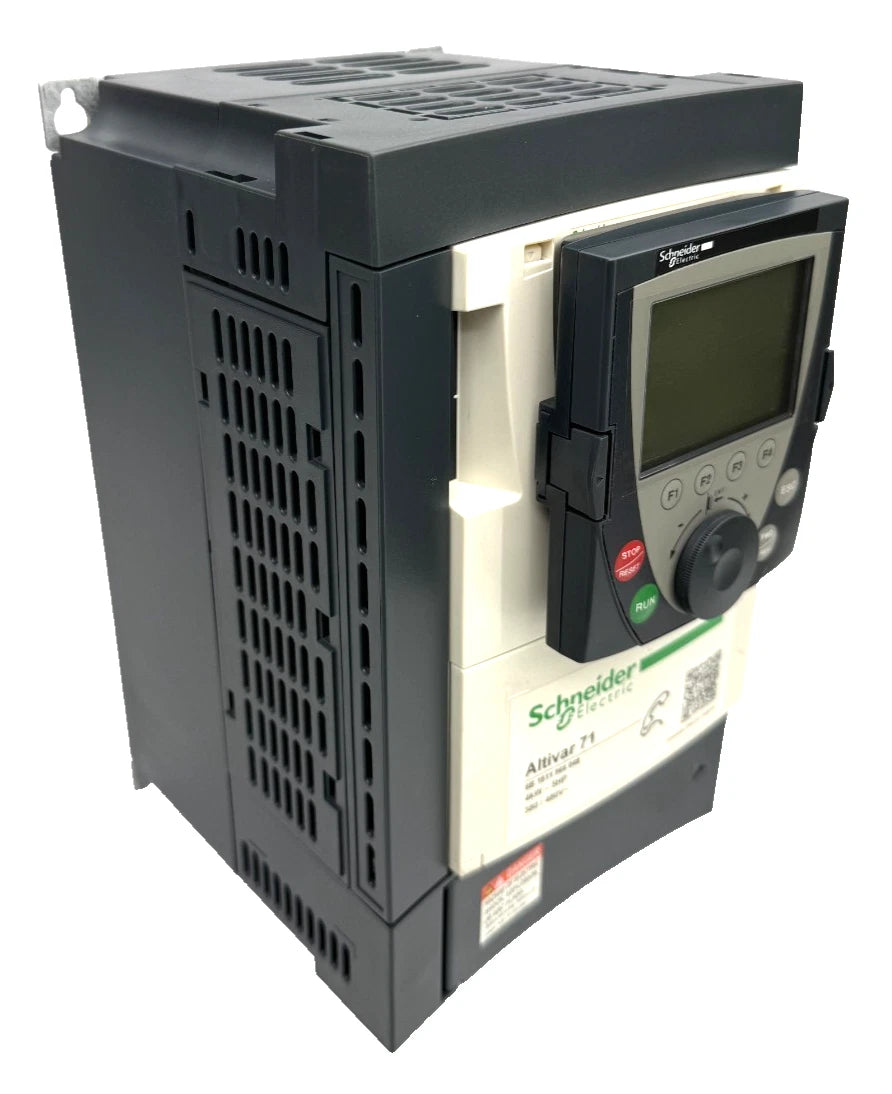

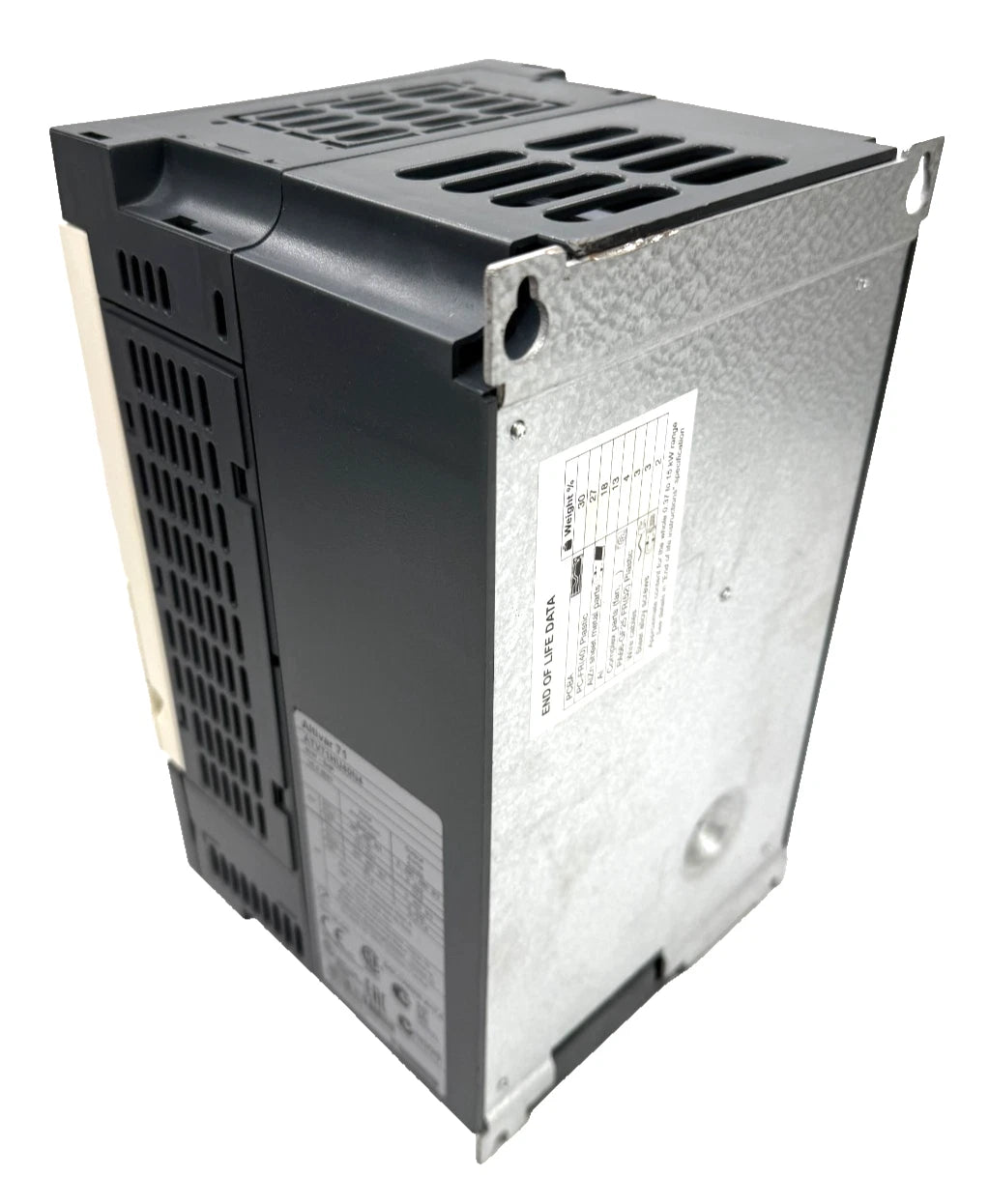

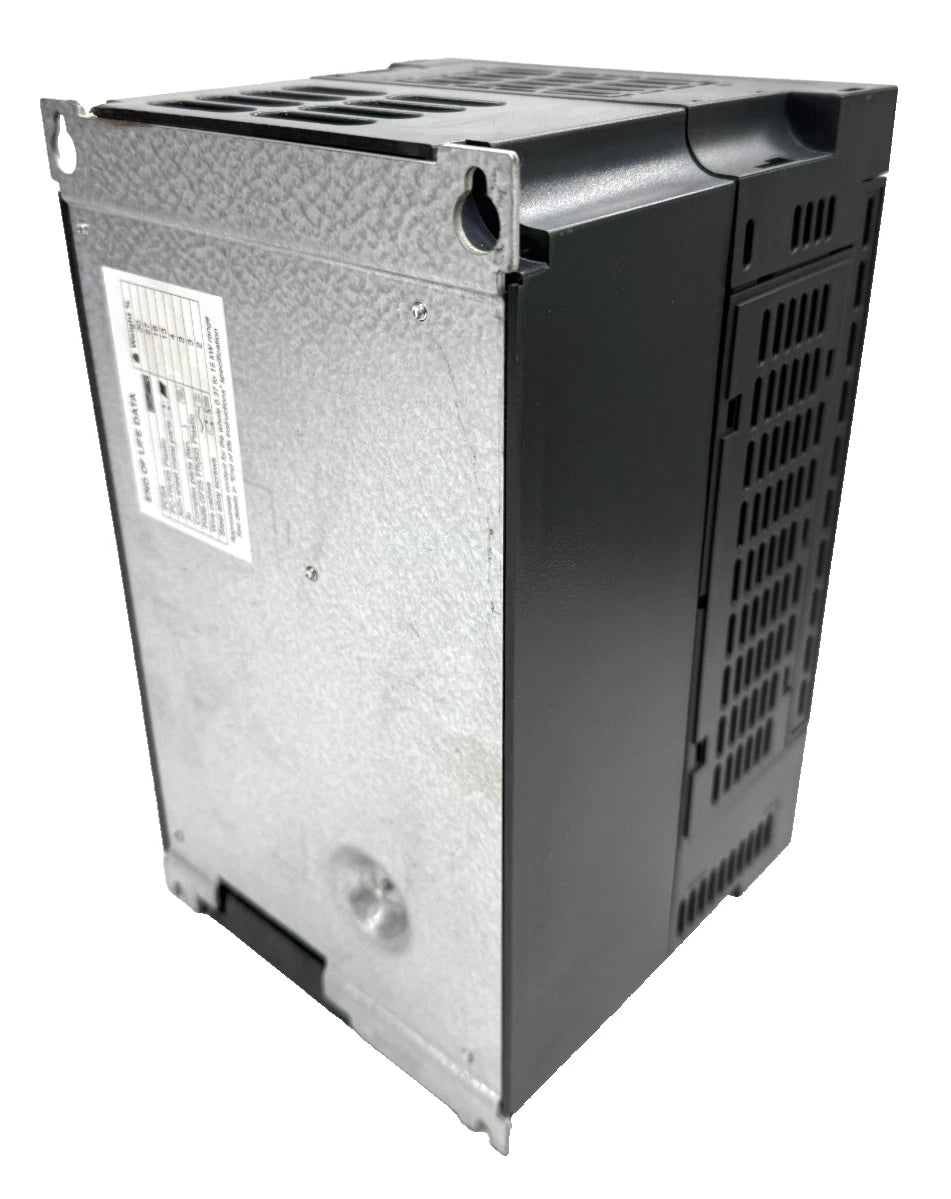

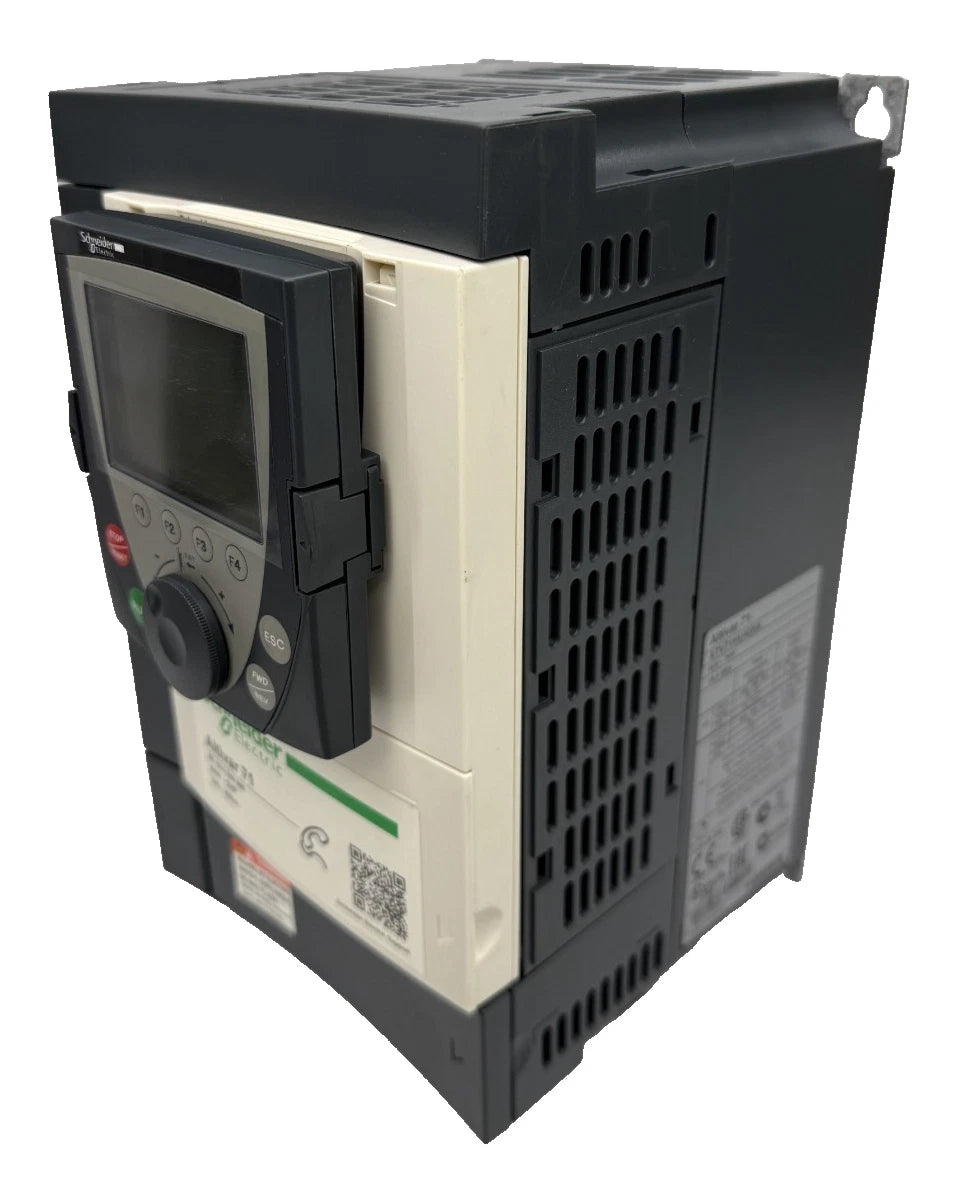

ATV71HU40N4 | Schneider Electric 4 kW / 5 HP Variable Speed Drive, 480 V, Altivar 71 Series
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV71HU40N4
Description
The Schneider Electric ATV71HU40N4 is a 4 kW (5 HP) variable speed drive engineered for demanding 3-phase motor applications. Designed for 380–480 VAC systems, it features an integrated EMC filter, DC choke, and built-in heatsink for stable and efficient operation. With Modbus and CANopen communication support and a detachable graphical terminal, the unit delivers precise motor control in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATV71HU40N4 |
| Subcategory | Drive |
| Power Rating | 4 kW / 5 HP |
| Voltage Rating | 380–480 VAC (323–528 VAC permissible) |
| Number of Phases | 3-phase |
| Output Type | 3-phase |
| Current Rating | 10.5 A (rated output) |
| Motor Types Supported | Asynchronous and synchronous motors |
| Enclosure Rating | IP20 / UL Type 1 |
| Communication | Modbus, CANopen |
| EMC Filter | Integrated |
| DC Choke | Built-in |
| Mounting Method | Wall or panel mount |
| Display Terminal | Detachable graphic terminal |
| Drive Type | Variable Speed Drive (VSD/VFD) |
| Standards Compliance | EN/IEC 61800-3, EN/IEC 61800-5-1, UL Type 1, EN 55011 |
| Environmental Classes | IEC 60721-3-3 Class 3C1 / 3S2 |
| Dimensions | 155 mm × 187 mm × 260 mm |
| Application Use | Complex, high-power industrial machinery |
Information About
The ATV71HU40N4 is part of Schneider Electric’s Altivar 71 series, built for advanced control of asynchronous and synchronous motors in complex, high-power applications. Its IP20 construction and compact footprint allow convenient cabinet or wall-mount installation while maintaining reliable thermal performance. The drive integrates easily into automation systems thanks to onboard Modbus and CANopen interfaces and broad voltage compatibility from 323 to 528 VAC. Typical applications include process machinery, material handling, and other industrial equipment requiring high-precision speed regulation and flexible programming.
Key Features:
- 4 kW / 5 HP motor control: Supports demanding 3-phase drive applications.
- Wide supply range: Operates from 323–528 VAC for global compatibility.
- Integrated EMC filter: Reduces conducted and radiated emissions for compliance.
- DC choke included: Provides improved harmonic suppression and power quality.
- Detachable graphic terminal: Enables intuitive setup, monitoring, and diagnostics.
- Motor versatility: Controls asynchronous and synchronous motors with advanced algorithms.
- Standards-compliant design: Meets EN/IEC, UL, and environmental classification requirements.
- Compact IP20 housing: Suitable for panel or wall-mounted installations.
The ATV71HU40N4 delivers the reliability and precision required for high-performance industrial motor control applications.
