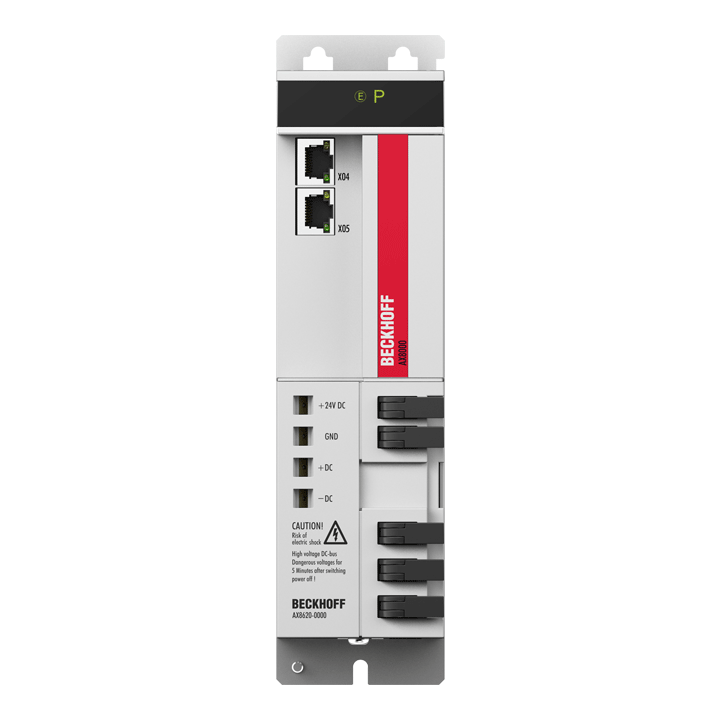

AX8620-0000-0000 | Beckhoff Power Supply Module for AX8000 Multi-Axis Servo System 20 A
- Regular price
- $3,690.00
- Sale price
- $3,690.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX8620-0000-0000
Description
The Beckhoff AX8620-0000-0000 Power Supply Module provides regulated DC link power for the AX8000 multi-axis servo system. It supports both single-phase 100–240 V AC and three-phase 200–480 V AC inputs, delivering up to 20 A DC link current with integrated EtherCAT communication for synchronized motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Motion Control |
| Part Number | AX8620-0000-0000 |
| Subcategory | Servo Power Modules |
| Function | Power supply module for AX8000 multi-axis system |
| Rated Supply Voltage (1-Phase) | 100–240 V AC |
| Rated Supply Voltage (3-Phase) | 200–480 V AC |
| DC Link Voltage | Max. 848 V DC |
| DC Link Output Current | 5/7 A DC (single-phase), 20 A DC (three-phase) |
| System Bus | EtherCAT |
| Drive Profile | CiA402 (IEC 61800-7-201 CoE) |
| Cooling | Convection-cooled design |
| Width | 60 mm |
| Mounting | DIN-rail or cabinet installation |
| Enclosure Protection | IP20 |
| Ambient Temperature (Operation) | 0…40°C (up to 55°C with derating) |
| Storage Temperature | -25…+85°C |
| Compliance | CE, cULus certified |
| Application | AX8000 multi-axis servo drive systems |
| Relative Humidity | 95%, non-condensing |
| Weight | 2.00 lbs (approx. 0.91 kg) |
Information About AX8620-0000-0000
The AX8620-0000-0000 is part of Beckhoff’s AX8000 servo system family, serving as the primary power supply module for multi-axis configurations. It converts incoming AC mains voltage into a stabilized DC link voltage up to 848 V DC, which is distributed across connected servo modules. Supporting both single-phase and three-phase supply options, the module ensures flexible integration in various industrial applications. With EtherCAT-based communication, it enables precise coordination between servo axes and the control system, ensuring fast response and high synchronization accuracy. The 60 mm-wide compact housing allows for space-efficient cabinet installation while maintaining reliable cooling and electrical safety.
Key Features:
- Flexible Power Input: Supports both single-phase (100–240 V AC) and three-phase (200–480 V AC) power configurations for broad application compatibility.
- High Output Capability: Provides up to 20 A DC link current and 848 V DC voltage for stable servo drive operation.
- Integrated EtherCAT Interface: Enables seamless communication and synchronization within Beckhoff’s motion control architecture.
- Standardized Drive Profile: Complies with CiA402 according to IEC 61800-7-201 for consistent control and interoperability.
- Compact 60 mm Design: Slim housing saves control cabinet space while ensuring efficient thermal management.
- Enhanced Safety and Certification: CE and cULus approved for compliance with international industrial standards.
- Wide Temperature Range: Operates reliably from 0 to 40°C, with extended capability up to 55°C under power reduction.
- Optimized for Multi-Axis Systems: Designed specifically for the AX8000 platform to provide reliable and synchronized DC link power.
The AX8620-0000-0000 delivers the reliability and precision required for high-performance servo applications, ensuring stable power supply and coordinated motion across multi-axis systems.
