BDA140153 | Square D 15A 1-Pole PowerPacT B Molded Case Circuit Breaker 18kA @ 480V
- Regular price
- $436.00
- Sale price
- $436.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BDA140153
Description

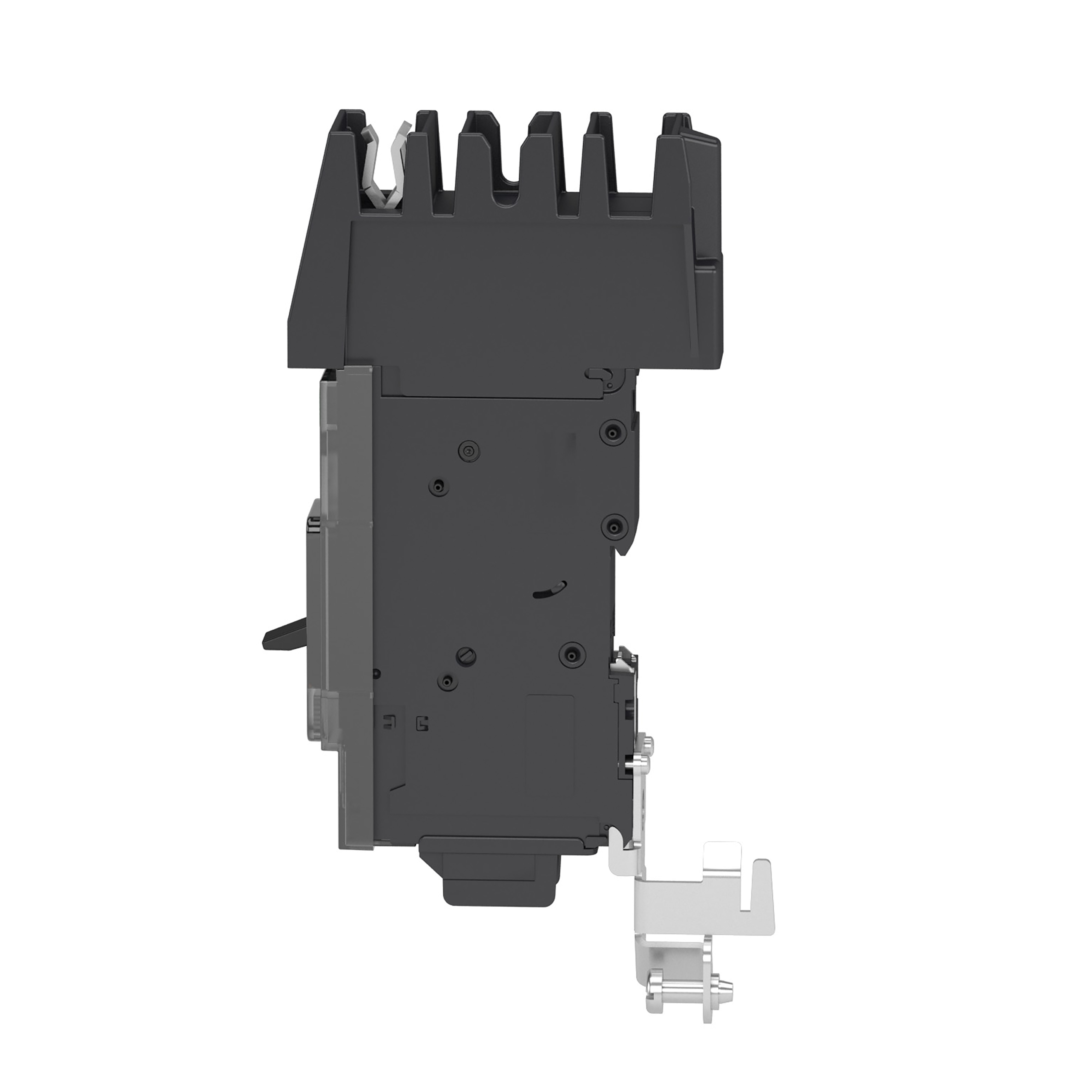

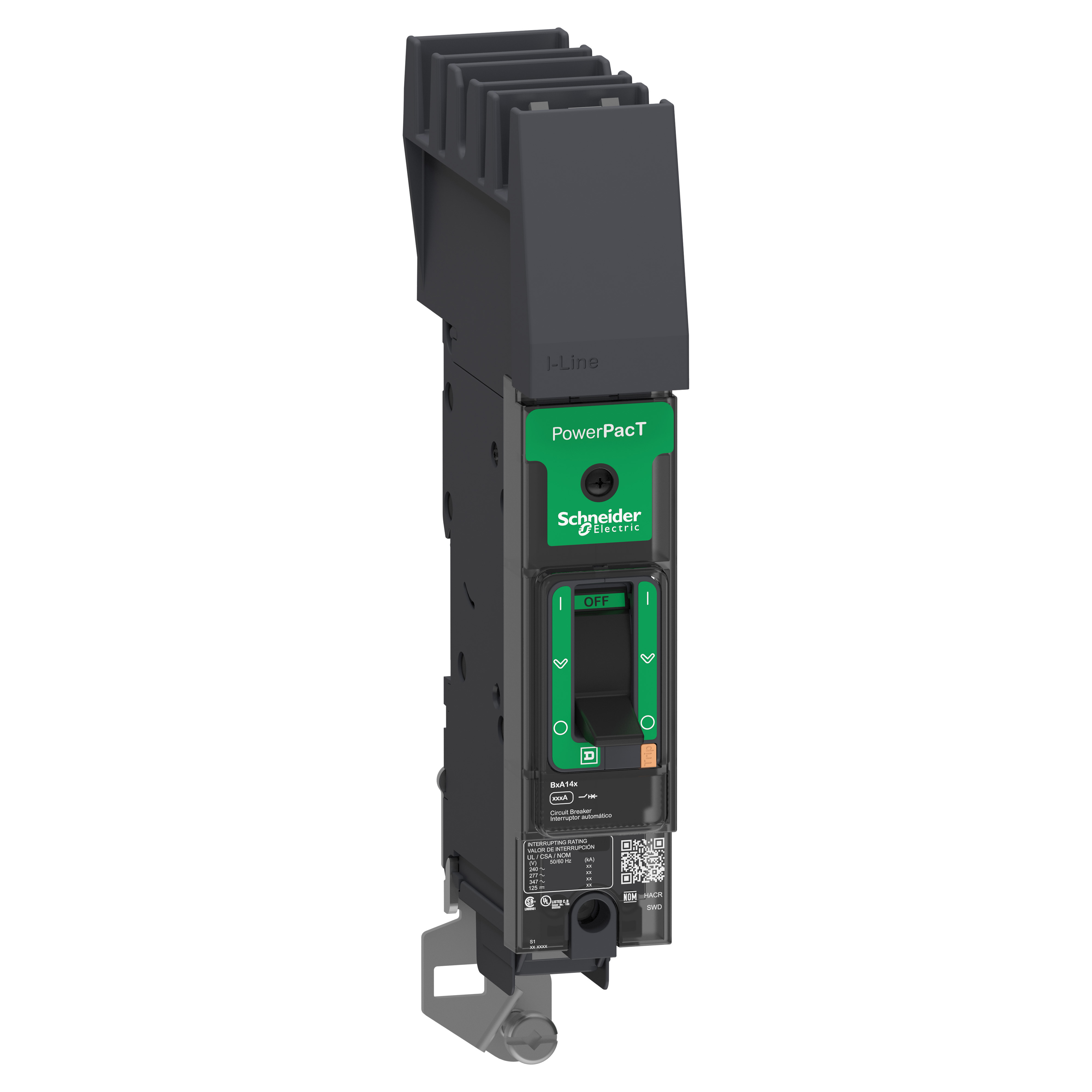

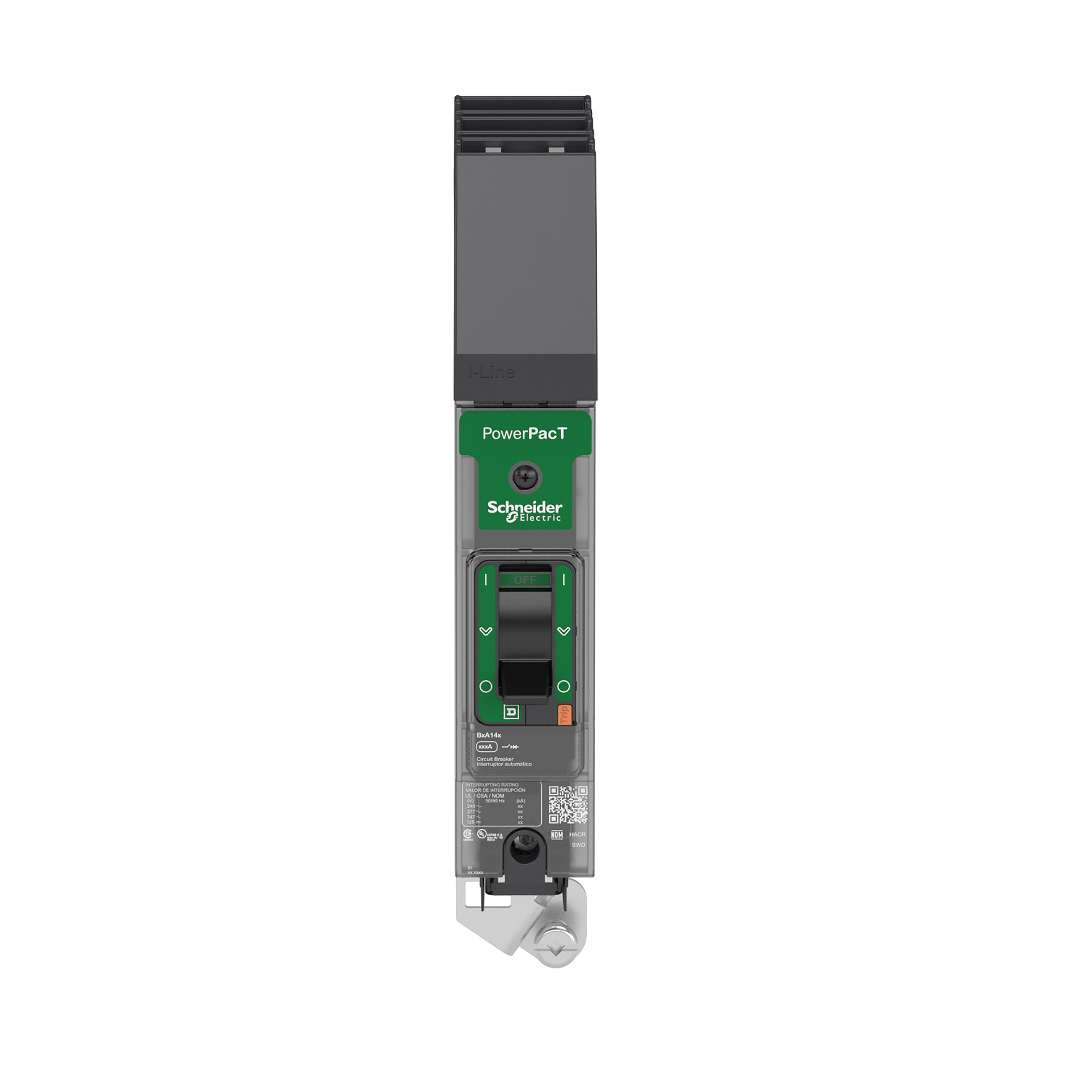

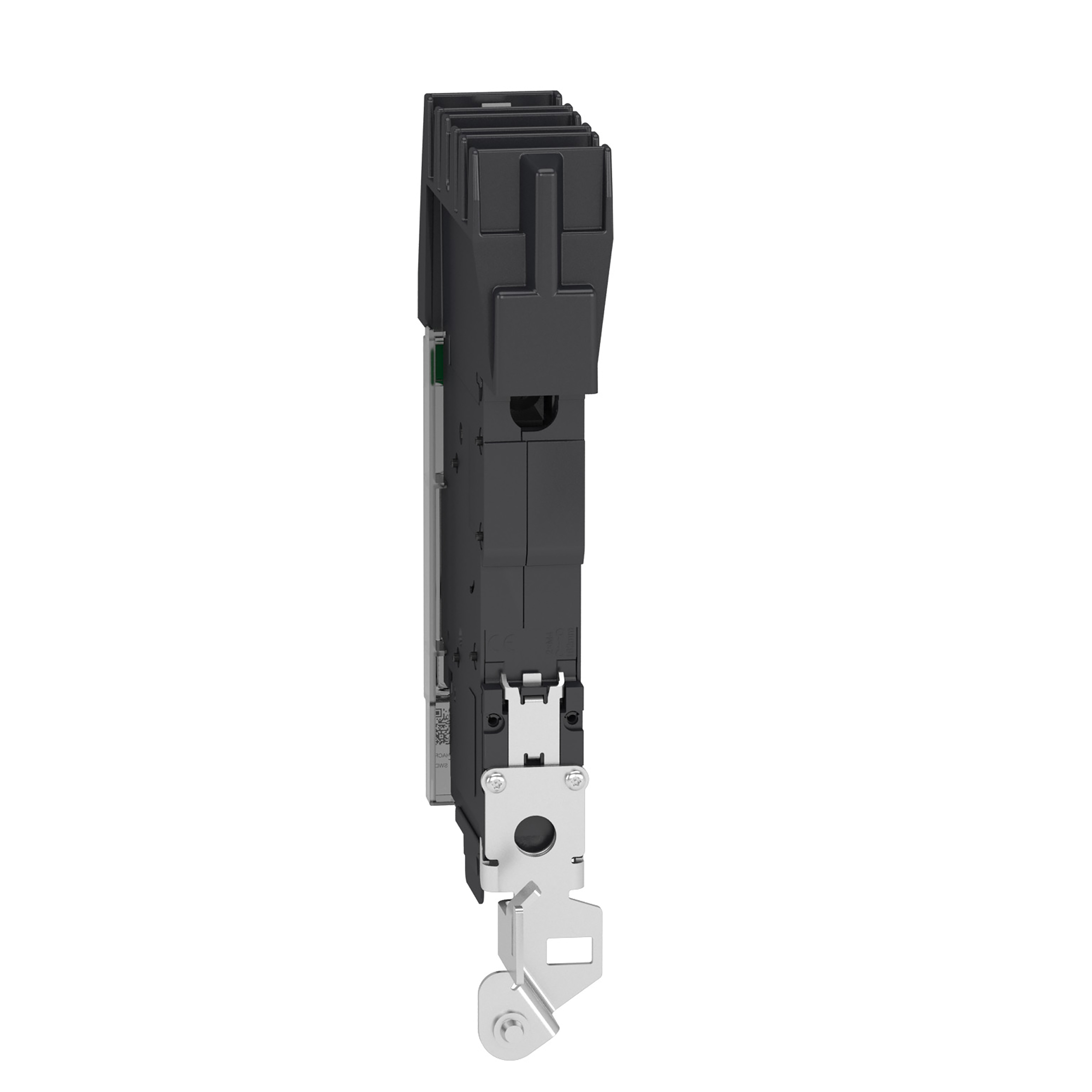

The Square D BDA140153 by Schneider Electric is a 1-pole, 15-amp PowerPacT B-frame molded case circuit breaker designed for reliable overcurrent and short-circuit protection. It supports up to 480Y/277 VAC operation and provides a breaking capacity of 18 kA, offering dependable performance in commercial and industrial distribution systems. This compact, I-Line–mounted circuit breaker features thermal magnetic trip technology for precise and consistent protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Circuit Breaker |
| Part Number | BDA140153 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPacT B |
| Frame Type | BDA |
| Amperage Rating | 15 A |
| Number of Poles | 1 |
| Voltage Rating | 480Y/277 VAC, 240 VAC, 125 VDC |
| Interrupting Rating | 18 kA @ 480Y/277 VAC |
| Trip Type | Thermal Magnetic |
| Mounting Type | I-Line Plug-In |
| Connection Type | I-Line line side, mechanical lug load side |
| Wire Size | AWG 14–2/0 (Al/Cu) |
| Continuous Current Rating | 80% |
| Tightening Torque | 31.9–54.9 lbf·in (3.6–6.2 N·m) |
| Operating Frequency | 50/60 Hz |
| Insulation Voltage (Ui) | 800 V IEC 60947-2 |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| Operating Temperature Range | -13°F to 158°F (-25°C to 70°C) |
| Altitude Rating | Up to 2000 m without derating |
| Certifications | UL, CSA, CE, NOM, IEC, CCC, EAC |
| Protection Degree | IP40 (front cover) |
| Dimensions (H × W × D) | 5.4 in × 1.06 in × 3.5 in |
| Country of Origin | Mexico |
| Weight | 1.4 lb (0.64 kg) |
Information About BDA140153
The BDA140153 is part of Schneider Electric’s PowerPacT B series, engineered for high performance in compact electrical panels and distribution systems. Designed with dual-break rotating contacts, it minimizes peak fault current while enhancing operational safety and system lifespan. The unit features I-Line plug-in connections on the line side and mechanical lugs on the load side, simplifying installation and maintenance. Fully compliant with UL, CSA, NOM, and IEC standards, the breaker ensures safe and efficient operation in both residential and industrial applications.
Key Features:
- Thermal Magnetic Trip Unit: Combines long-time and instantaneous trip functions for overload and short-circuit protection.
- High Breaking Capacity: Rated at 18 kA @ 480Y/277 VAC, ensuring safe interruption under heavy fault conditions.
- Compact B-Frame Design: Offers robust protection in a space-efficient format ideal for dense panel configurations.
- Dual-Break Contact System: Reduces peak let-through current and enhances breaker longevity.
- I-Line Mounting: Provides quick, secure plug-in installation within compatible distribution panels.
- Wide Wire Range: Accepts AWG 14–2/0 aluminum or copper conductors for versatile wiring configurations.
- Temperature-Resistant Build: Operates effectively from -25°C to +70°C, suitable for diverse environments.
- Compliance and Certifications: Meets UL 489, CSA C22.2, IEC 60947, NOM, and CE standards for safety and quality.
The BDA140153 delivers the reliability and precision required for modern electrical distribution and control systems.
