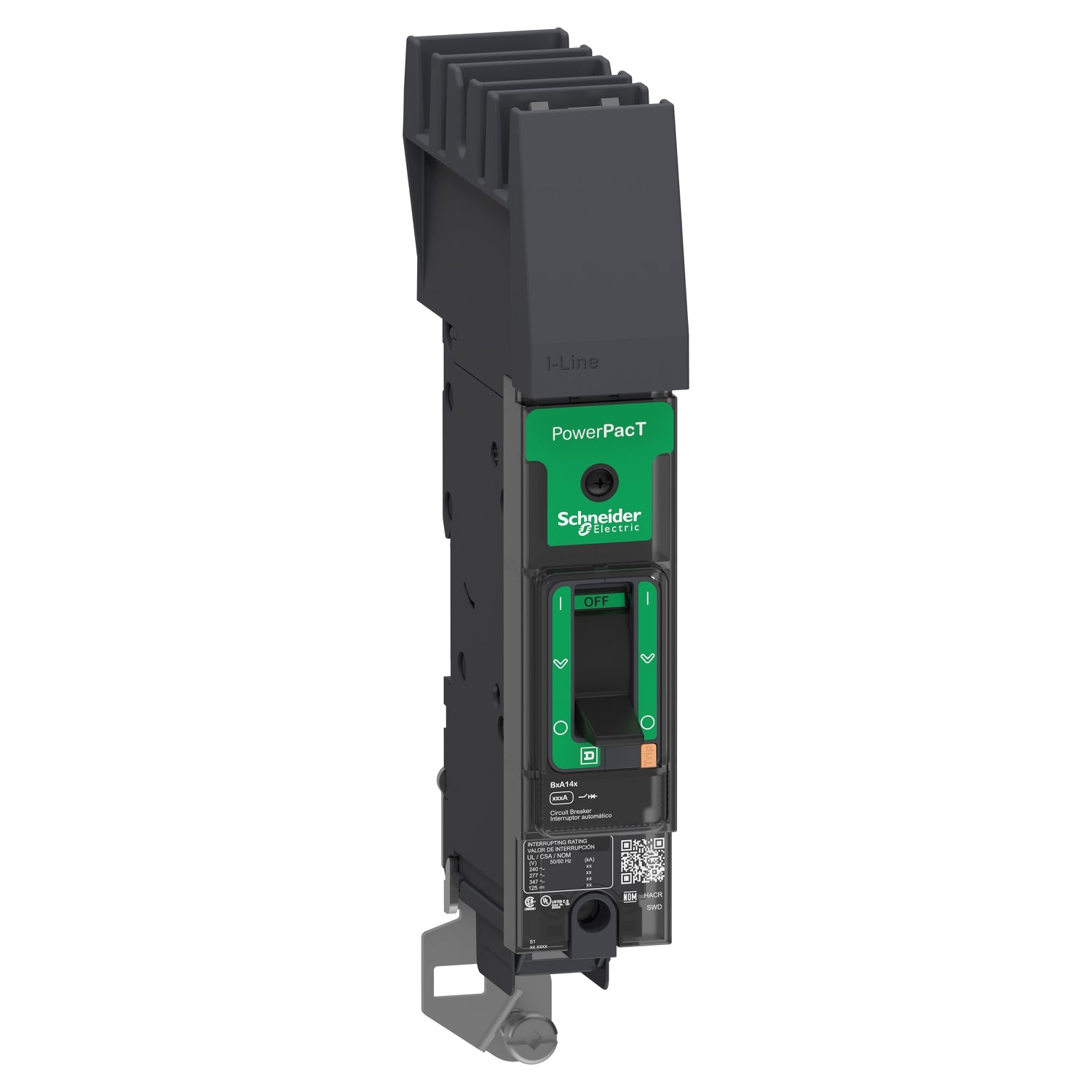

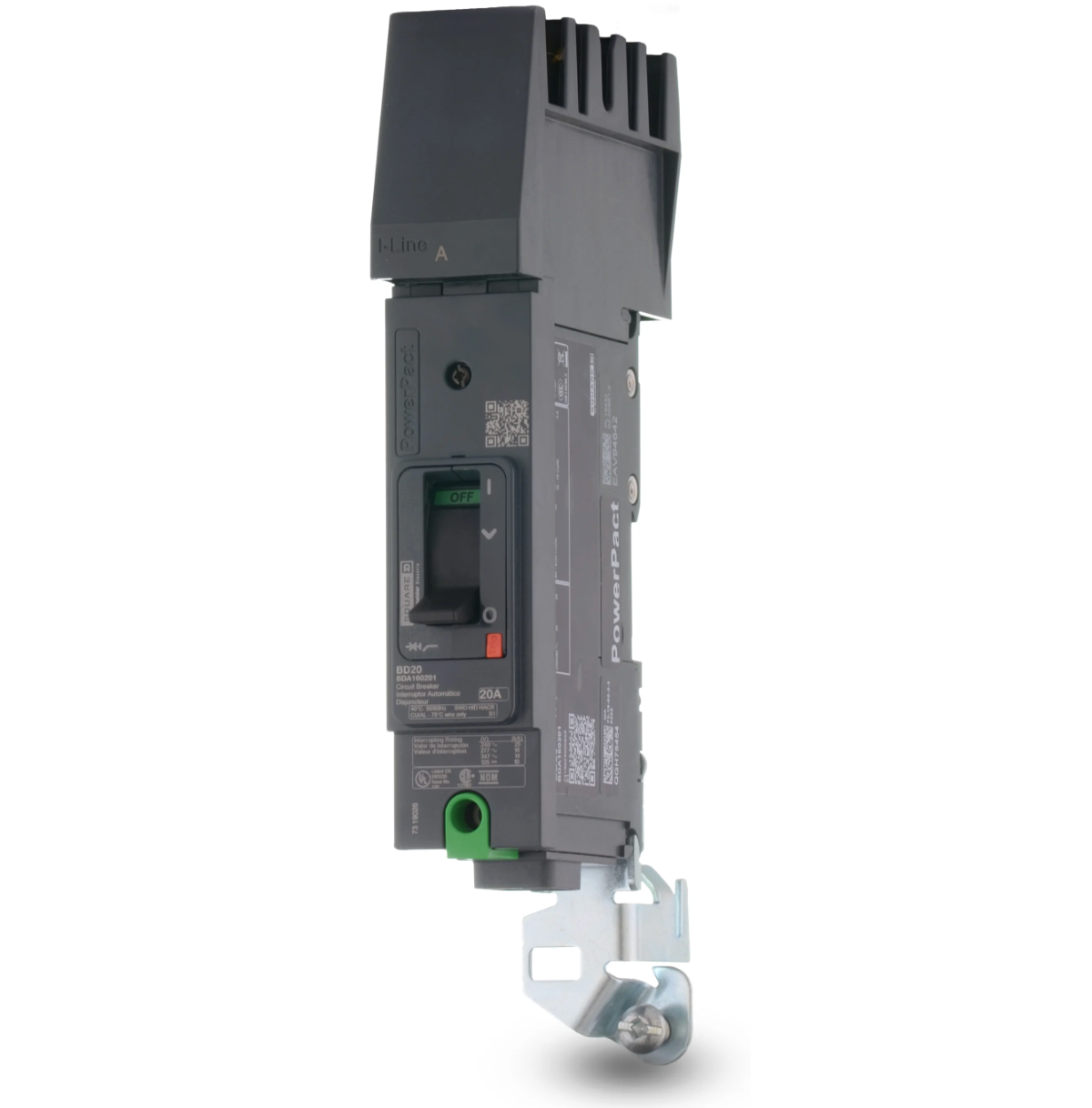

BDA160201 | Square D 20A 1-Pole PowerPacT B Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BDA160201
Description
The Square D BDA160201 by Schneider Electric is a 1-pole thermal magnetic molded case circuit breaker designed for industrial and commercial electrical distribution systems. Rated at 20 amps and 600Y/347 VAC, it provides dependable overload and short-circuit protection for single-phase applications. The breaker’s compact PowerPacT B-frame design ensures reliable performance with I-Line plug-in connectivity for quick installation and maintenance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Circuit Breaker |
| Part Number | BDA160201 |
| Subcategory | Molded Case |
| Series | PowerPacT B |
| Poles | 1 |
| Amperage | 20 A |
| Voltage Rating | 600Y/347 VAC, 125 VDC |
| Interrupting Rating | 14 kAIC @ 600Y/347 VAC |
| Connection Type | I-Line Style Plug-In |
| Protection Type | Thermal Magnetic (LI) |
| Trip Functions | Long-Time, Instantaneous |
| Mounting Type | I-Line |
| Terminal Connection | Load Side Mechanical Lug |
| Operating Temperature | -25°C to +70°C |
| Wire Range | AWG 14 – 2/0 (Aluminum/Copper) |
| Certifications | UL, CSA, CE, NOM, IEC, NEMA |
| Frame Type | BDA |
| Actuator Type | Toggle |
| Standards Compliance | RoHS, REACh, HACR |
| Weight | 1 lb |
Information About BDA160201
The BDA160201 is part of the PowerPacT B Series by Schneider Electric, known for robust molded case circuit breakers that deliver consistent performance in demanding environments. It features a thermal magnetic trip unit offering long-time and instantaneous protection, ensuring safe operation of electrical equipment. The I-Line plug-in connection simplifies mounting in electrical distribution panels while maintaining high contact reliability. Designed for use in industrial control panels and distribution equipment, this breaker meets multiple international standards including UL, CSA, CE, and IEC certifications.
Key Features:
- Thermal Magnetic Protection: Provides both long-time and instantaneous trip functions for overload and short-circuit protection.
- Compact PowerPacT Design: Optimized B-frame construction minimizes space requirements without compromising performance.
- I-Line Plug-In Connection: Enables fast and secure installation in compatible distribution panels.
- High Interrupting Capacity: Rated at 14 kAIC at 600Y/347 VAC for reliable fault current interruption.
- Wide Wire Range: Accepts wire sizes from AWG 14 to AWG 2/0, supporting aluminum or copper conductors.
- Industrial-Grade Durability: Operates in temperatures from -25°C to +70°C, suitable for harsh environments.
- Compliance and Safety: Fully certified to UL 489, CSA, CE, NOM, and IEC 60947-2 standards.
- Environmentally Responsible: Constructed without mercury or PVC for safer, eco-conscious operation.
The BDA160201 delivers the reliability and precision required for professional-grade power distribution and protection systems.
