BGA260201 | Square D 2 Pole 20A Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $818.00
- Sale price
- $818.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BGA260201
Description

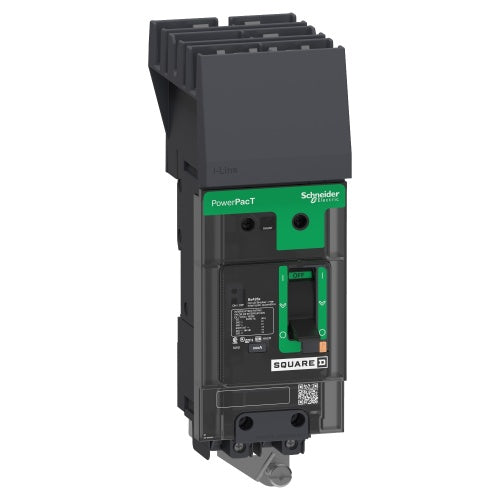

The Square D BGA260201 is a 2 Pole thermal magnetic molded case circuit breaker engineered for industrial and commercial electrical systems. It provides 20 Amps of current handling at a voltage rating of 600Y/347VAC, ensuring precise overcurrent protection. The BGA260201 is designed for I-Line panelboards and features both long time and instantaneous trip functions to safeguard circuits effectively.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Part Number | BGA260201 |
| Category | Circuit Breaker |
| Subcategory | Molded Case |
| Series | BGA |
| Amperage | 20A |
| Voltage | 600Y/347VAC |
| Poles | 2 |
| Phase | 1 |
| Frame Type | B Frame |
| Interrupting Rating | 100kA at 240VAC / 18kA at 600Y/347VAC |
| Connection Type | I-Line Style Plug-In / Mechanical Lugs |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long Time & Instantaneous |
| Terminal Connection | I-Line connection, line; Lugs, load |
| Wire Gauge | AWG 14 to AWG 2/0 AL/CU |
| Temperature Rating | -13–158°F (-25–70°C) |
| Phase Connection | AB |
| Actuator Type | Toggle |
| Mechanical Durability | 20,000 cycles IEC 947-1 |
| Electrical Durability | 10,000 cycles IEC 947-1 |

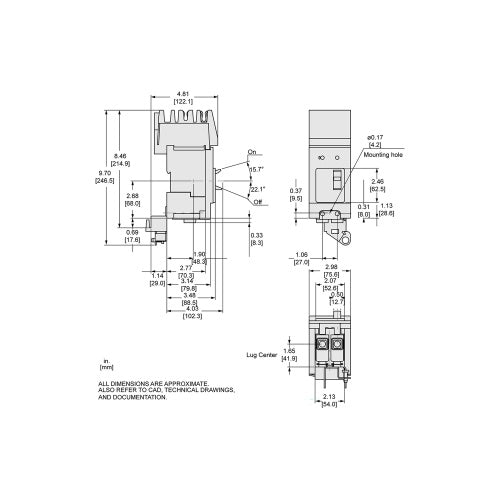

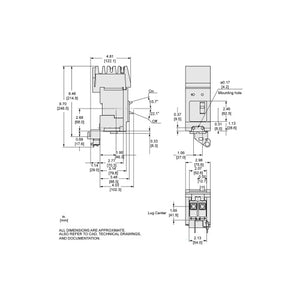

| Dimensions (HxWxD) | 5.4 x 2.1 x 3.5 in (137 x 54 x 89 mm) |
| Certifications | UL, IEC, CSA, CE, CCC, NOM, EAC |
| Weight | 2.099 lb |
Information About BGA260201
The BGA260201 is part of Square D’s PowerPact BGA series, built with a compact B-frame housing for versatile installation in distribution and control panels. It employs a plug-in I-Line connection on the line side and mechanical lugs on the load side for secure electrical integration. Designed for 2-pole, single-phase circuits, it is suitable for industrial, commercial, and utility environments requiring high interrupting capacity. The breaker features thermal magnetic trip technology and dual-break rotating contacts to reduce peak fault currents and enhance safety.
Key Features:
- Poles: 2 Pole configuration for single-phase circuit protection.
- Current Rating: 20 Amps for low to moderate load circuits.
- Voltage Rating: 600Y/347VAC operational range.
- Interrupting Capacity: 100kA at 240VAC, 18kA at 600Y/347VAC for high fault-current tolerance.
- Trip Functions: Long time and instantaneous trip for precise overcurrent response.
- Connection Type: I-Line Style plug-in on line side with mechanical lugs on load side.
- Wire Compatibility: Supports AWG 14 to AWG 2/0 Aluminum/Copper.
- Standards Compliance: CE, GB, UL, EN/IEC, NMX, NEMA, CSA, CCC, EAC, NOM, RoHS.
The BGA260201 delivers the reliability and precision required for safe and efficient industrial and commercial circuit protection.
