DS-SFP-FC4G-SW | Cisco Optical Transceiver Module
- Regular price
- $60.00
- Sale price
- $60.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: DS-SFP-FC4G-SW
Description

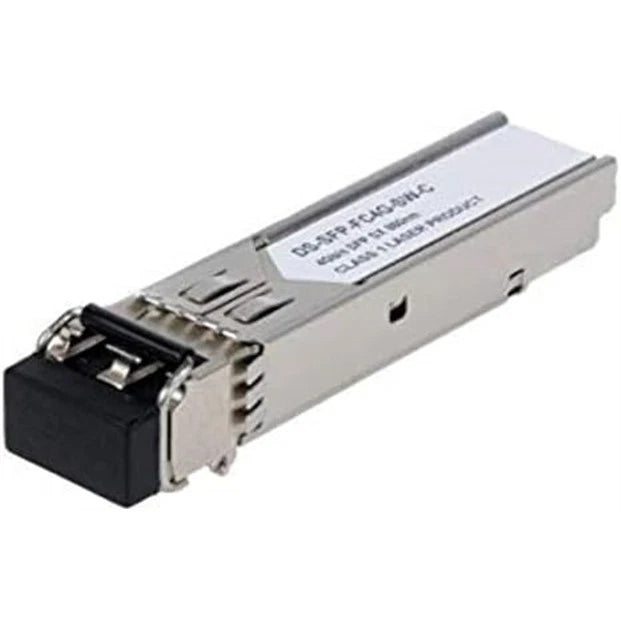

The DS-SFP-FC4G-SW is a Cisco 4 Gbps Fibre Channel shortwave SFP transceiver module. It supports data rates up to 4.25 Gbps over multimode fiber (MMF) with a typical reach of up to 500 meters, making it ideal for Fibre Channel connectivity in SAN environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | Telecommunications |
| Part Number | DS-SFP-FC4G-SW |
| Subcatecory |
Telecom Switcher
|
| Form Factor | SFP |
| Wavelength | 850 nm |
| Max Distance | 500m on OM2 |
| Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -15 dBm |
| Connector | LC Duplex |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
| Data Rate | 4.25 Gb/s |
| Fiber Type | MMF |
| Extinction Ratio | > 5 dB |
| Receiver Overload | > 0 dBm |
| Digital Diagnostic Monitoring | Yes |
| Weight | 0.03 kgs |
Information About DS-SFP-FC4G-SW
The DS-SFP-FC4G-SW is a high-performance, hot-swappable transceiver module designed by Cisco to provide reliable Fibre Channel connectivity for storage area network (SAN) applications.
Key Features:
- Type: Fibre Channel SFP (Small Form-factor Pluggable) Transceiver Module
- Series: Cisco 4-Gbps Fibre Channel Transceivers
- Category: Transceiver Module
- Subcategory: Fibre Channel Shortwave (SW) SFP
- Data Rate: 4.25 Gbps (also supports 2.125 Gbps and 1.0625 Gbps backward compatibility)
- Wavelength: 850 nm
- Reach/Distance: Up to 150 meters on OM3 multimode fiber (50/125 µm), shorter distances on OM2/OM1 fibers
- Connector Type: LC duplex connector
- Interface: Optical Fibre
- Compatibility: Compatible with a wide range of Cisco MDS Series switches and other compatible Cisco SAN equipment
- Hot-swappable: Yes
- Digital Optical Monitoring (DOM): Supported
- Temperature Range: 0°C to 70°C (standard operating temperature)
- Power Consumption: Low power consumption design
- Applications: Optimized for short-distance Fibre Channel connections in data centers and enterprise SAN environments
The DS-SFP-FC4G-SW offers flexible, cost-effective shortwave Fibre Channel connectivity, making it an excellent choice for organizations needing reliable performance for SAN infrastructure within short to medium distances.
