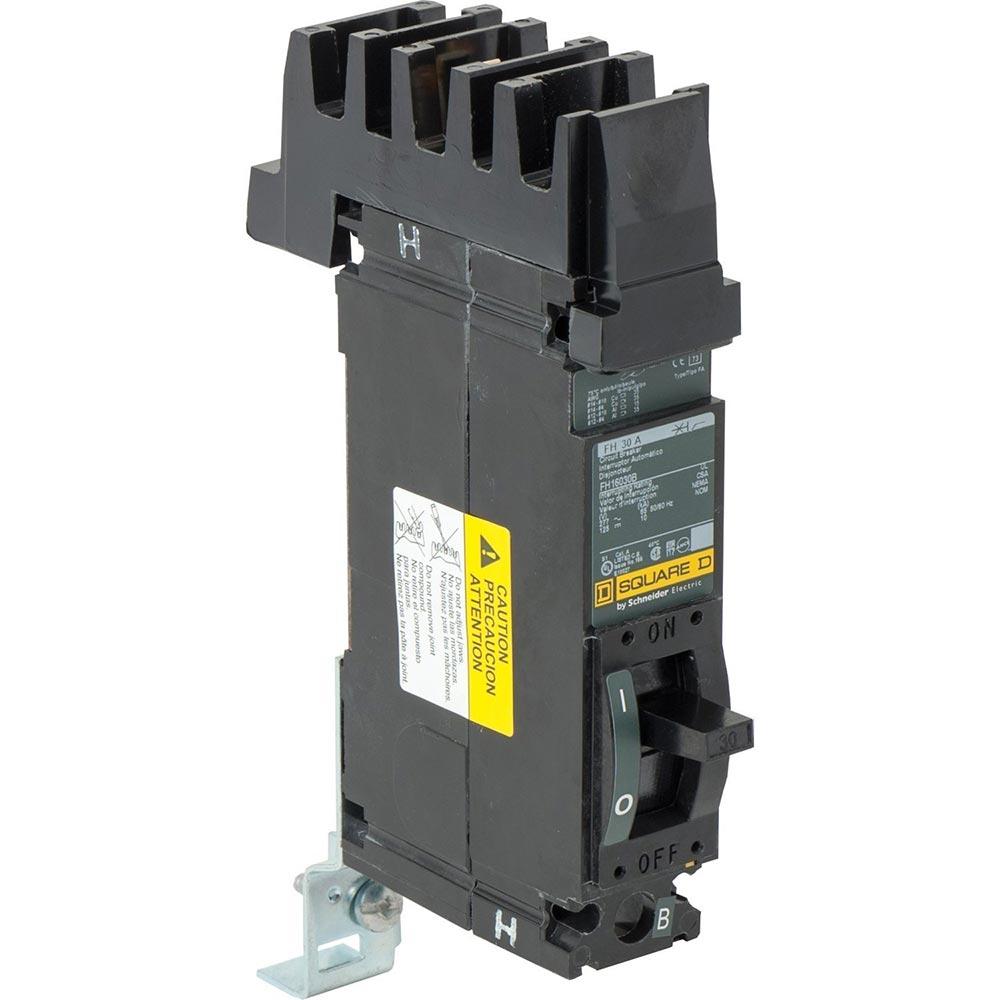

FH16030B | Square D 1-Pole 30A 277V I-Line Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH16030B
Description
The Square D FH16030B is a 1-pole molded case circuit breaker designed for safe and efficient protection of electrical circuits. Manufactured by Schneider Electric, this thermal-magnetic breaker supports a 30-amp current rating and operates at 277 VAC, providing dependable overload and short-circuit protection. With its I-Line plug-in mounting, the FH16030B ensures secure installation and quick replacement in industrial and commercial distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Circuit Breaker |
| Part Number | FH16030B |
| Subcategory | Molded Case |
| Series | FH |
| Type | I-Line Thermal Magnetic |
| Poles | 1 |
| Phase | 1 |
| Voltage Rating | 277 VAC |
| Current Rating | 30 A |
| Interrupt Rating (AIC) | 25 kA @ 240 V |
| Trip Functions | Long-Time and Instantaneous |
| Trip Unit Technology | Thermal-Magnetic |
| Mounting Type | I-Line Plug-In |
| Frame Type | F-Frame |
| Connection Type | I-Line connection line / Load side lug |
| Certifications | UL Listed, CSA Certified, RoHS Compliant |
| Temperature Rating | 40°C |
| Magnetic Tripping Current | 600 A |
| Magnetic Hold Current | 275 A |
| Dimensions (H x W x D) | 6.4 x 1.5 x 4.13 in |
| Country of Origin | Mexico |
| Weight | 0.5 lb |
Information About FH16030B
The FH16030B is part of Square D’s FH Series within the I-Line family of molded case circuit breakers, engineered for high-performance electrical distribution. It features a thermal-magnetic trip unit offering both long-time and instantaneous trip functions to protect equipment and wiring. Designed for 1-phase, 1-pole applications, the breaker includes an I-Line style plug-in connection for simplified mounting and maintenance. Certified to UL and CSA standards, the FH16030B provides robust and compliant protection for a wide range of electrical systems.
Key Features:
- Series Design: Part of the Square D FH Series for reliable molded case protection.
- Thermal-Magnetic Trip Unit: Ensures accurate response to overloads and short-circuit events.
- Current and Voltage Rating: 30 A, 277 VAC for standard branch circuit protection.
- Interrupting Capacity: Rated at 25 kAIC at 240 V for dependable fault clearing.
- Mounting Method: I-Line plug-in connection for quick installation and secure fit.
- Certifications: UL and CSA approved to meet safety and performance standards.
- Compact Frame: F-frame design optimizes space in panel installations.
- Temperature Rating: Operates efficiently up to 40°C ambient temperature.
The FH16030B delivers the reliability and precision required for industrial and commercial power distribution protection.
