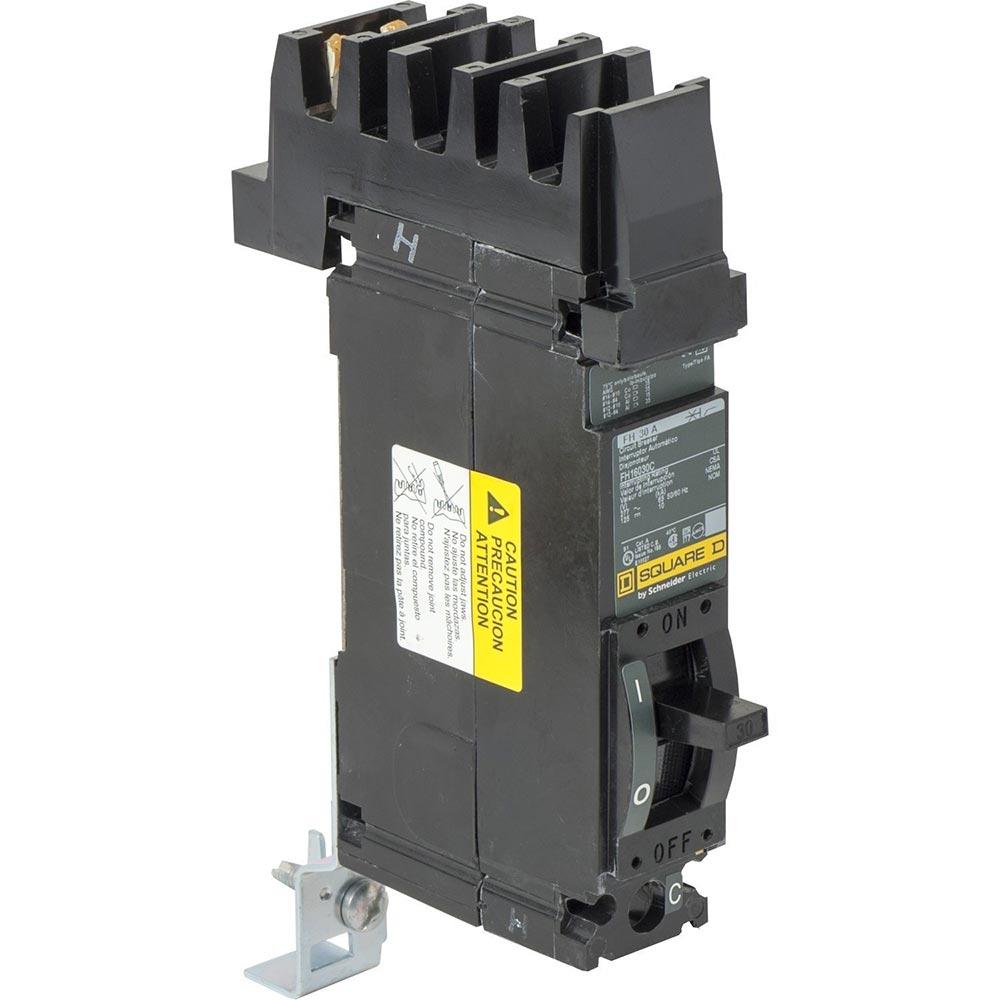

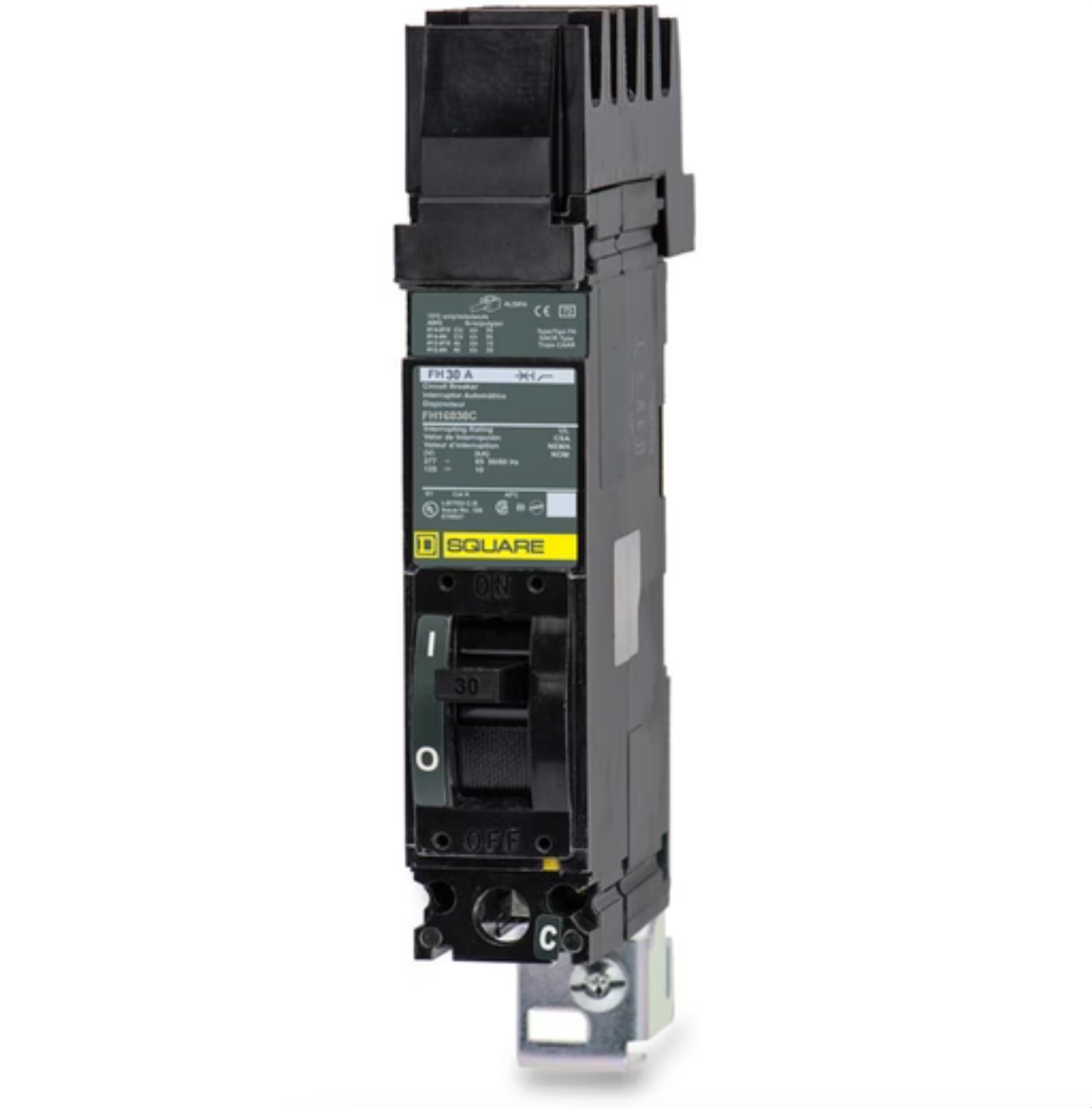

FH16030C | Square D 30A 1-Pole 277V I-Line Plug-In Thermal Magnetic Circuit Breaker
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH16030C
Description
The Square D FH16030C is a single-pole molded case circuit breaker designed to deliver dependable overcurrent and short-circuit protection in commercial and industrial applications. With a current rating of 30 amps and a voltage rating of 277 VAC, this unit ensures stable operation in demanding electrical systems. The FH16030C features a high interrupting capacity of 65 kAIC at 277 VAC and a robust thermal magnetic trip mechanism for precise circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | FH16030C |
| Subcategory | Molded Case Circuit Breakers |
| Series | FH |
| Frame Type | F-Frame |
| Poles | 1 |
| Phase | 1 |
| Amperage Rating | 30 A |
| Voltage Rating | 277 VAC |
| Interrupting Rating | 65 kA @ 277 VAC, 10 kA @ 125 VDC |
| Trip Unit Type | Thermal Magnetic |
| Functions | Long-Time and Instantaneous Trip |
| Connection Type | I-Line Style Plug-In |
| Mounting Type | I-Line |
| Wire Range | #14–#4 AWG (Copper/Aluminum) |
| Frequency | 50/60 Hz |
| Magnetic Hold Current | 275 A |
| Operating Temperature | 40 °C |
| Certifications | UL Listed, CSA Certified |
| Dimensions (HxWxD) | 6.4 x 1.5 x 4.13 in |
| Weight | 0.45 lb (0.2 kg) |
Information About FH16030C
The FH16030C is part of the Square D™ I-Line FH series, known for its compact molded case design and reliable performance in power distribution networks. It incorporates a thermal-magnetic trip unit that combines both long-time and instantaneous trip functions for effective overload and fault protection. The breaker’s I-Line style plug-in connection allows for simplified installation and maintenance in compatible panelboards. Built with durable materials and certified to UL and CSA standards, the FH16030C ensures consistent protection across industrial and commercial electrical systems.
Key Features:
- Thermal-Magnetic Trip Unit: Provides dual protection against overloads and short circuits.
- High Interrupting Capacity: Rated 65kA at 277VAC for enhanced fault current tolerance.
- I-Line Style Plug-In Mounting: Ensures fast installation and secure connection in I-Line panelboards.
- Compact F-Frame Design: Space-saving construction ideal for high-density electrical systems.
- Single-Pole Configuration: Optimized for 1-phase circuits with 30A rated current.
- Durable Construction: Molded case housing provides mechanical strength and electrical insulation.
Certified Safety Standards: UL and CSA approved for industrial-grade reliability.
The FH16030C delivers the reliability and precision required for critical circuit protection in commercial and industrial power distribution systems.
