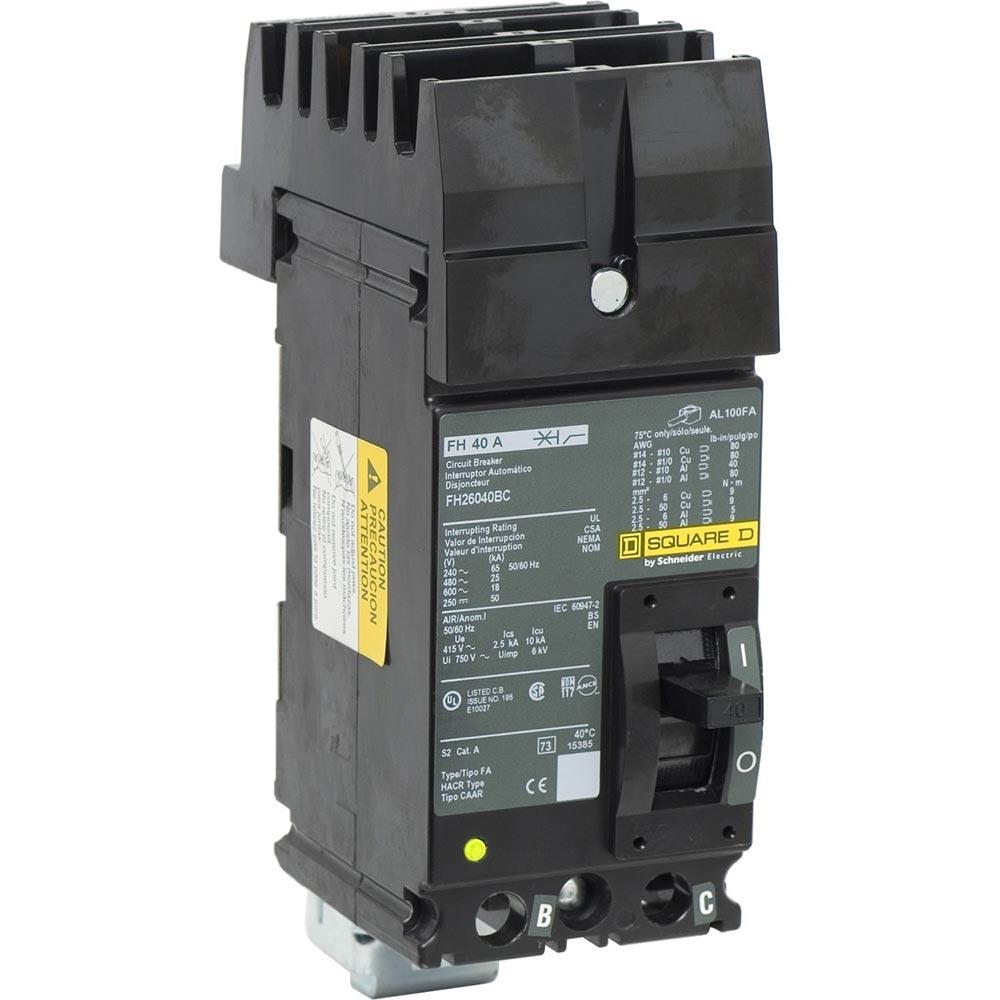

FH26040BC | Square D 40A 2-Pole 600VAC I-Line Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH26040BC
Description
The Square D FH26040BC is a 2-pole thermal magnetic molded case circuit breaker designed for efficient protection in electrical distribution systems. Rated at 40 amps and 600VAC/250VDC, it provides a reliable solution for overload and short-circuit protection. With an interrupting capacity of 25kA at 480V and an I-Line plug-in connection, this breaker ensures secure and simple integration into commercial and industrial panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | FH26040BC |
| Subcategory | Molded Case Circuit Breakers |
| Series | FH / I-Line |
| Amperage | 40 Amps |
| Voltage Rating | 600VAC / 250VDC |
| Poles | 2 |
| Phase | Single Phase |
| Interrupting Rating | 25kAIC @ 480V |
| Frame Type | F Frame |
| Trip Unit | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Connection Type | I-Line Style Plug-In |
| Terminal Connection | Line: I-Line / Load: Lug |
| Wire Size | 14 to 1/0 AWG AL/CU |
| Certifications | UL, CSA, NOM, IEC, CCC, CE |
| Temperature Rating | 40°C |
| Dimensions (HxWxD) | 6.4 x 3 x 4.13 in (162.6 x 76.2 x 104.9 mm) |
| Country of Origin | Mexico |
| Weight | 6 lbs (2.72 kg) |
Information About FH26040BC
The FH26040BC is part of Square D’s FH I-Line series, known for its durability and plug-in convenience in power distribution applications. It uses a thermal-magnetic trip mechanism, combining long-time overload and instantaneous short-circuit protection in a compact molded case frame. The breaker’s I-Line style connection enables quick installation and solid alignment within compatible panels, reducing wiring and maintenance time. Certified by UL, CSA, NOM, IEC, CCC, and CE, it meets global standards for industrial safety and performance.
Key Features:
- Current Rating: 40 Amps – Provides dependable overload protection for standard circuits.
- Voltage Rating: 600VAC / 250VDC – Suitable for both AC and DC applications.
- Interrupting Capacity: 25kA @ 480V – Handles high fault currents safely and efficiently.
- Connection Type: I-Line Style Plug-In – Simplifies installation in I-Line panel systems.
- Trip Unit Type: Thermal Magnetic (LI) – Ensures reliable long-time and instantaneous protection.
- Frame Type: F Frame – Compact molded design for space-constrained enclosures.
- Certifications: UL, CSA, NOM, IEC, CCC, CE – Meets major international safety standards.
- Operating Temperature: 40°C Rated – Performs consistently under standard industrial conditions.
The FH26040BC delivers the reliability and precision required for modern power distribution and protection systems.
