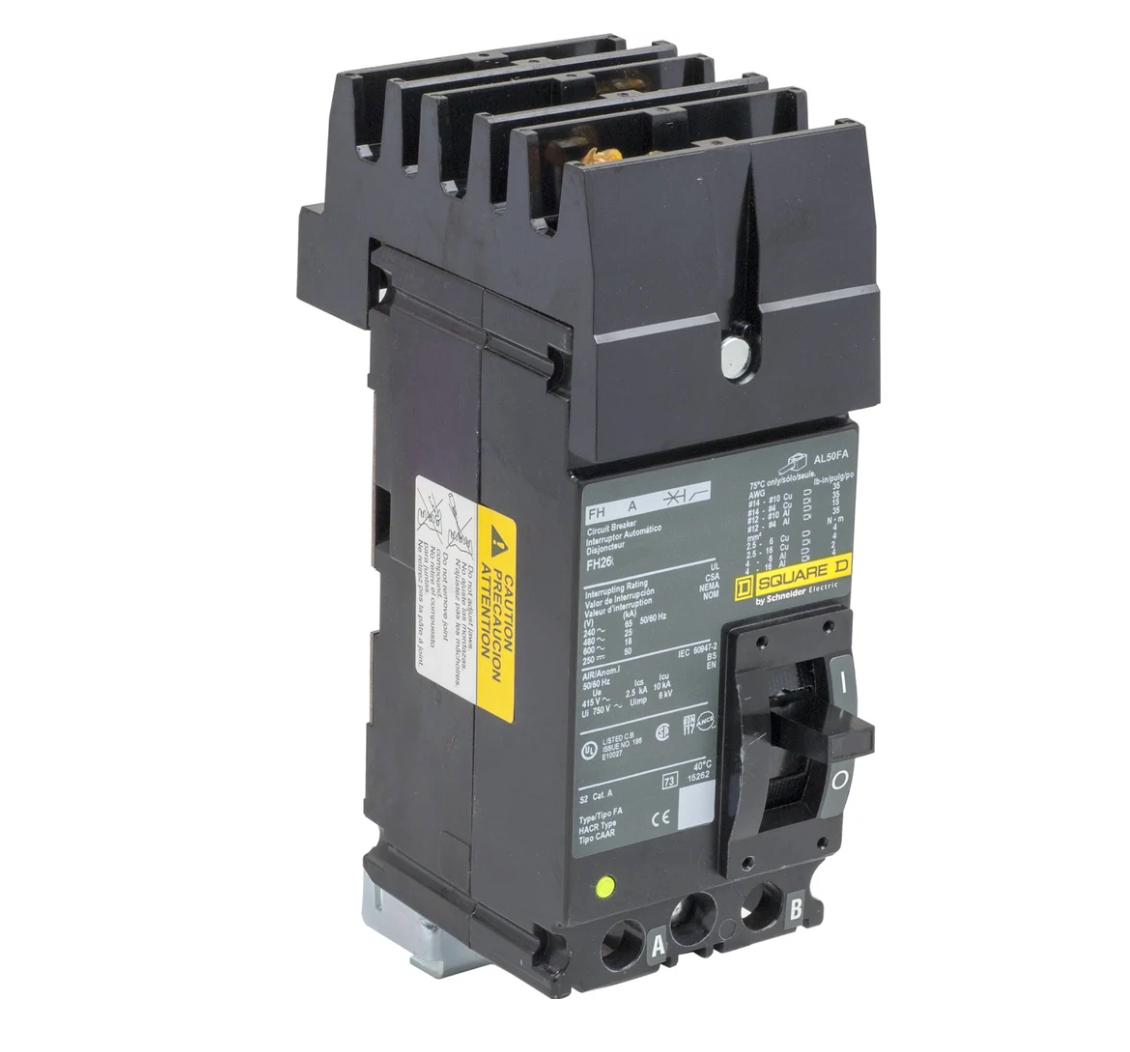

FH26060AB | Square D 2 Pole 60A Thermal Magnetic Circuit Breaker
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FH26060AB
Description
The Square D FH26060AB is a 2 Pole thermal magnetic molded case circuit breaker designed for industrial and commercial electrical systems. It provides reliable overcurrent protection with a 60 Amp current rating and supports voltages up to 600VAC and 250VDC. The FH26060AB is ideal for safeguarding circuits in I-Line panelboards while delivering precise long time and instantaneous trip functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Part Number | FH26060AB |
| Category | Circuit Breaker |
| Subcategory | Molded Case |
| Series | FH |
| Amperage | 60A |
| Voltage | 600VAC / 250VDC |
| Poles | 2 |
| Phase | 1 |
| Frame Type | F Frame |
| Interrupting Rating | 25kAIC@480V |
| Connection Type | I-Line Style Plug-In |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long Time & Instantaneous |
| Terminal Connection | Line and Load Lug |
| Wire Gauge | 14 to 1/0 AWG AL/CU |
| Temperature Rating | -13–158°F (-25–70°C) |
| Certifications | UL, CSA, NOM, IEC, CCC, CE |
| Dimensions (D x W x H) | 4.13 x 3 x 6.4 in (104.90 x 76.20 x 162.56 mm) |
| Weight | 6 lb |
Information About FH26060AB
The FH26060AB is part of Square D’s FH series of molded case circuit breakers, built with a durable F-frame housing for heavy-duty applications. It features a plug-in I-Line style connection compatible with a wide range of panelboards and switchboards. Designed for single-phase systems, it is suitable for industrial, commercial, and utility environments requiring robust protection. The breaker incorporates thermal magnetic technology to detect and respond to both overloads and short-circuits efficiently.
Key Features:
- Poles: 2 Pole configuration for single-phase circuit protection.
- Current Rating: 60 Amps for handling moderate load circuits.
- Voltage Rating: Supports up to 600VAC and 250VDC.
- Interrupting Capacity: 25kAIC@480V for high fault-current environments.
- Trip Functions: Long time and instantaneous trip for accurate overcurrent protection.
- Connection Type: I-Line Style plug-in for secure and easy panel integration.
- Wire Compatibility: Accepts 14 to 1/0 AWG AL/CU conductors.
- Approvals: Certified by UL, CSA, NOM, IEC, CCC, and CE.
The FH26060AB delivers the reliability and precision required for industrial and commercial circuit protection applications.
