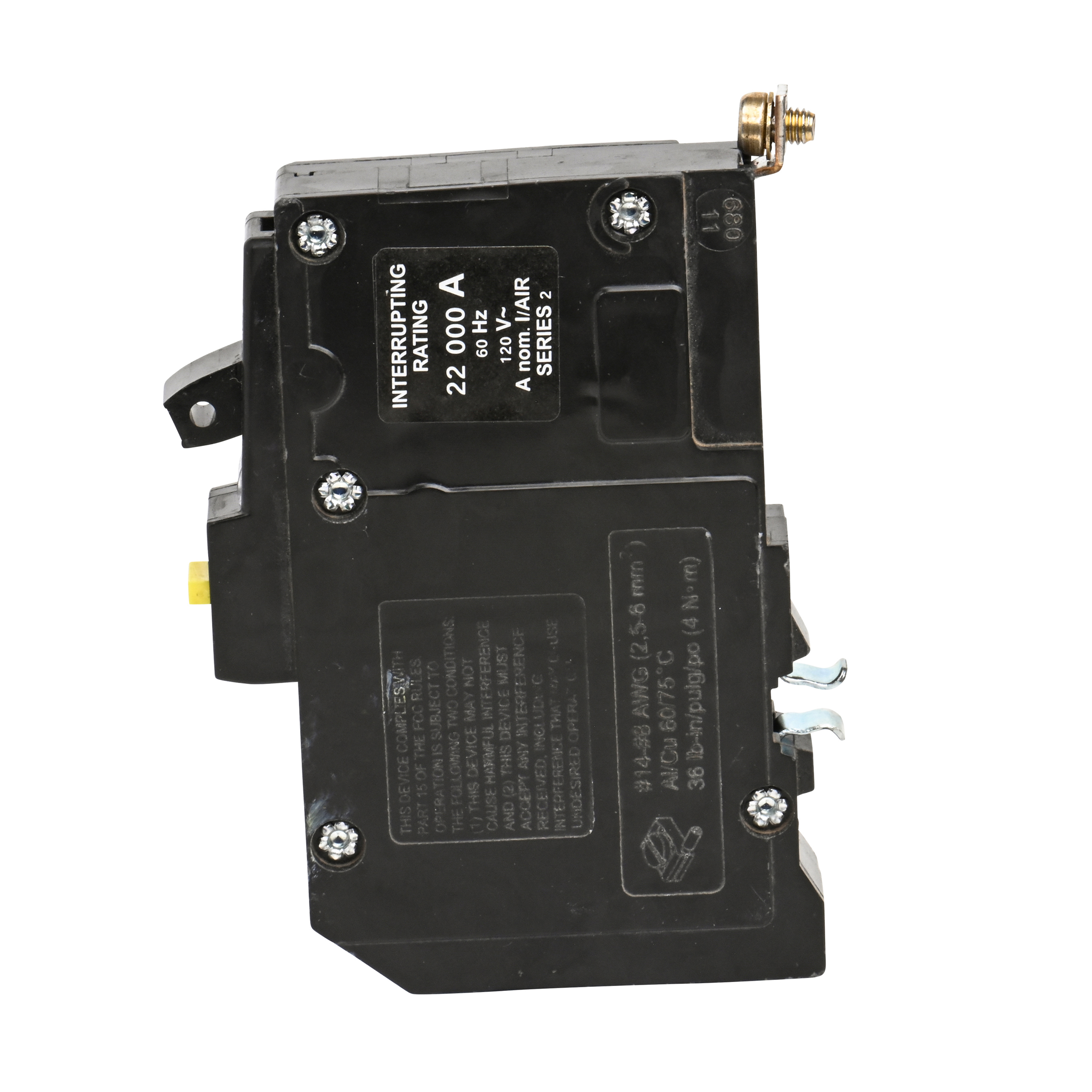

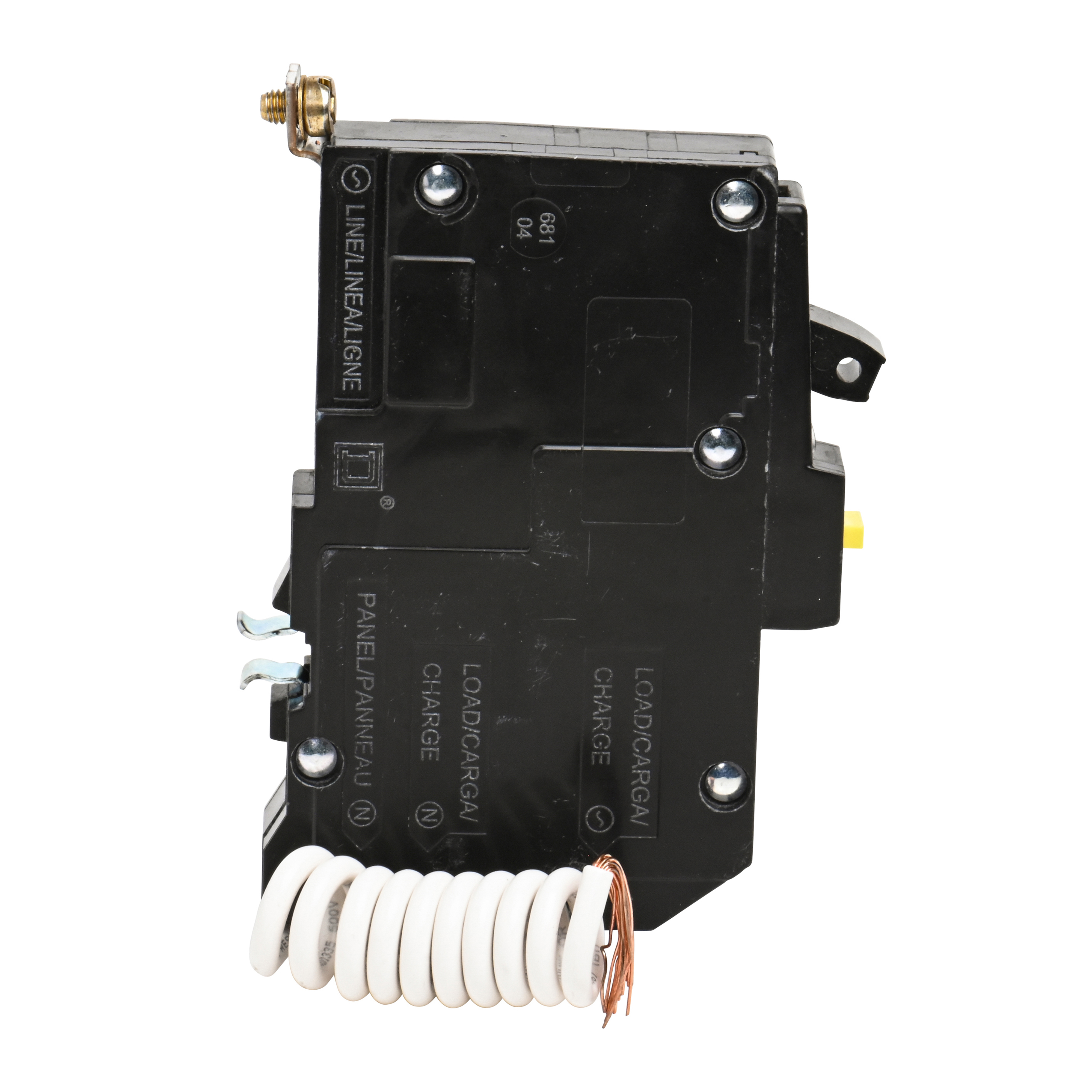

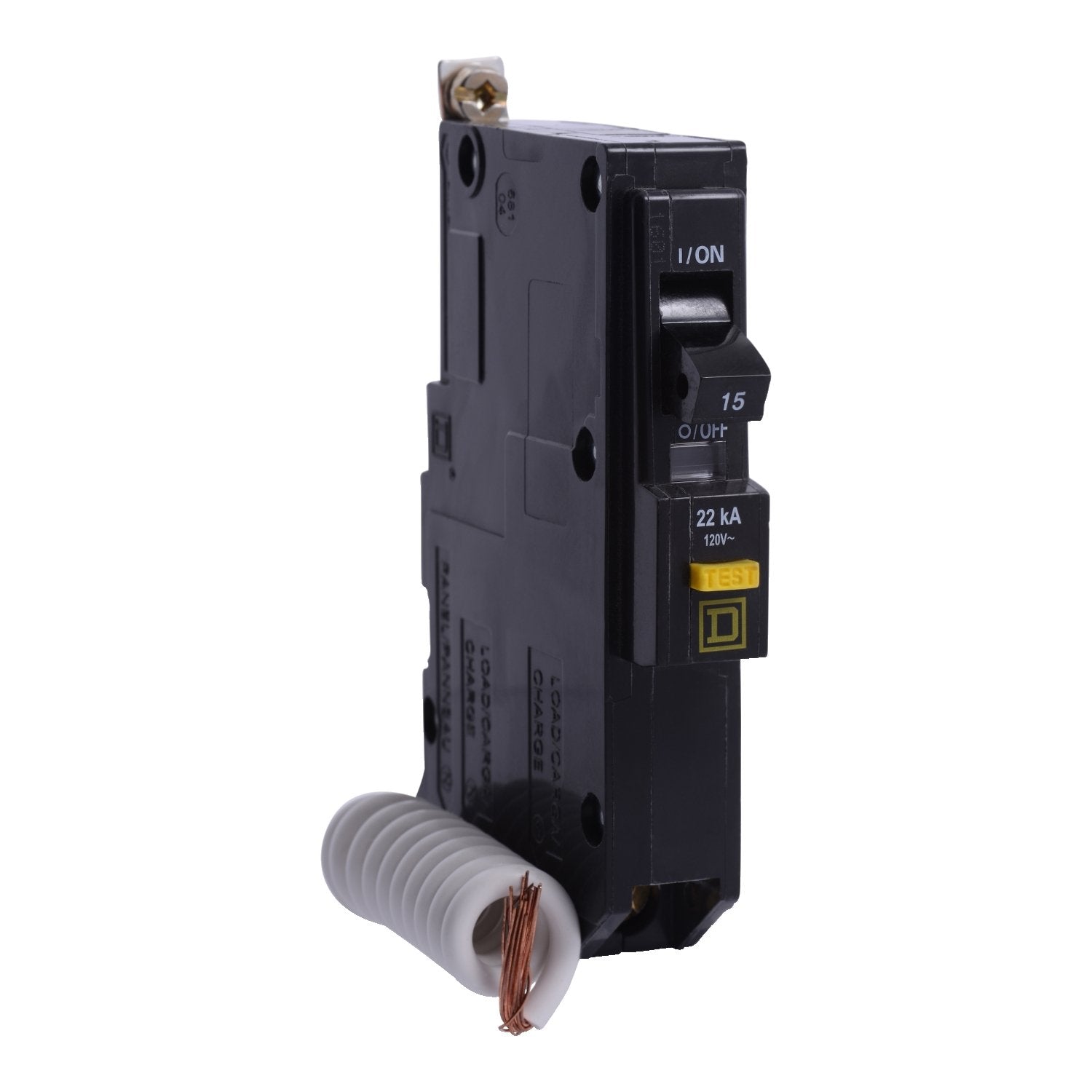

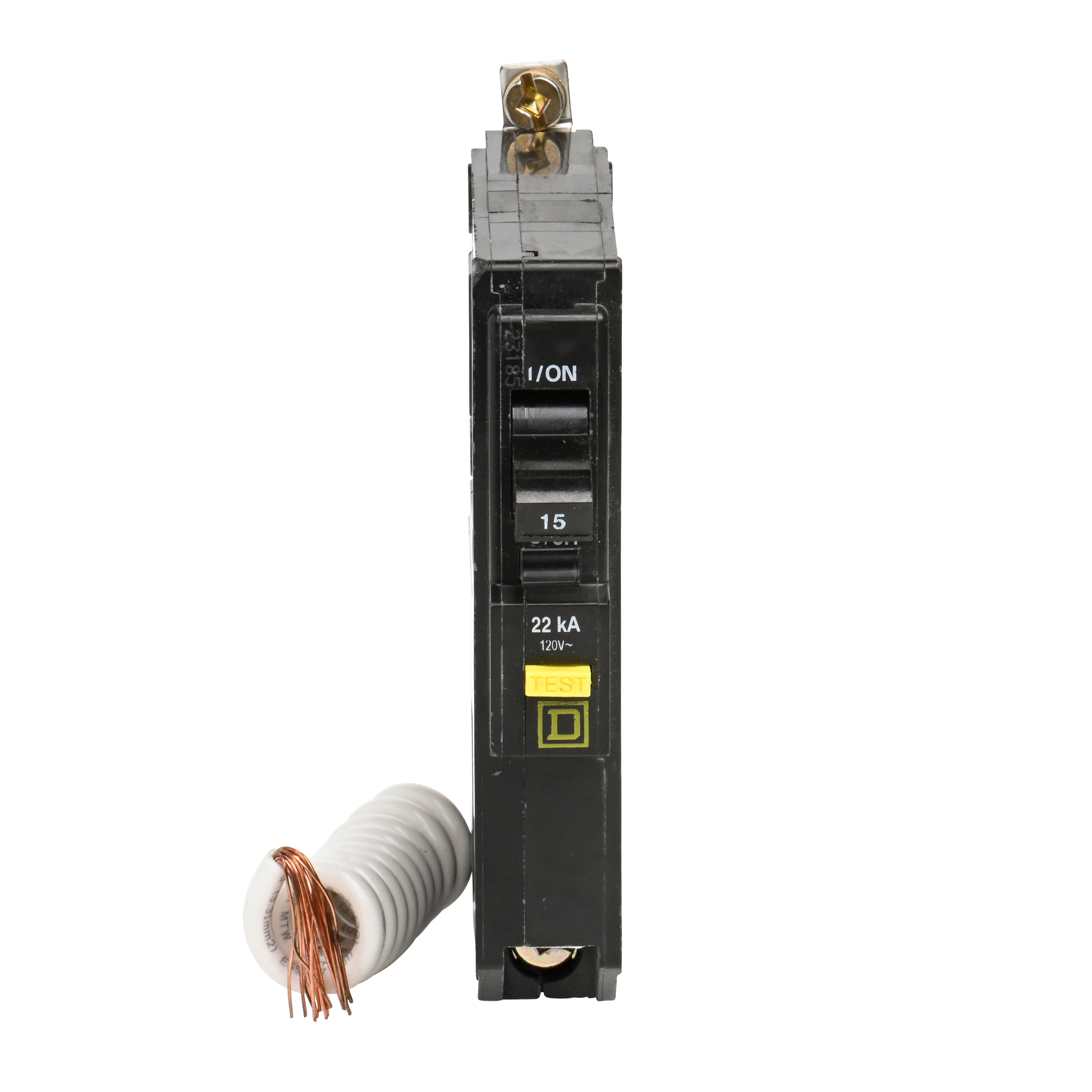

QOB115VHGFI | Square D 15A 1-Pole 120V GFCI Bolt-On Circuit Breaker 22kAIC
- Regular price
- $278.00
- Sale price
- $278.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB115VHGFI
Description
The Square D QOB115VHGFI is a 1-pole miniature ground fault circuit breaker designed for reliable protection in 120VAC systems. Rated at 15 amps with an interrupting capacity of 22kAIC, this breaker ensures effective overload, short-circuit, and Class A (6mA) ground-fault protection. Its bolt-on design and thermal magnetic trip unit make it suitable for residential, commercial, and light industrial applications requiring dependable personnel protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | QOB115VHGFI |
| Subcategory | Ground Fault Circuit Breaker |
| Series | QOB |
| Amperage Rating | 15 A |
| Voltage Rating | 120 VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Capacity | 22kAIC at 120 VAC |
| Trip Type | Thermal Magnetic |
| Protection Type | LI - Long-Time and Instantaneous Trip |
| Ground Fault Class | Class A (6mA) |
| Terminal Connection | Pressure Plate |
| Wire Size | AWG 14–8 Cu / AWG 12–8 Al |
| Standards | UL Listed, CSA Certified, RoHS, REACh |
| Material | Fiberglass Filled Thermoset |
| Operating Temperature | 40 °C |
| For Use With | QO and NQ Panelboards |
| Dimensions (H x W x D) | 4.12 x 0.75 x 2.91 in |
| Weight | 0.33 lb (approx.) |
Information About QOB115VHGFI
The QOB115VHGFI is part of the Square D QOB Series, known for its precision-engineered bolt-on circuit breakers that provide robust performance and long-term reliability. Constructed from fiberglass-filled thermoset material, it offers superior thermal resistance and durability under demanding electrical conditions. Designed for use in QO and NQ panelboards, this breaker supports copper and aluminum conductors for flexible installation. It incorporates both thermal-magnetic trip technology for overload and short-circuit protection, and Class A ground-fault detection for enhanced electrical safety.
Key Features:
- Rated Current: 15 Amps — Ensures stable circuit performance under standard load conditions.
- Voltage Rating: 120 VAC — Optimized for single-phase low-voltage systems.
- Interrupting Capacity: 22kAIC — Provides high short-circuit withstand capability for enhanced safety.
- Ground Fault Protection: Class A (6mA) — Detects and interrupts low-level current leakage to protect personnel.
- Trip Function: Thermal Magnetic (LI) — Offers long-time and instantaneous trip features for overload and short-circuit events.
- Connection Type: Bolt-On, Pressure Plate — Enables secure installation and consistent electrical contact.
- Compatibility: QO and NQ Panelboards — Designed for integration into standard Square D systems.
- Certifications: UL Listed and CSA Certified — Meets rigorous North American safety and performance standards.
The QOB115VHGFI delivers the reliability and precision required for safe, efficient circuit protection in commercial and residential installations.
