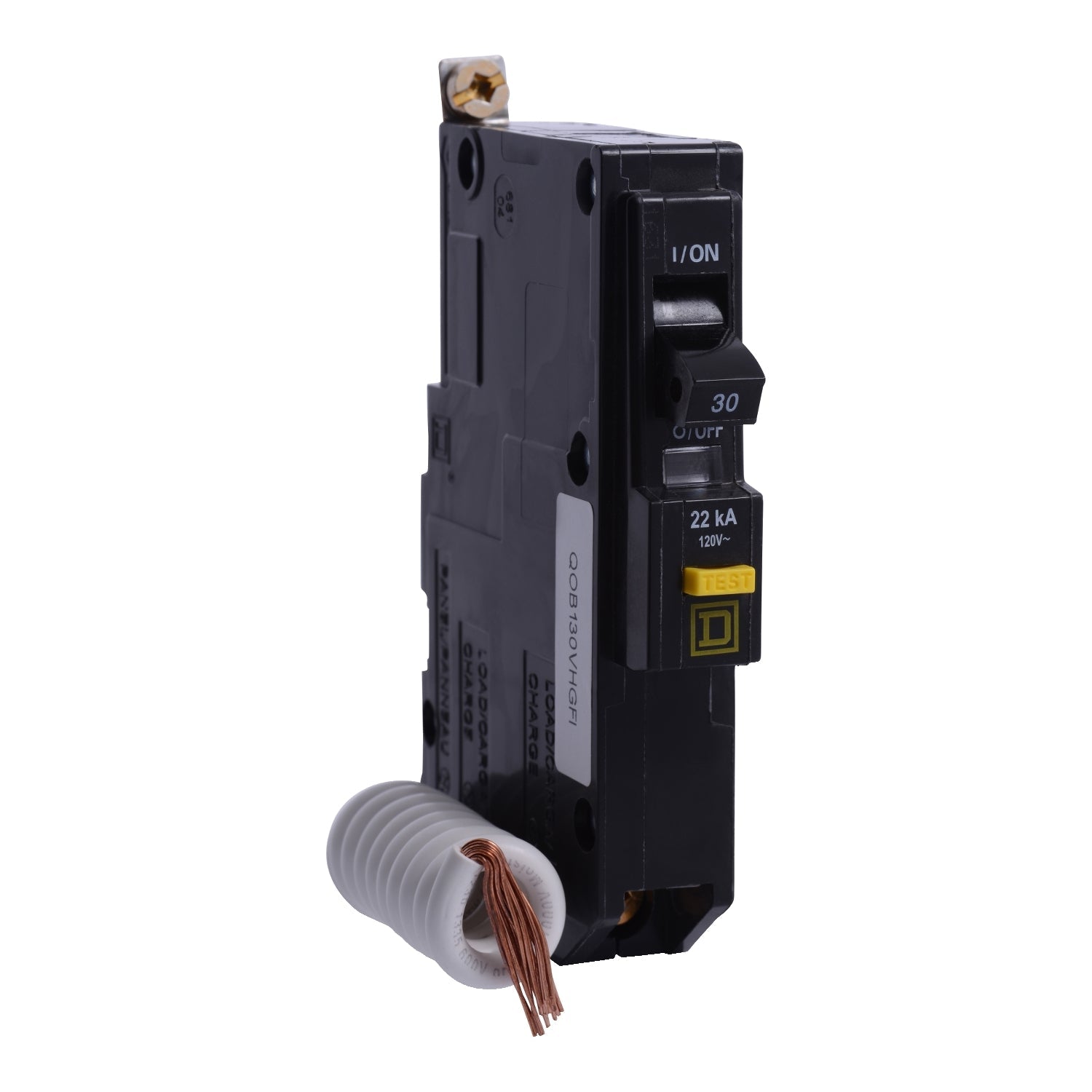

QOB130VHGFI | Square D 1-Pole 30A 120V Bolt-On Ground Fault Circuit Breaker
- Regular price
- $362.00
- Sale price
- $362.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QOB130VHGFI
Description
The Square D QOB130VHGFI is a 1-pole, 30-amp, 120V thermal magnetic circuit breaker with integrated Class A ground fault protection (6mA). Designed for residential and light commercial applications, it provides overload, short-circuit, and personnel ground-fault protection. The QOB130VHGFI features a bolt-on connection and a 22kA interrupting capacity, ensuring reliable operation and enhanced safety in panelboard installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | QOB130VHGFI |
| Subcategory | Ground Fault Circuit Breaker |
| Series | QOB |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Voltage Rating | 120 VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 22kA @ 120V |
| Protection Type | Thermal Magnetic, Ground Fault (Class A 6mA) |
| Trip Functions | Long-Time, Instantaneous |
| Mounting Type | Bolt-On |
| Connection Type | Pressure Plate (Cu/Al) |
| Wire Size | #14–#8 AWG (Cu), #12–#8 AWG (Al) |
| Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Operating Temperature | 40 °C |
| Standards | UL 489, CSA 22.2 No. 5, NOM/ANCE, Federal Spec W-C-375B/GEN |
| Country of Origin | Mexico |
| Weight | 0.55 lb |
Information About QOB130VHGFI
The QOB130VHGFI is part of the Square D QOB Series—a trusted line of bolt-on miniature circuit breakers by Schneider Electric. It combines thermal-magnetic trip technology with integrated ground fault protection, making it ideal for branch circuit protection in sensitive environments. Engineered for use in QO and QOB load centers and panelboards, this breaker supports #14–#8 AWG Cu/Al conductors and meets major global safety certifications, including UL 489 and CSA 22.2 No. 5. Its durable molded case and high interrupting rating ensure dependable protection in demanding electrical systems.
Key Features:
- Current Rating: 30 Amps – Supports standard residential and light commercial branch circuits.
- Voltage Rating: 120V AC – Suitable for single-phase, low-voltage applications.
- Interrupting Capacity: 22kA @ 120V – Provides robust fault protection in high-current environments.
- Protection Type: Thermal-Magnetic with Ground Fault – Prevents overload, short-circuit, and personnel shock hazards.
- Connection Type: Bolt-On (Pressure Plate) – Ensures a secure and reliable panelboard connection.
- Trip Functions: LI (Long-Time and Instantaneous) – Offers accurate, responsive protection performance.
- Certifications: UL Listed, CSA Certified, RoHS Compliant – Meets strict international electrical safety standards.
- Operating Temperature: 40°C Rated – Performs reliably in typical ambient installation conditions.
The QOB130VHGFI delivers the reliability and precision required for safe, efficient circuit and personnel protection in modern electrical installations.
