DCS vs PLC: the difference is the server, not the controller

I sat through a meeting last year where a plant team spent the better part of an hour arguing DCS vs PLC, and nobody raised the thing that actually decided it. They compared scan times. Somebody priced analog cards both ways. What nobody asked was whether they wanted a vendor's server sitting in the middle of their control system for the next fifteen years.

That is the real split. Below is where the line sits now that both sides run on the same hardware, and the I/O count that settles most of these arguments. Then what each route bills you for three years later, when something needs replacing.

The hardware stopped being the answer

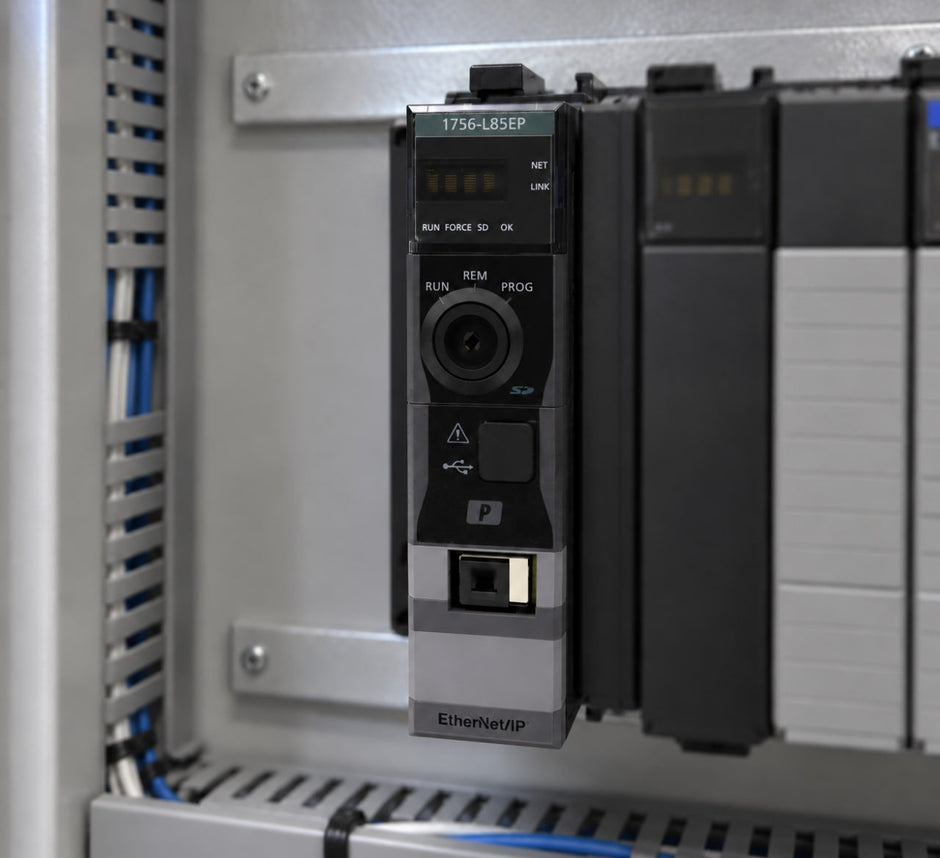

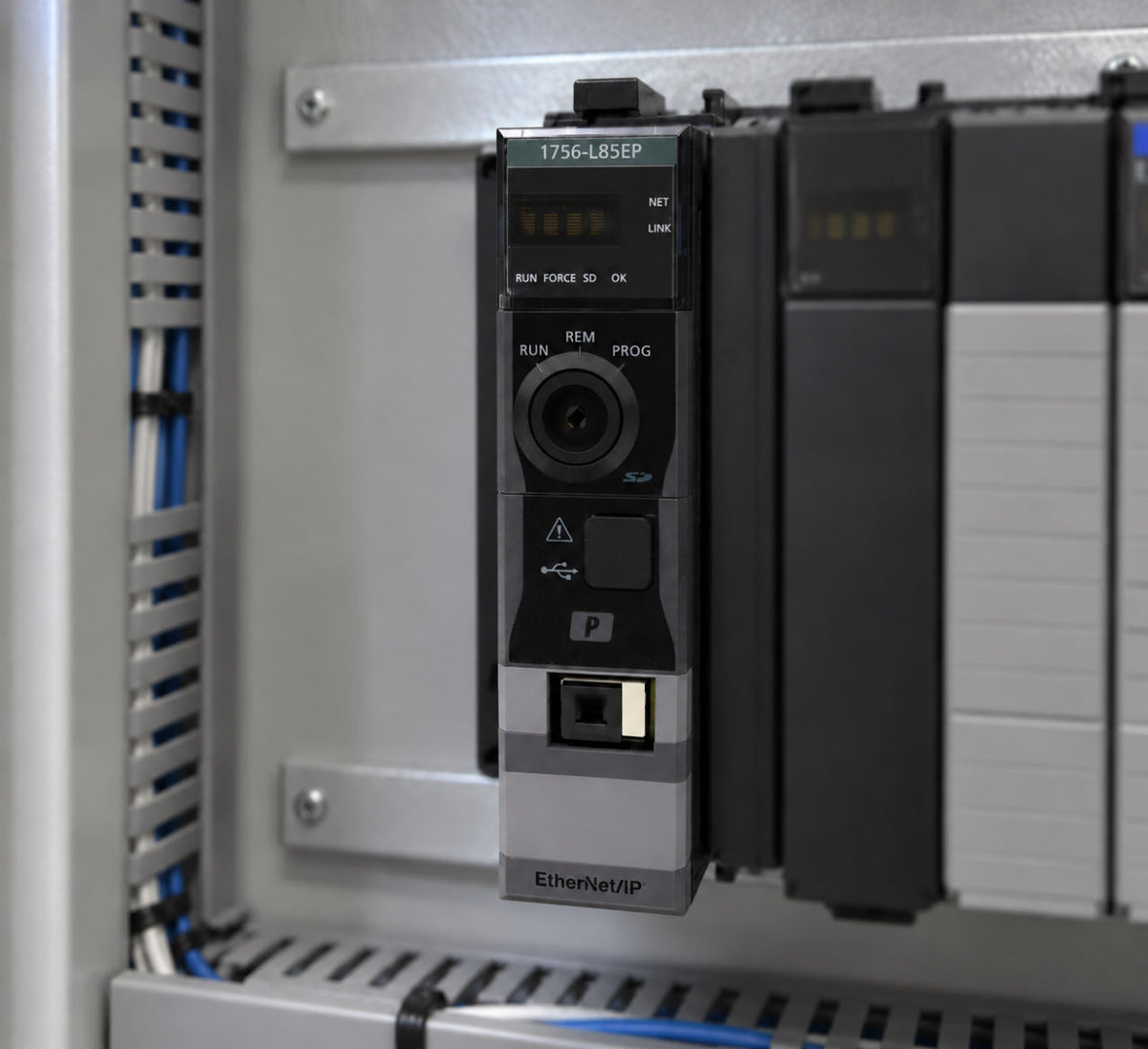

Rockwell sells a distributed control system that runs on ControlLogix. Same 1756 chassis, same backplane, same modules you would drop into a machine-control rack. Rockwell describes the process controllers in that family, 1756-L81EP through 1756-L85EP, as an extension of the Logix 5000 controller family. What they add is a default process tasking model and a set of dedicated process instructions. Firmware and a library. That is the difference.

So when someone tells you a DCS is more capable hardware, ask which part. Analog handling, PID at scale, controller redundancy, batch: every one of those was a genuine DCS advantage once. That was back when a PLC was still what it got built to be in 1968, a solid-state replacement for a wall of relays. A current PLC platform does all of it. Check the task rates in Rockwell's own process sizing while you are in there, too: control strategies get scheduled between 100 and 1000 ms. Nobody runs process loops at the millisecond scan people like to quote in these arguments.

What you cannot assemble out of modules is the next part.

DCS vs PLC really means server-centric or controller-centric

A DCS puts a database in the middle. On a PLC system that middle spot belongs to a controller. Everything that irritates you about either route comes out of that one decision.

Honeywell states plainly what the database buys. An application asks for a point and the system goes and finds it, whether the point lives in the controller in front of you or in a cluster on the far side of the site. No duplicate databases, no gateway to maintain between two systems, and the display never needs to know where the data physically sits. Emerson builds around the same idea: one configuration produces the control strategy, the graphics, the alarms and the history together.

The server is what you pay for it. In Rockwell's own PlantPAx sizing a system server counts as a required element, and so does an engineering workstation, on every architecture down to the smallest one they document. That is not a knock, it is just what a DCS is. But it means your control system now carries a Windows layer in the middle of it, and that layer gets replaced on IT's schedule, not on the twenty-year schedule a controller lives on. Rockwell is upfront that the layer runs on commercial off-the-shelf hardware.

A PLC needs none of it. Take the HMI away and the logic keeps executing, which is exactly why plants get built this way. It is also why those plants end up with four alarm philosophies and a tag map that only makes sense to whoever wrote it.

DCS vs PLC in one picture: the database in the middle, or the controllers talking to each other.

	DCS	PLC and SCADA
Where the master database lives	One server, shared by the whole system	In each controller, plus whatever the HMI keeps
Configuration software	The vendor's own tool, and nothing else	Vendor tool for logic, any of several packages for graphics
Getting data across the plant	Ask for the point by name, the system locates it	Map the tags, build the message, maintain both ends
Redundancy	Standard, and the vendor owns the test	A module you buy, wire and prove yourself
Network integration	Delivered and tested by the supplier	Yours, or your integrator's
Alarms and history	Come out of the same configuration as the control strategy	Configured separately in the HMI or historian layer
If the server goes down	Operators lose the plant view, control keeps running	Nothing stops, because there was no server in the path
Spares path	One vendor, one price list	Original, surplus or refurbished, from several sources

Where DCS vs PLC divides in practice, once the hardware question is off the table.

The I/O count where the argument answers itself

Rockwell splits process systems into three sizes, and the boundaries are worth knowing even if you never buy a line of PlantPAx. Small is under 2,000 I/O, running on one to five controllers and a single server. Medium covers 2,000 to 10,000. Large starts at 10,000, with multiple controllers and multiple servers behind them.

Under 2,000 the two routes land in the same place. Say you have three process areas, roughly 1,400 points between them, and one operator who wants a single screen for all three. Three controllers on one network with a SCADA package over the top does that. So does a small packaged system. Capability is not what separates them at that size. What separates them is who does the integration work and what the license costs.

Past 10,000 points the math turns over. Plant-wide batch, a control room staffed around the clock, an operations group answering for the whole site: the packaged system starts paying itself back in engineering hours before anyone reaches the technical argument. That is the DCS vs PLC decision in one number, and it beats a table of scan times.

System size	I/O count	Controllers	Servers
Small	Under 2,000	One to five	One
Medium	2,000 to 10,000	Five or more	One or more
Large	10,000 and up	Multiple	Multiple

Rockwell's own process system sizing. The numbers are the most honest guide to DCS vs PLC scale that either camp publishes.

What each route bills you for three years in

The DCS vs PLC bill does not arrive on day one. A DCS is configured by its own software and nothing else. Emerson's system takes Emerson's tools, Honeywell's takes Honeywell's, and that is the price of the single database. Your spares and support strategy inherits it: one vendor, one toolchain, one price list, for as long as the plant runs. Rockwell's own pitch for migrating off a legacy DCS leads with that exact risk, aging equipment raising questions about part sourcing and service. When the company selling you the replacement uses parts availability as the argument, take the point.

Licensing has been moving too. Emerson now offers term-based licensing on DeltaV specifically to bring the up-front capital cost down, which tells you something about what the traditional arrangement looks like on a purchase order.

The PLC route swaps that bill for work you own. Redundancy is a good example: a pair of controllers, a redundancy module between them, and a switchover somebody has to test and document. Data between controllers moves because you moved it. Inherit a plant where 200 parameters cross between two processors through a hand-built message and a packed array and you find out what that costs to keep alive. None of it is difficult work. It is just yours, permanently, and it lives nowhere except in the code.

Redundancy on the PLC side of a DCS vs PLC decision is a part number and a test procedure you own. A 1756-RM2 between a controller pair.

FAQ

Is DCS vs PLC still a real decision, or just marketing now?

Real, but not where people go looking for it. The hardware question is finished. What stays open is whether a vendor's database and server belong in the middle of your control system. That one sets your engineering model, your spares path, and who you end up calling at three in the morning.

At what I/O count does DCS vs PLC start to matter?

Rockwell's own process sizing puts small systems under 2,000 I/O and large ones at 10,000 and above. Below 2,000 the choice is mostly commercial. Above 10,000 the integration work you would be taking on yourself gets big enough to change the answer on its own.

DCS vs PLC: which one is more reliable?

Neither, on its own. A DCS ships redundancy as standard, so the average installation lands in a better place. Redundant PLC pairs will match it and run for years without complaint, but somebody has to specify it, wire it and prove the switchover works. Reliability follows what got configured, not the label on the box.

Can a PLC run process loops as well as a DCS?

On the loop itself, yes. The process controllers in the Logix family are the same hardware with a process tasking model and a process instruction library on top, scheduled in the same 100 to 1000 ms range. Where a PLC falls behind is everything around the loop: faceplates, alarm handling, historization, and the operator graphics that arrive pre-built in a packaged system.

Two questions, not twenty

Every DCS vs PLC argument I have sat in would have finished inside ten minutes if it had started with two questions. Do you want a vendor's database in the middle of your control system? And how many points are you controlling? Answer both honestly and the rest is procurement.

Either way the iron underneath is the same 1756 chassis it always was. We keep ControlLogix processors, process controllers like the 1756-L85EP, redundancy modules and Ethernet bridge modules on the shelf as new surplus. Older ProcessLogix parts too, which are still holding up plants nobody plans to migrate this year. Pricing one route against the other, or keeping an existing system running while you decide? Send us the list and we will tell you what is actually on the shelf.
