Fluke 773 alternatives: what the cheap option actually gives up

Every time someone asks me about the Fluke 773, the question underneath it is the same one. Two thousand dollars for a meter that sits in the bag eleven months of the year. I have had that argument with myself, and twice with purchasing. The problem is that most of the tools people line up against a Fluke 773 do not do the one thing that makes it cost what it costs. So here is what the money actually buys, which cheaper route replaces which half of the tool, and how to check a used one before you send anybody a payment.

The clamp is the expensive part

Sourcing 4 to 20 mA is cheap, and it always has been. A stable current source, a display, a way to step the output. That is an eighty dollar problem now, and the little handheld boxes that do it work fine.

Reading a live loop through the insulation, without opening it, is a different problem. That is the half of the Fluke 773 people forget they are paying for when they compare it against a marketplace signal generator. The cheap box sources and simulates. It does not clamp anything.

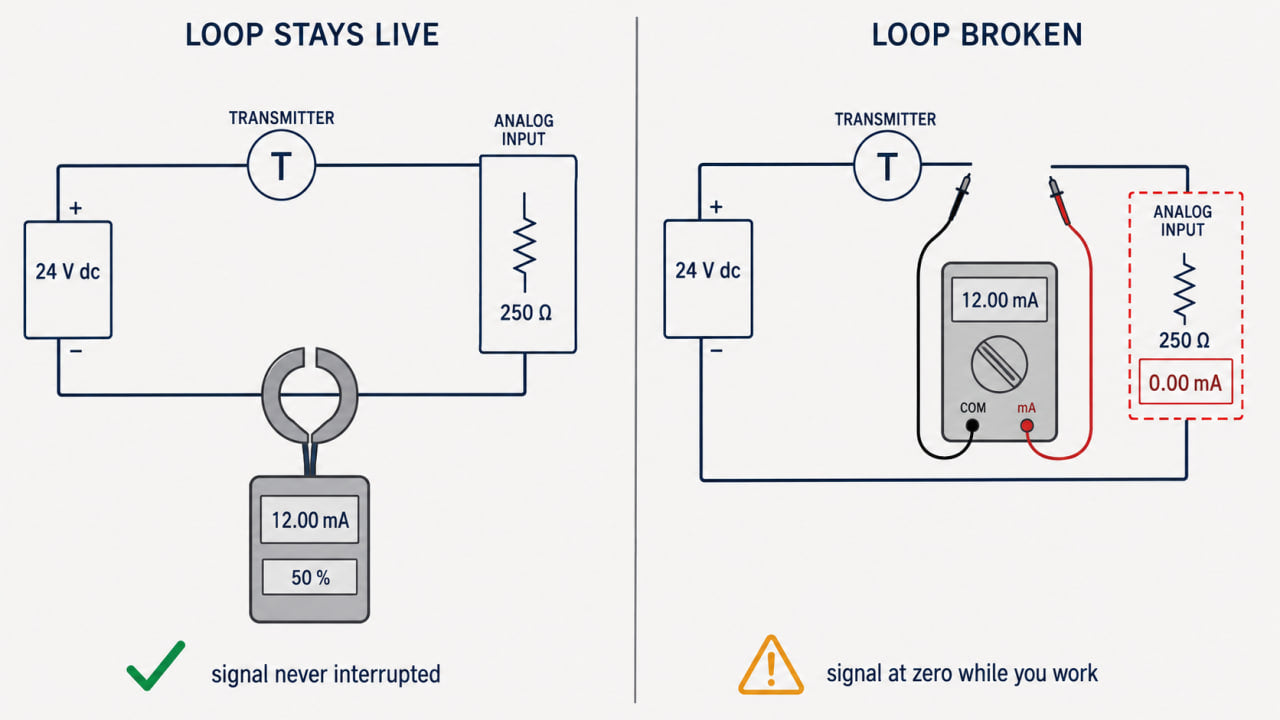

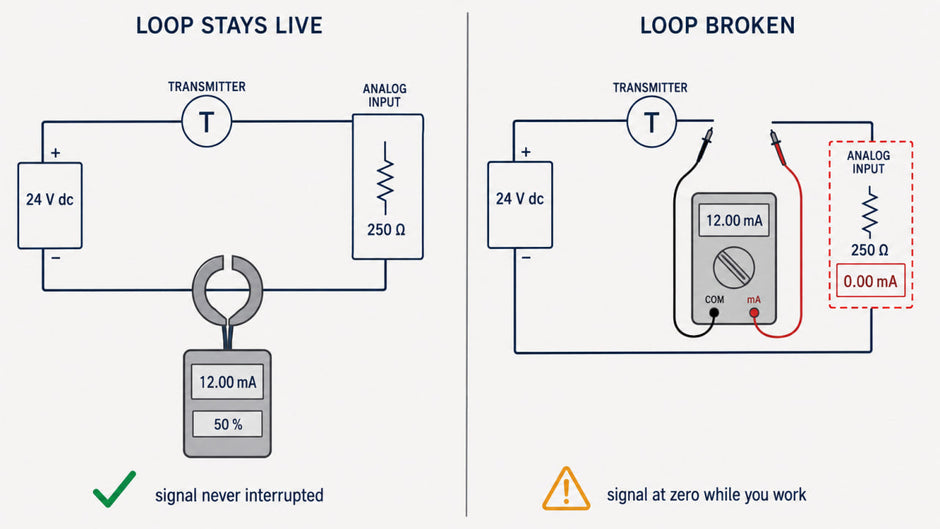

Say you get called out because a level transmitter is reading high. With a source-only tool you have two moves. Pull the loop apart and put a meter in series, which drops the signal to zero for as long as your leads are in there. Or disconnect the transmitter and inject a known current to see whether the controller reads it back correctly. Both are legitimate. Both take the loop out of service, and on a running process with an operator watching the trend, neither one is free.

The clamp exists to skip that choice entirely. Plenty of shops never need it, and I would rather say so up front.

The four dark blocks are the only functions a Fluke 773 adds over the meter below it, and the dashed outline is all a cheap calibrator gives you.

What a Fluke 773 does that a 771 or 772 does not

The three meters share a jaw and diverge after that.



Four rows separate a 772 from a Fluke 773, and two of them are the ones that matter.

Scaled mA output takes whatever the jaw is reading and pushes it back out of a jack as a matching current signal. Hang a logging meter on that jack and you record a live loop over a full shift without ever opening it. Intermittent faults, the ones that only show up at three in the morning when nobody is standing there, that is what this is for.

The mA in and out mode sources a signal into a device and measures that device's output at the same time. Stroke a valve positioner, drive an isolator, watch what comes back, all from one meter. Doing that with a 772 means two tools and two people, or a lot of walking.

The dc voltage side is more ordinary. Measure to 30 V for checking a 24 V supply, source to 10 V for anything that takes a 1 to 5 V or 0 to 10 V input. Handy, but not a two hundred dollar difference on its own.

If you never log a loop and never stroke a valve, you are buying a 772 with extra jacks. I would rather say that plainly than talk somebody into the top of the range.

How the jaw reads dc milliamps, and why zeroing is not optional

A clamp meter reads ac by transformer action. Direct current has no changing field to couple, so the jaw on a Fluke 773 uses a Hall effect sensor instead, sitting in the gap of a toroidal iron core. The core channels the flux from the conductor through the chip, and the chip reports field strength whether that field is alternating or dead steady.

The Hall sensor in the gap is what lets a Fluke 773 read direct current at all, and it is also why the zero routine matters.

That mechanism is exactly why the zero routine exists, and why skipping it quietly wrecks a reading. A Hall sensor has an offset, and the offset moves with orientation, temperature and whatever else is magnetized nearby. Fluke puts the influence of the earth's field alone at under 0.2 mA. On a 16 mA span that is more than one percent of the signal, from nothing but which way you happened to be facing.

So the routine is short and it is not negotiable. Close the jaws, make sure nothing is flowing through them, zero the meter. Then zero it again in the same position and the same jaw direction you are about to measure in, as close to the measurement point as you can get. Keep the jaw clean. Clamp one wire, never two, or you are reading the sum and it will look like a perfectly plausible number.

The reward for doing all that is 0.01 mA resolution and this:



Read that middle row again. The jaw is the convenience, the jacks are the accuracy, and the gap between them is real. When I am actually trimming something rather than hunting a fault, I break the loop and use the jacks.

The bottom row is the one nobody mentions. The scaled output that lets you log a loop is roughly three times looser than the number on the display, and its error stacks on top of the jaw's. It is a trending tool. It is not a calibration record.

Two more numbers worth carrying around. The tight accuracy only holds to 20.99 mA. Above that the jaw still reads, up to 100 mA, but the spec drops to 1 % + 5 counts. And the display shows percentage of span next to the milliamps, so 12.00 mA reads 50 % without you doing arithmetic on a ladder.

Buying a used Fluke 773, and what to check first

Used units move in the seven to eight hundred dollar range, which is where most people asking this question end up. Fair enough. But there is a specification that tells you exactly where these meters die, and it is easy to skip past.

Fluke rates the meter to survive a one meter drop, except the jaw.

The warranty says the same thing a different way. Three years on the meter, one year on the clamp assembly and cable. The manufacturer is telling you which part it expects to fail, and it happens to be the part you cannot cheaply replace. A replacement clamp and cable is available, but the meter has to be recalibrated afterward, so a cracked hinge is not a forty dollar fix.

Work the jaw before you look at anything else. Open and close it a dozen times and feel for grit or play in the hinge. Look at the mating faces where the two halves of the core meet, because contamination there turns into offset you cannot zero out. Flex the cable at both ends, especially at the strain relief. Then power it up, zero it, and clamp a known good loop in both jaw directions. A meter that reads 12.02 mA one way and 11.71 the other has a problem no amount of zeroing will fix.

Everything else on these is durable. It is the jaw.

The pivot, the mating faces on the core, and the trigger are the three spots that wear first on a used Fluke 773 jaw, and all three are worth checking before you ever power the meter on.

The cheaper routes, and what each one really replaces



Street prices move around, so treat those as a starting point and not a quote.

The second row is the one I wish more people took seriously. If you are wiring a panel today, disconnect terminals or test point blocks on every analog loop cost a few dollars a point and let anyone with a plain multimeter measure current without a shutdown, permanently. That is the cheapest lasting answer to the problem a Fluke 773 solves, and it only works if somebody thought of it before the panel was built. Retrofitting them into a running plant is a different conversation and usually a worse one.

The homemade route deserves a mention because it does work for bench testing. Twenty four volts, a resistor, a potentiometer, and you can sweep a loop input and watch what a card does with it. What you do not get is a number you can write down, because you have no idea what your own source is actually putting out unless you measure it with something you already trust.

Most loops never get past the first two questions, which is why so many of these meters sit unused in a cabinet.

When a Fluke 773 earns its price

Two situations, honestly.

The first is when you cannot stop the process. Continuous production, a permit needed to break into a loop, an operator who will not thank you for zeroing a level signal in the middle of a shift. In that world the clamp pays for itself the first week.

The second is valve and positioner work, or chasing a fault that only shows up sometimes. Drive an input and read the output on one meter, or park a logger on the scaled output and go do something else for six hours. A 772 cannot do either of those at all.

Outside those two, a used 771 for live checks plus a cheap calibrator for injection covers most of what most people actually do, for a quarter of the money. I have watched a Fluke 773 sit in a cabinet for two years at a plant that calibrates on a schedule and never troubleshoots a live loop.

FAQ

Is a Fluke 773 worth it if I only use it a few times a year?

Probably not, unless those few times land on a process you cannot shut down. Frequency is the wrong question. What matters is whether the work you do requires reading a loop that has to stay live, and if it does not, a 771 and an eighty dollar calibrator cover the same ground.

What is the difference between a Fluke 772 and a Fluke 773?

Four functions: dc voltage source to 10 V, dc voltage measurement to 30 V, scaled mA output for logging, and simultaneous mA in and out. Everything else, including the clamp, the source and simulate modes, the 24 V loop supply and the 250 ohm HART resistor, is on both.

Can a Fluke 773 measure 4 to 20 mA without breaking the loop?

Yes, and that is the entire point of the jaw. Zero it first, in the same orientation you are going to measure in, and clamp one conductor only.

Is a used Fluke 773 safe to buy?

Usually, with one caveat. Check the jaw and the cable before anything else, since those carry a shorter warranty than the meter itself and a replacement clamp has to be recalibrated after it goes on. The electronics hold up well.

Can I just use a regular multimeter instead?

For measuring, yes, as long as you can afford to open the loop. A multimeter in series reads the same current perfectly well. The opening is what costs you, and on a live process that cost is sometimes the whole job.

What usually turns out to be broken

One more thing, because it is where these calls tend to end up. Once you have measured the loop and the field device is putting out exactly what it should, the Fluke 773 has done its job and the fault is somewhere else. Nine times out of ten that means the analog input card, the controller, or a scaling parameter somebody changed and never wrote down. A good mA reading with a bad number on the HMI is an I/O problem, not an instrument problem.
