The panel wire color chart that holds up, and the one stripe everybody reverses

I opened a machine panel a while back where every single conductor was blue. Line side, control, DC common, all of it, off one spool. The drawings called out colors that had never been installed. Tracing a start circuit that should have taken ten minutes ate most of a shift.

That is the argument for a panel wire color chart in one paragraph. Not compliance, not paperwork. The next person in that panel at two in the morning.

Trouble is, the panel wire color chart most shops work from got inherited rather than looked up, and it drifts a generation at a time. So here is what the standards actually say, where two of them split, and the one entry people reverse more than any other.

The control circuit panel wire color chart, straight from UL 508A

UL 508A is the listing standard for industrial control panels, and section 66.9.1 hands you the control circuit colors as a plain list. No interpretation required. This is the spine of any panel wire color chart you build for a North American panel.

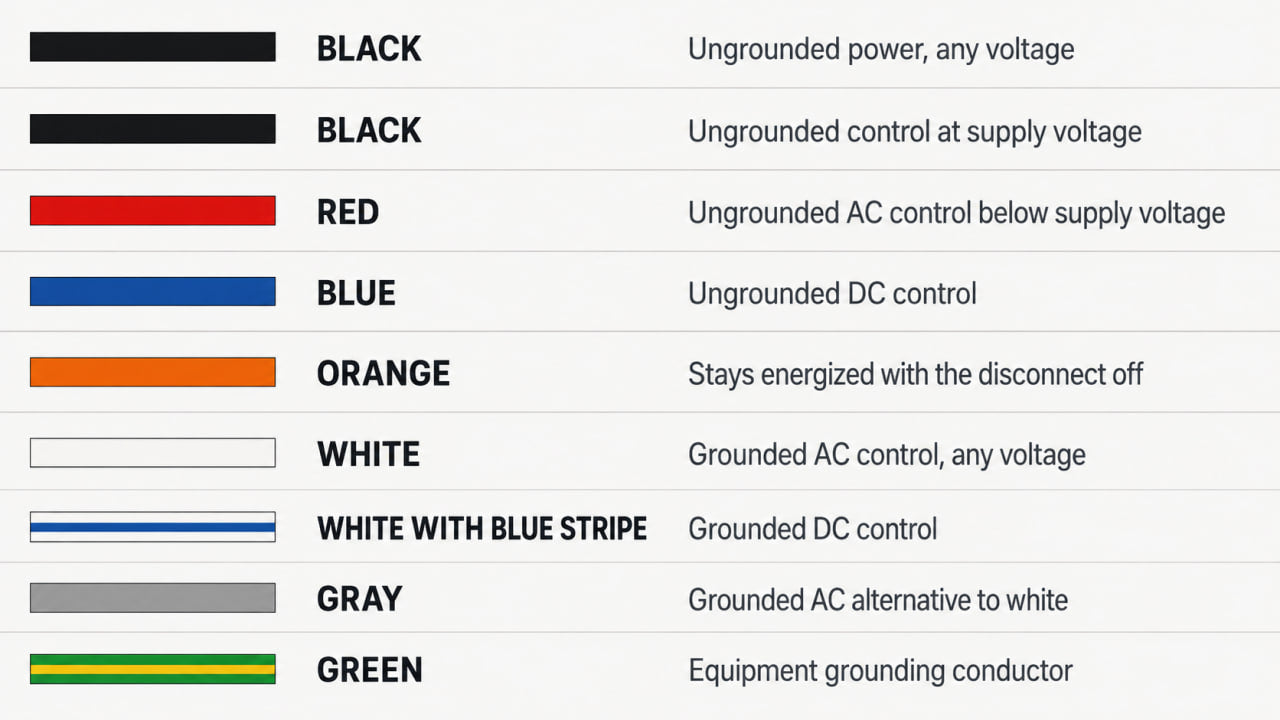

Color	What it identifies (UL 508A 66.9.1)
Black	All ungrounded control circuit conductors operating at the supply voltage
Red	Ungrounded AC control circuits operating at a voltage less than the supply voltage
Blue	Ungrounded DC control circuits
Yellow or orange	Ungrounded control circuits, or other wiring such as cabinet lighting, that remain energized when the main disconnect is in the off position
White, or gray, or three white stripes on other than green, blue, orange or yellow	Grounded AC current-carrying control circuit conductor, regardless of voltage
White with blue stripe	Grounded DC current-carrying control circuit conductor
White with yellow stripe, or white with orange stripe	Grounded AC control circuit current-carrying conductor that remains energized when the main disconnect is in the off position

Control circuit rows of the panel wire color chart, worded the way the standard words them.

Two things on that list get missed constantly.

Red is not "120 volts." It is ungrounded AC control below the supply voltage, whatever that voltage happens to be. Say your panel comes in at 480, you have a 120 volt control transformer, and you also run a 24 volt AC circuit for a couple of valves. Both of those are red. The standard gives you no separate color for 24 AC, and inventing one puts you off the chart rather than ahead of it.

The exception at the bottom of 66.9.1 is also broader than people expect. Leads on assembled components, multiconductor cable, leads used to connect electronic devices, and conductor sizes 20 through 30 AWG are not required to comply. That covers most of the ribbon and pigtail wiring nobody was ever going to color correctly.

Minimum size for control conductors is 18 AWG under 66.9.2, and programmable input/output and static control wiring is allowed to run 18 down to 30 AWG.

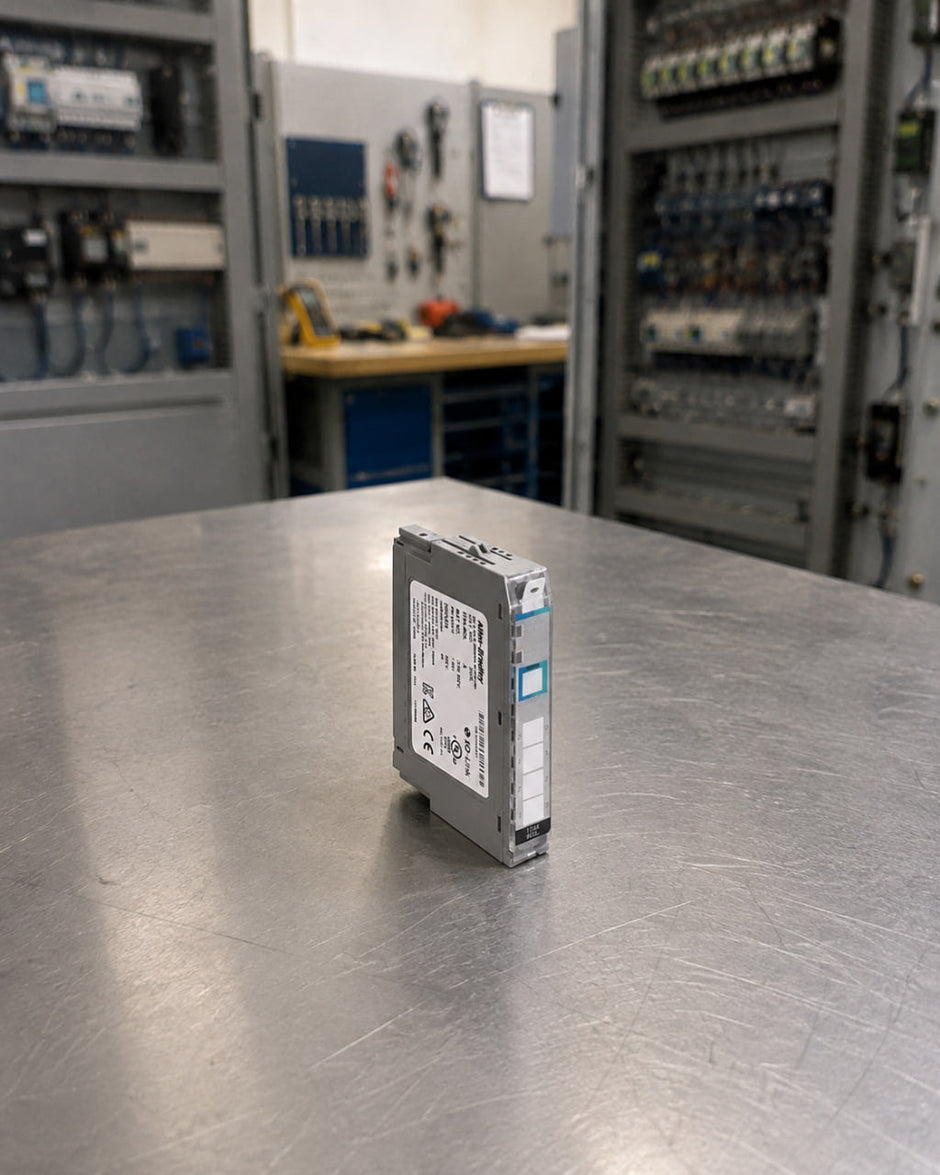

The 20 to 30 AWG exception exists mostly for wiring like this: assembled I/O modules with a rated nameplate the reader can actually check against a drawing.



Power conductors are black. All of them.

The inherited panel wire color chart usually breaks right here. Ask an electrician for three phase colors and you get black, red, blue at 208 and brown, orange, yellow at 480. Inside a listed industrial control panel, 66.5.3 says something else entirely.

Color	What it identifies (UL 508A 66.5.3)
Black	All ungrounded power circuit conductors, regardless of voltage
White, or gray, or three continuous white stripes on other than green, blue, orange or yellow	Grounded AC current-carrying power circuit conductor, regardless of voltage

Power circuit rows. Two entries, and one of them is black.

So L1, L2 and L3 are all black. Phase identity comes from terminal markings and the drawing, not from insulation color. There is one relief valve: conductors 4 AWG and larger whose insulation is colored other than the grounded convention can be identified at each termination point by a white marking, tape wrapped around the conductor being the usual way.

What I run into more than either approach done properly is a panel built the branch circuit way and labeled the panel way. That is the worst of both. Pick one, put it on the drawing, and hold the whole build to it.

Power conductors do not go below 14 AWG under 66.5.4, with an exception allowing 16 or 18 AWG for power circuits that meet the conditions in Table 66.2.

Same three conductors, two conventions. Only one of them is what 66.5.3 asks for.



White with a blue stripe, not blue with a white stripe

This is the entry that gets reversed more than anything else on a panel wire color chart. The standard calls for white with a blue stripe on a grounded DC control conductor. What actually gets installed, over and over, is blue with a white stripe.

They are not the same conductor and they are not interchangeable. White with a blue stripe is a white wire: the white says this leg is grounded, and the blue stripe says it is the DC one. Blue with a white stripe reads as a blue wire that somebody put a marking on, which is to say an ungrounded DC conductor. Reverse it and you have told the next person the opposite of what is true.

The deeper trap sits under the word grounded. It does not mean the common. It does not mean the negative rail. It means that leg is intentionally bonded to ground.

·       24 volt supply with its 0V terminal bonded to the ground bar: that 0V side is a grounded DC conductor, so white with a blue stripe.

·       Leave the same supply floating, neither leg bonded, and nothing there is a grounded conductor. Both legs are blue.

That second case catches people. Two solid blue conductors on the same terminal strip, both of them correct. Common enough on imported machines and on anything where the 0V is deliberately kept off ground. It is also the moment terminal numbers stop being a nicety.

Say you drop a replacement 24 volt supply into a panel where the old one had its 0V bonded at the supply itself. The new unit shows up with that bond not made, and nobody notices because nothing about the machine cares. You land a white-with-blue conductor on the 0V terminal because that is what the drawing shows. Nothing faults. Nothing trips. The wire has just quietly stopped being true, and the next person believes it instead of the meter.

Whether the 0V leg is bonded decides the color. Grounded is a wiring fact, not a name for the common.



Yellow or orange, and the one place the two documents split

UL 508A 66.9.1(d) gives you a choice: yellow or orange for ungrounded control circuits that stay energized with the main disconnect off.

NFPA 79 gives you no choice. Its 13.2.4.1 states that the color orange shall be used to identify ungrounded conductors that remain energized when the main supply circuit disconnecting means is in the off position, and that this color identification shall be strictly reserved for this application only. Two exceptions: internal wiring on individual devices purchased completely wired, and cases where the insulation is not available in the required color, high temperature and chemically resistant insulation being the examples it names.

Strictly reserved is the operative phrase. Orange for a spare, orange for an analog pair, orange because it happened to be on the cart: every one of those quietly kills the only signal telling somebody the disconnect did not de-energize everything.

NFPA has since split that further. Orange on its own flags AC that stays live, and orange with a blue stripe flags DC that stays live, so the insulation tells you what kind of voltage is still in there. The 2024 edition carries a revision to 13.2.4.1 clarifying the use of orange.

There is a companion requirement that has nothing to do with color and gets skipped anyway. Under 5.1.13.4, where excepted circuits are not disconnected by the machine supply circuit disconnecting means, you need a permanent safety sign next to the disconnecting means operating handle stating that it does not de-energize all exposed live parts in the open position, that same information in the machine documentation, and a permanent safety sign on a nonremovable part inside the enclosure near each excepted circuit. That last item used to read as sign or color identification. It reads as sign and color now, and the word swap was deliberate.

My own habit: build to orange and keep yellow out of the panel entirely. A panel wire color chart that uses orange only satisfies both documents. One that uses yellow satisfies one of them.

Green and white are the two nobody borrows

Green identifies the equipment grounding conductor, with or without one or more yellow stripes, and 13.2.2.1 reserves that identification strictly for it. Green stays the predominant color when it is combined with yellow stripes.

Grounded AC conductors come out of NFPA 79 13.2.3.1: white, gray, or three continuous white stripes on other than green, blue, or orange insulation, along the entire length. UL 508A words its own version nearly identically and adds yellow to the base colors you are not allowed to stripe over.

There are documented exceptions on the green side and they are narrower than they sound. A green conductor can serve another purpose inside a multiconductor cable, but only if every circuit in that cable is supplied from a source limited to less than 50 volts and to no more than a power-limited Class 2 energy level, and the conductor is reidentified at all accessible locations or the cable is part of a listed assembly. Grounded control circuits get their own allowance for a green conductor running from the transformer terminal to a grounding terminal on the panel. Neither one is permission to pull green for a 120 volt leg because the reel was closest.

Where this panel wire color chart applies, and where it stops

Section 65.1 scopes the industrial machinery requirements, and it does it by naming machine types rather than describing them:

·       Metalworking machine tools, including machines that cut or form metal

·       Plastics machinery, including injection molding, extrusion, blow molding, specialized processing, thermoset molding, and size reduction machines

·       Wood machinery, including woodworking, laminating, and sawmill machines

·       Assembly machines

·       Material handling machines, including industrial robots and transfer machines

·       Inspection and testing machines, including coordinate measuring and in-process gauging machines

Now read that against what you actually build. A water treatment skid, a generator control panel, a pump house, a SCADA cabinet: none of them are on the list. The colors are still the right colors and I would use them anyway, but the requirement you are quoting at a customer may not reach the panel in front of you. Better to know that before the argument than during it.

The machine that came in from Europe

An imported machine was not built to the North American panel wire color chart, and relabeling it is not a five minute job. EN 60204-1 puts its colors like this.

Color	Circuit (EN 60204-1)
Black	AC and DC power circuits
Red	AC control circuits
Blue	DC control circuits
Orange	Interlock control circuits supplied from an external power source
Light blue	Neutral
Green and yellow	Protective conductor

The EN 60204-1 set. Notice how much of a North American panel wire color chart it already matches.

Black power, red AC control, blue DC control: identical to what UL 508A asks for. Worth noting the wording too, because it usually gets quoted backwards. That list is written as a recommendation, not a hard mandate.

The real divergence is neutral. Light blue is the neutral in that scheme, and the standard is firm that light blue is not to be used for identifying any other conductor where confusion is possible. The protective conductor is green and yellow together, in a bicolor where one of the colors covers at least 30 percent and not more than 70 percent of the surface over any 15 millimeter length, and it warns against green alone or yellow alone anywhere confusion with that combination is possible.

Here is the practical problem. A light blue neutral landing on a US floor is not the grounded conductor color an inspector expects, and there is no quiet workaround. Somebody did formally propose letting dual market machines use blue for the grounded conductor so one build could ship either direction. NFPA's committee turned it down, and their reasoning was exactly the issue: blue for the grounded conductor would cause confusion in the field because the National Electrical Code requires white or gray.

You will also meet brown and blue for 24 volt DC on imported gear. Real convention over there, and not on the US chart at all.

What I do with those machines is document rather than repull. NFPA 79 has an allowance for other colors where they are permanently posted on the main control panel, and a laminated card inside the door beats a partial rewire that leaves half a machine on one convention and half on the other. A half-converted panel is the only situation genuinely worse than the wrong colors consistently applied.

What color never tells you

Color gives you circuit type. It does not give you voltage. Blue covers 24 volt DC and 12 volt DC equally, and a 120 volt transformer secondary sits on the same red as a 24 volt AC valve circuit. Treat a panel wire color chart as a voltage chart and you will eventually get a surprise, and the chart is not the thing that failed.

Two limits worth building around.

Terminal identification is a requirement, not a courtesy. Every conductor gets identified at each termination by letters or numbers corresponding with the wiring diagrams provided with the panel, per 66.5.2. Color plus a number is a system. On its own, color is a guess with better odds.

The other limit is the people. A real share of anyone who will ever open that panel cannot separate red from green at a glance, it rarely comes up in conversation, and aging fluorescent or sodium lighting takes what is left. None of that argues against the chart. It argues for ferrules and numbers on everything, so nobody has to bet on a color being read right.



FAQ

What is the standard panel wire color chart for a control panel in the US?

For a listed industrial control panel, UL 508A 66.9.1 is the list: black for ungrounded control at the supply voltage, red for ungrounded AC control below the supply voltage, blue for ungrounded DC control, yellow or orange for circuits that stay live with the disconnect off, white or gray for grounded AC control, and white with a blue stripe for grounded DC control. Power conductors are black under 66.5.3, regardless of voltage. NFPA 79 lines up on most of it and is stricter on orange.

Is blue positive or negative on a 24V DC control circuit?

Neither. Blue is not a polarity, it means ungrounded DC control. Bond that 0V side to ground and it becomes a grounded DC conductor, which takes white with a blue stripe instead. On a floating supply neither leg is grounded, so both stay blue. Polarity comes from the terminal numbers and the drawing.

Can I use red and black for 24V DC in a control panel?

Not if you are building to the chart. Red is assigned to ungrounded AC control below the supply voltage, and black is for ungrounded conductors at the supply voltage. The automotive habit of red positive and black negative puts two colors on a DC circuit that the standard already spent on AC. It is one of the most common departures I run into, and it costs the most time later, because a black conductor in a panel should mean line voltage to whoever finds it.

Does a panel wire color chart apply to every control panel?

No. UL 508A scopes its industrial machinery requirements to named categories: metalworking, plastics, wood, assembly, material handling, and inspection and testing machines. A generator control panel or a treatment skid can fall outside that. Using the colors anyway is still the right call, but know which document actually binds the panel before you cite one at somebody.

What do I do about a European machine's wire colors?

Document them, do not repull them. Light blue neutral and brown-blue 24 volt DC are both legitimate under EN 60204-1 and both wrong under the US convention. Posting the machine's real colors permanently on the main control panel is an afternoon of work and NFPA 79 accommodates it. Rewiring is a week you did not budget for.
