PowerFlex 525 parameters: the ones that actually matter when you set one up or swap it

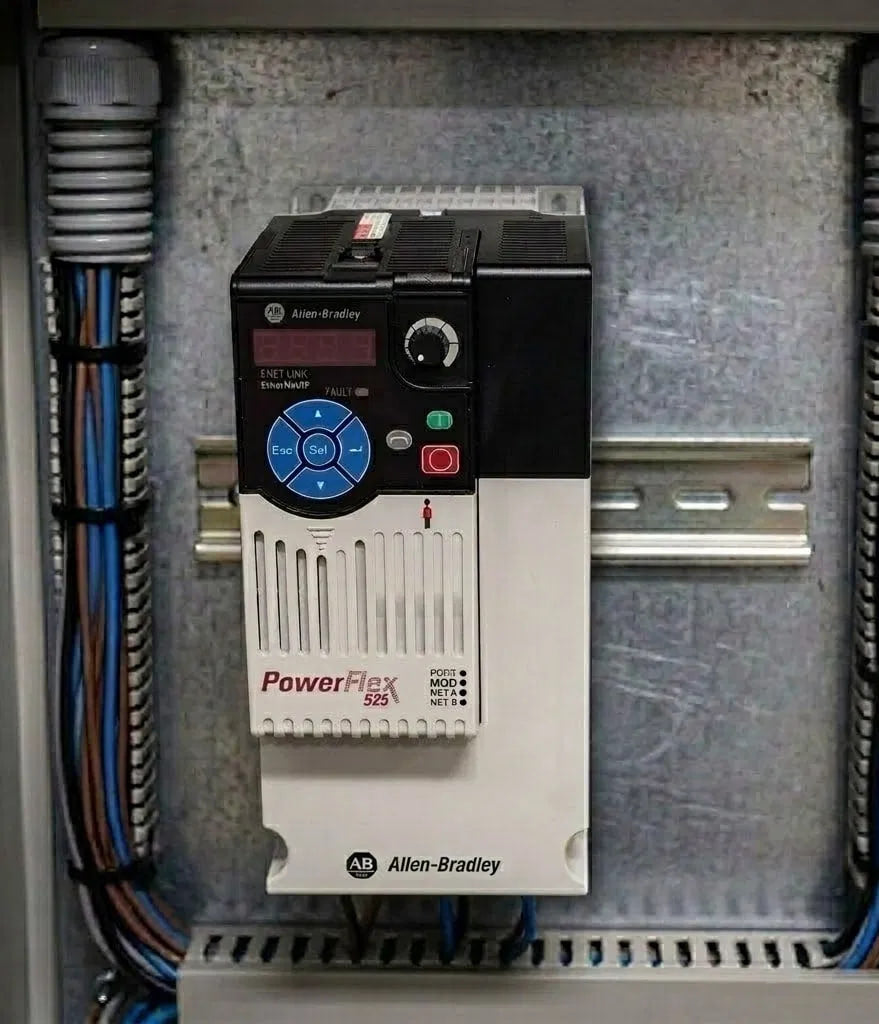

Allen-Bradley PowerFlex 525 drive mounted in a control cabinet, displaying fault F059

Every time someone swaps a PowerFlex 525 and calls me because the new one is «dead,» I already have a good guess before they finish the sentence. Nine times out of ten it is not dead. It is a missing safety jumper, a Start Source pointing at the wrong place, or a control module that does not match the power module somebody bolted it to.

The 525 keeps its whole setup in a fairly small set of parameters. Get a handful of them right and the drive runs. Get one wrong and it sits there doing nothing, or throws a fault that sends you chasing the motor when the motor was never the problem. This is the short list that matters for a startup or a swap, pulled straight from Rockwell's 520-series manual (publication 520-UM001), plus the two mistakes I see come back more than any others.

One thing before the numbers. A lot of third-party «quick start» pages have these parameters wrong. I have seen P036 listed as «Start Source» and P031 as «Motor FLA» on sites that clearly never opened the manual. Neither is right for current firmware. Everything below comes from the manual itself, so if a source disagrees with this table, trust the table.

How the parameter list is laid out

You will not touch most of these, but it helps to know where things live when you are hunting for one. The drive sorts its parameters into groups by function:

·       Basic Display and Advanced Display: read-only values, output frequency, current, fault history.

·       Basic Program: motor nameplate data, start source, speed reference, accel and decel, stop mode.

·       Terminal Block: how the digital and analog I/O behaves, relay outputs, 2-wire or 3-wire mode.

·       Communications and Network: EtherNet/IP, Modbus/DSI, option card settings.

·       Logic and Advanced Program: StepLogic, PID, jog, sleep and wake, the optional stuff.

·       Fault and Diagnostic: fault history and auto-restart behavior.

AppView and CustomView are just curated shortlists of the above. The keypad shows them by default to keep things short during first setup.

Basic Program group: the parameters every setup needs

These set the motor, the ramp behavior, and where the drive gets its start and speed commands. This is where you spend most of your commissioning time.

Parameter	Name	What it sets	Default
P030	Language	Keypad display language.	English
P031	Motor NP Volts	Motor nameplate rated voltage.	Drive rated volts
P032	Motor NP Hertz	Motor nameplate rated frequency.	60 Hz
P033	Motor OL Current	Motor nameplate overload current; drive faults F007 if this is exceeded.	Drive rated amps
P034	Motor NP FLA	Motor nameplate full load amps; used by Autotune.	Based on drive rating
P035	Motor NP Poles	Number of motor poles.	4
P036	Motor NP RPM	Motor nameplate rated speed.	1750 rpm
P037	Motor NP Power	Motor nameplate power (PowerFlex 525 only).	Drive rated power
P039	Torque Perf Mode	Motor control mode: V/Hz, SVC, Vector, PM Control, SynRM.	SVC
P040	Autotune	Runs a static or rotating autotune to set motor parameters automatically.	Ready/Idle
P041	Accel Time 1	Time to ramp from 0 Hz to Maximum Freq.	10.00 s
P042	Decel Time 1	Time to ramp from Maximum Freq to 0 Hz.	10.00 s
P043	Minimum Freq	Lowest output frequency.	0.00 Hz
P044	Maximum Freq	Highest output frequency.	60.00 Hz
P045	Stop Mode	Ramp, Coast, DC Brake, or PointStop behavior on a stop command.	Ramp, CF
P046 / P048 / P050	Start Source 1 / 2 / 3	Where the drive takes its start command from: Keypad, terminal block, EtherNet/IP, etc.	Keypad / DigIn TrmBlk / EtherNet-IP
P047 / P049 / P051	Speed Reference 1 / 2 / 3	Where the drive takes its speed command from: pot, keypad, analog input, network.	Drive Pot / 0-10V / EtherNet-IP
P053	Reset To Defaults	Resets parameters. Option 3, "Power Reset," resets only power-stage parameters and is meant for swapping power modules.	Ready/Idle

I said it above and I will say it once more here, because it is the single most common way people get burned copying from the web: those numbers are from the manual. If a «quick start» article has P036 as Start Source, it is wrong for current firmware. Use this table when you are comparing sources.

Terminal Block group: the wiring parameters

These control how the physical input terminals behave. Almost every «the drive won't start from the terminal block» call I get traces back to one of these.

Parameter	Name	What it sets	Default
t062	DigIn TermBlk 02	Function of input terminal 02.	2-Wire FWD
t063	DigIn TermBlk 03	Function of input terminal 03.	2-Wire REV
t064	2-Wire Mode	Trigger style for 2-wire control: Edge Trigger, Level Sense, Hi-Speed Edge, Momentary.	Edge Trigger
t105	Safety Open En	Action when both safety inputs are de-energized.	Fault Enable
t106	SafetyFlt RstCfg	How fault F111 is reset: power cycle, or fault-clear without a power cycle.	Power Cycle Reset



PowerFlex 525 terminal block with the embedded EtherNet/IP and DSI ports

Changing a parameter

Three ways to view or edit a parameter: the keypad on the drive, Connected Components Workbench (CCW), or a Logix controller over EtherNet/IP. For a single change, the keypad is fastest and I usually just use that.



PowerFlex 525 keypad and display during normal operation

From the keypad

1. Press Esc until you are back at the normal running screen.

2. Arrow into the parameter groups, or use QuickView text scrolling to read the parameter name as you go.

3. Pick the parameter, change the value, press Enter to save.

If you hit a padlock icon or a value that will not budge, the drive usually needs to be stopped first. Motor data and P045 [Stop Mode], among others, will not edit while the drive is running.

Backing up parameters without CCW

Here is a handy one a lot of people miss. The 525 has a USB port that does MainsFree programming: plug it into a PC with a USB Type B cable, no control module power needed, and the drive shows up as a removable device. A bundled app (PF52XUSB.EXE) uploads or downloads the whole parameter file, and does firmware updates too. It is the quickest way to save a good config before you pull a drive, or drop that config onto the replacement.

CCW does the same job with a nicer interface, offline over USB or online over Ethernet. It also compares two parameter sets side by side, which is genuinely useful when a replacement drive is acting different from the one it replaced and you want to see exactly what changed.

2-wire vs 3-wire control: the wiring mix-up that fools people

Out of the box, terminal 02 (t062) is set to «2-Wire FWD» and terminal 03 (t063) to «2-Wire REV.» In 2-wire mode a maintained contact on terminal 02 runs the motor forward as long as that contact stays closed. There is no separate start and stop button, it just runs while the contact is made.

Say you want a proper 3-wire station instead, with separate momentary Start and Stop buttons. Now both terminal functions have to change: t062 to option 49, «3-Wire Start,» and t063 to option 51, «3-Wire Dir.» The Start Source parameter in play (P046, P048, or P050) also has to be set to option 2, «DigIn TrmBlk.»

Here is where people get caught. They wire a momentary Start button to terminal 02 but leave it on its 2-wire default. Drive powers up fine and never starts. It is sitting there waiting for a maintained signal that a momentary pushbutton never gives it. Not a fault, not a wiring break, just a mode mismatch, and it fools people every time.

The manual lists this under «Drive does not start from Start or Run inputs wired to the terminal block,» right next to two other usual suspects: a sink/source jumper set wrong, and a Start Source that does not match how the terminal is actually wired.

Example: wiring a replacement drive for 3-wire control

Picture the common case. A machine ran a 3-wire start/stop station. The drive dies, you drop in a replacement, and the replacement is still on its factory 2-wire setting. Three things have to change together before it behaves like the one it replaced.

Step 1: set the parameters in CCW.

1. Connect to the drive (USB or Ethernet) and open the parameter list.

2. Set P046 [Start Source 1] to 2, «DigIn TrmBlk.»

3. Set t062 [DigIn TermBlk 02] to 49, «3-Wire Start.»

4. Set t063 [DigIn TermBlk 03] to 51, «3-Wire Dir.»

5. Download the config to the drive.

Step 2: pull the factory jumper.

The drive ships with a jumper between I/O Terminals 01 and 11. That jumper is only right for 2-wire control. In a 3-wire station Terminal 01 becomes the stop input, so if you leave the jumper in, the drive reads a permanent stop and never starts.

1. Kill power to the drive.

2. Take out the jumper between Terminals 01 and 11.

3. Wire the Stop and Start buttons to Terminals 01, 02, and 03 as a 3-wire station, then restore power.

That is the whole set: the source parameter, both terminal functions, and the factory jumper. Miss any one and the drive is either unresponsive or stuck in a permanent stop.

The safety jumper (S1, S2, S+): the reason a drive won't run when everything else looks right

This is the one I check first on any drive that came off another machine, before I even read the fault code. The 525 has two Safe Torque Off inputs, Safety 1 and Safety 2, plus an S+ supply terminal. If the machine does not use an external safety circuit, no e-stop relay wired into those terminals, then a jumper has to bridge S1, S2, and S+ or the drive will not run at all. No jumper, both safety inputs read open, no output. Simple as that.



PowerFlex 525 safety terminals S1, S2, and S+: without a jumper here, the drive will not run, even if everything else is set correctly

Two faults point straight at this jumper:

Code	Name	Description	Fix
F059	Safety Open	Both safety inputs are not enabled.	Check safety input signals. If safety is not in use, verify and tighten the jumper across S1, S2, and S+.
F111	Safety Hardware	Safety input enable hardware malfunction: one input is not enabled.	Same as F059. If the fault persists after confirming the jumper, replace the control module.

I have lost count of how many «dead» drives turned out to be nothing but a missing jumper here. It is small, it is easy to knock loose or pull during testing and forget to put back, and the fault it throws has nothing to do with the motor or the control wiring. So on any drive that arrived as a spare or came off another panel, that is the first thing to eyeball.

Replacing a drive: what to write down first

Swapping a failed 525 for a working one, new, refurbished, or pulled from stock, goes a lot faster if you grab the old drive's config before it comes off the panel. It also saves the second trip. At a minimum, record or back up:

·       Motor nameplate data: P031 through P037.

·       Start source and speed reference: P046 through P051.

·       Accel and decel times, plus frequency limits: P041 through P044.

·       Wiring mode: t062, t063, t064.

·       Safety config: t105, t106, and whether that S1/S2/S+ jumper is actually there.

·       Any EtherNet/IP or network address settings, if the drive lives on a PLC network.

One case worth knowing. If only the power module failed and you are moving the control module onto a new power module, P053 [Reset To Defaults] has an option built for exactly that. Set it to 3, «Power Reset,» and it clears only the power-stage parameters. Your motor data, start source, and everything else already programmed on the control module stays put.

Faults that show up specifically after a swap

Code	Name	Description	Fix
F109	Mismatch C-P	The control module was mounted to a different drive-type power module than before.	Set P053 [Reset To Defaults] to 3, "Power Reset."
F106	Incompat C-P	The control module does not support a 0.25 HP power module.	Use a different power module, or a PowerFlex 523 control module.
F107	Replaced C-P	The control module could not recognize the power module: a hardware fault.	Try a different power module; replace the control module if that does not resolve it.

Why F114 can come back even after you replace the control module

Fault F114 (uC Failure) on the drive display

F114 is «uC Failure,» a microprocessor fault, and this is the one that costs people money for no reason. The manual's suggested action is not «replace the module» and done. It lists three steps in order: cycle power, check that the drive's grounding meets the requirements in the Installation and Wiring chapter, and only then replace the control module if the fault will not clear.

That order matters. Say the real cause is electrical noise getting into the control module through a bad ground path. That happens plenty in panels with shared conduit runs or missing shield termination. Drop in a brand-new control module and it sees the same noise and throws the same fault. I have watched a perfectly good module get swapped for nothing because someone jumped straight to «replace it» and skipped the ground check. Two parts orders instead of one, and the fault still sitting there. Check grounding first.

Frequently asked questions

Can I copy parameters from one PowerFlex 525 to another without CCW?

Yes. The USB port does MainsFree programming, so PF52XUSB.EXE uploads and downloads the full parameter file without powering the control module. One catch: C169 [MultiDrv Sel] on the destination drive has to match the incoming file or the transfer will not apply. Set it manually first if it does not.

What exactly does P053 «Power Reset» reset?

Only the power-stage parameters. It is meant for when a power module gets swapped and needs its parameters cleared, without wiping the motor data, start source, and everything else already set on the control module.

The drive won't start from inputs wired to the terminal block. Where do I start?

Check four things, in order. Is the drive showing a fault. Does P046/P048/P050 [Start Source x] actually point at the terminal block. Do t062 and t063 match the wiring you actually have, 2-wire or 3-wire. Does the sink/source jumper match too. The manual groups all four together because any one of them alone is enough to keep the drive quiet.

Why does the motor run the wrong direction?

Three usual causes. A544 [Reverse Disable] is blocking reverse, the digital input assigned for reversing is wired wrong, or two motor leads need swapping for correct phasing.
