0-51890-5 | Reliance Electric DPSF Phase Sequence Circuit Board
- Regular price
- $1,292.00
- Sale price
- $1,292.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 0-51890-5
Description
The Reliance Electric 0-51890-5 is a DPSF Phase Sequence Circuit Board designed to monitor and verify the incoming AC phase sequence in industrial motor and drive systems. It provides simple, reliable phase detection through a front-panel LED indicator, helping protect equipment from improper wiring or reversed phases.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Reliance Electric |
| Category | Drives |
| Subcategory | Drive Board |
| Part Number | 0-51890-5 |
| Type | Phase Sequence Circuit Board |
| Application | Verifies AC phase sequence for Reliance Electric drive systems |
| Input Voltage | 208–240 VAC or 380–480 VAC (configuration-dependent) |
| Frequency | 50/60 Hz |
| Output Indicator | Single LED (“Phase Sequence”) |
| LED Status | Green: Correct sequence; Red: Incorrect sequence |
| Components | Diodes, resistors, polyester vinyl capacitor, electrolytic capacitors |
| Dimensions | Approx. 3.5" H × 2.5" W × 1.0" D |
| Mounting Style | Panel mount (three screw holes) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | –25°C to 80°C (–13°F to 176°F) |
| Humidity Rating | 5%–95% non-condensing |
Information About 0-51890-5

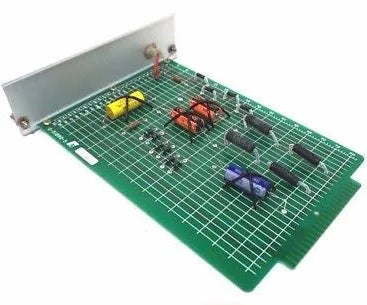

The 0-51890-5 is a DPSF Phase Sequence Circuit Board used across Reliance Electric drive systems and may also appear under Baldor-Reliance or ABB branding due to shared manufacturing. The board includes a metal faceplate with a labeled phase-sequence LED indicator wired directly to the PCB. Its layout features a printed grid pattern for reference, with components including mixed diode types, resistors, polyester film capacitors, and large electrolytic capacitors. Designed for straightforward panel mounting, the board incorporates three factory-drilled mounting points and a conductive rear tab for electrical interfacing. Its purpose is to determine whether the incoming three-phase AC power is wired in the correct sequence, allowing drive systems to operate safely and preventing reverse rotation or motor damage.
Key Features
- Dedicated phase sequence monitoring: identifies correct or reversed AC phase wiring conditions.
- Dual-voltage capability: supports 208–240 VAC and 380–480 VAC inputs for broad system compatibility.
- LED-based indication: front-panel green/red LED provides immediate visual phase status.
- Simple panel mounting: three-hole design ensures secure installation inside drive cabinets.
- Industrial-grade construction: includes diodes, resistors, and robust electrolytic capacitors for long-term reliability.
- Wide environmental tolerance: operates from 0°C to 50°C with high humidity resistance.
- Compatible with multiple OEM labels: used in Reliance Electric, Baldor-Reliance, and ABB drive platforms.
- Compact form factor: small board size simplifies integration into existing control assemblies.
The 0-51890-5 delivers the reliability and precision required for safe and accurate phase verification in Reliance Electric drive systems.
