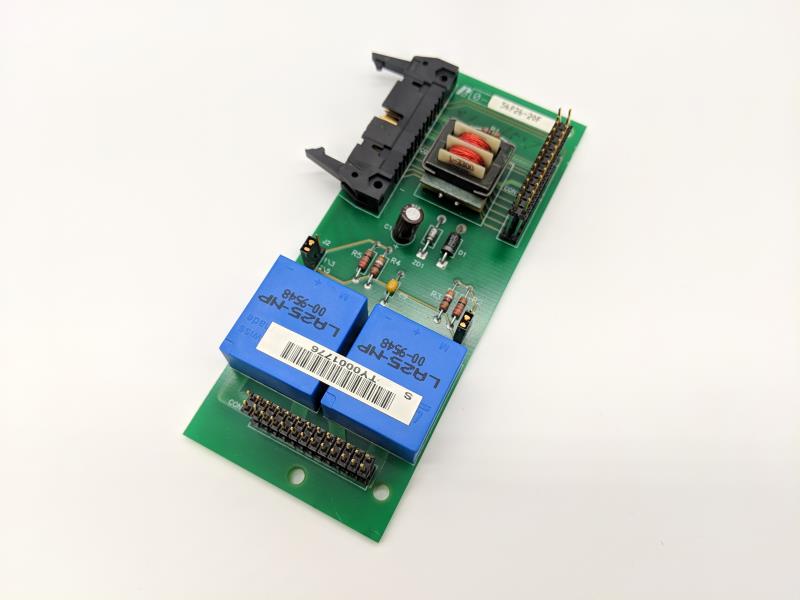

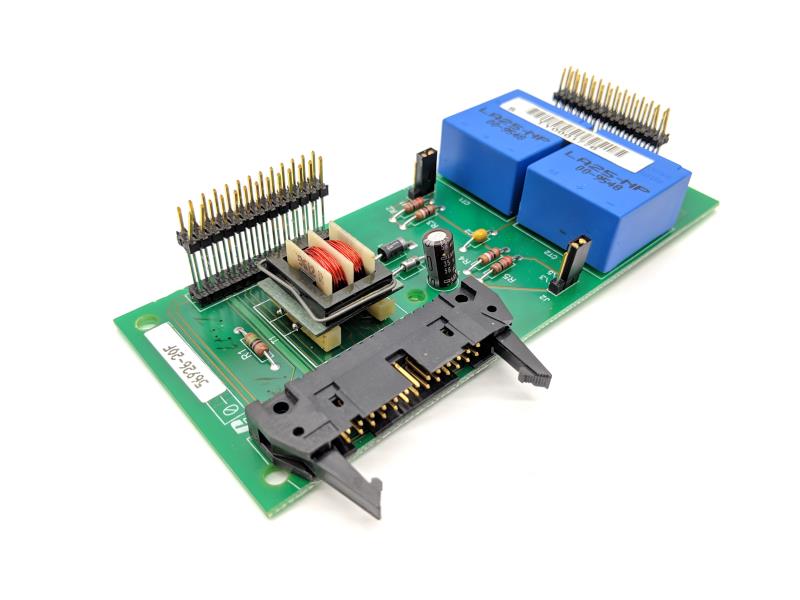

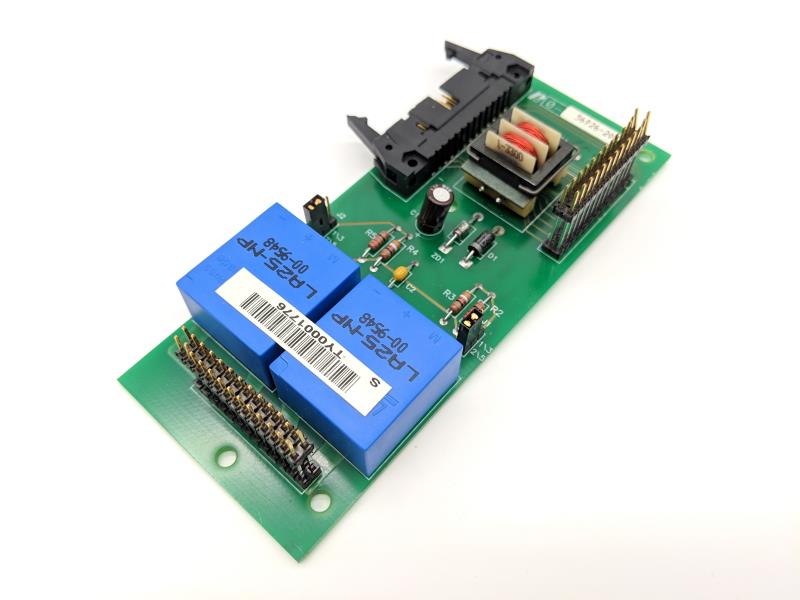

0-56926-20 | Reliance Electric Current Feedback Board

Description

The Reliance Electric 0-56926-20 Current Feedback Board is essential for accurate current measurement and feedback in drive systems. It ensures precise monitoring and control of electrical currents, enhancing the performance and reliability of industrial automation applications. This board supports efficient system operation and stability.

Technical Specifications

Information About 0-56926-20

The Reliance Electric 0-56926-20 Current Feedback Board is an essential component in the domain of PLCs and machine control systems, particularly designed to enhance the accuracy and reliability of motor control operations. As a specialized PC Board PLC/Add-On Board, it plays a crucial role in providing precise current feedback, which is fundamental for ensuring optimal motor performance and control.

This current feedback board is specifically engineered to monitor and report the current levels within motor control systems, allowing for real-time adjustments and improved system responsiveness. By accurately measuring the current, the 0-56926-20 enables the control system to fine-tune motor operations, ensuring that motors run at their intended speeds and torques, thereby improving the overall efficiency and reliability of the machinery. This function is particularly important in industrial environments where precision in motor control can significantly impact productivity and operational stability.

The 0-56926-20 Current Feedback Board is built to withstand typical industrial conditions, with an operating temperature range of 0°C to 50°C. This ensures that the board can function reliably in environments with controlled temperature conditions, which are common in industrial settings. The board’s ability to operate within this temperature range makes it suitable for a wide variety of applications, from light manufacturing to more demanding industrial processes where temperature stability is maintained.

In terms of storage, the 0-56926-20 is designed to tolerate a broader temperature range of -20°C to 70°C. This characteristic is particularly beneficial during transportation or storage in less controlled environments, where the board may be subjected to lower or higher temperatures than during operation. The board’s resilience to such temperature variations enhances its durability and ensures that it remains functional and reliable even after prolonged storage periods.

The 0-56926-20 is also engineered to operate in environments with humidity levels ranging from 5% to 95% non-condensing. This wide humidity tolerance is critical in industrial settings where environmental conditions can vary significantly. Whether the board is used in a dry, climate-controlled facility or in a more humid environment, its design ensures that it can withstand these conditions without compromising performance or reliability. This makes the 0-56926-20 a versatile component, capable of maintaining its integrity and function in a diverse range of industrial applications.

Overall, the Reliance Electric 0-56926-20 Current Feedback Board is a highly reliable and precise solution for motor control systems. Its ability to provide accurate current feedback is crucial for optimizing motor performance, improving system responsiveness, and enhancing the overall efficiency of industrial operations. The board’s robust design, with its wide operating temperature and humidity ranges, ensures that it can perform effectively in various industrial environments, making it an indispensable component in the realm of PLC and machine control systems. Its role in ensuring precise motor control underscores its importance in maintaining operational stability and maximizing the productivity of industrial machinery.

Manufacturer information

Reliance Electric, a pioneering electrical equipment manufacturer, was founded in 1904. Acquired by Rockwell Automation, it specialized in motors, drives, and industrial automation solutions. Known for innovation, Reliance played a key role in advancing industrial technology.
