0-56936-103 | Reliance Electric GV3000 Motor Control Drive
- Regular price
- $1,677.00
- Sale price
- $1,677.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 0-56936-103
Description

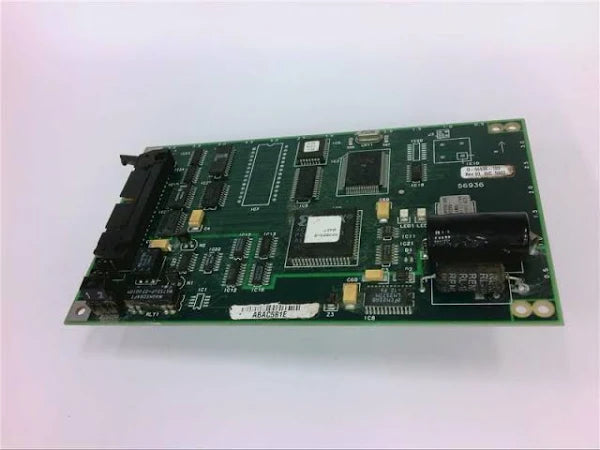

The Reliance Electric 0-56936-103 is a GV3000 motor control drive board designed to deliver precise speed and torque regulation for industrial AC motors. With PWM-based control and support for multiple vector-control modes, it enhances efficiency and system performance across demanding applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Reliance Electric |
| Category | Drives |
| Part Number | 0-56936-103 |
| Subcategory | Drive Board |
| Series | GV3000 |
| Product Type | Motor control drive |
| Drive Type | AC pulse width modulation (PWM) |
| Operating Temperature | 0–40°C (32–104°F) |
| Enclosure Rating | NEMA 1 |
| Input Voltage | 380–460 VAC |
| Line Frequency | 50 Hz ±5% / 60 Hz ±5% |
| Line Voltage Variation | −10% to +10% |
| Carrier Frequency | 2 kHz to 8 kHz (software adjustable) |
| Control Modes | V/Hz, sensorless vector, flux vector |
| Application | Industrial AC motor control |
Information About 0-56936-103
The 0-56936-103 is a core control board within the Reliance Electric GV3000 series, supporting both scalar V/Hz control and vector-based motor regulation. Engineered to work with the drive’s intelligent power module, it enables sensorless and flux vector control modes for enhanced performance and motor responsiveness. Its operational parameters include a selectable carrier frequency and tolerance to line-voltage and frequency variation, ensuring stable operation in diverse industrial settings. Rated for NEMA 1 installations, the 0-56936-103 integrates seamlessly into GV3000 drive enclosures to provide reliable AC motor control.
Key Features
- GV3000 Control Board: provides motor control logic for Reliance Electric GV3000 AC drives.
- Multiple Control Modes: supports V/Hz, sensorless vector, and flux vector control for flexible motor performance.
- PWM Drive Technology: uses pulse-width modulation for efficient and precise AC motor regulation.
- Wide Carrier Frequency Range: software-adjustable from 2 kHz to 8 kHz for system tuning and noise management.
- Voltage & Frequency Tolerance: operates with ±10% line voltage variation and ±5% line frequency variation.
- NEMA 1 Rated: suitable for protected indoor environments with standard GV3000 configurations.
- Stable Temperature Operation: functions within a 0–40°C (32–104°F) temperature range for industrial reliability.
- Seamless System Integration: designed specifically for GV3000 drive platforms for straightforward replacement or upgrade.
The 0-56936-103 delivers the reliability and precision required for advanced speed and torque control in GV3000 industrial motor drive systems.
