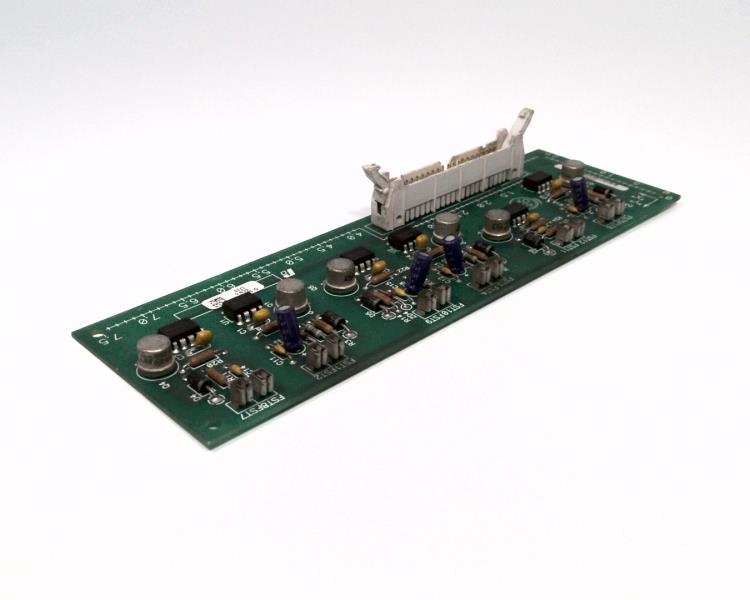

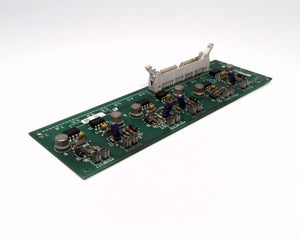

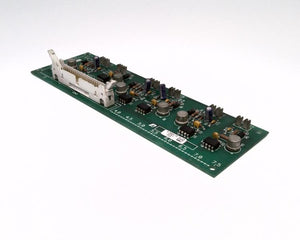

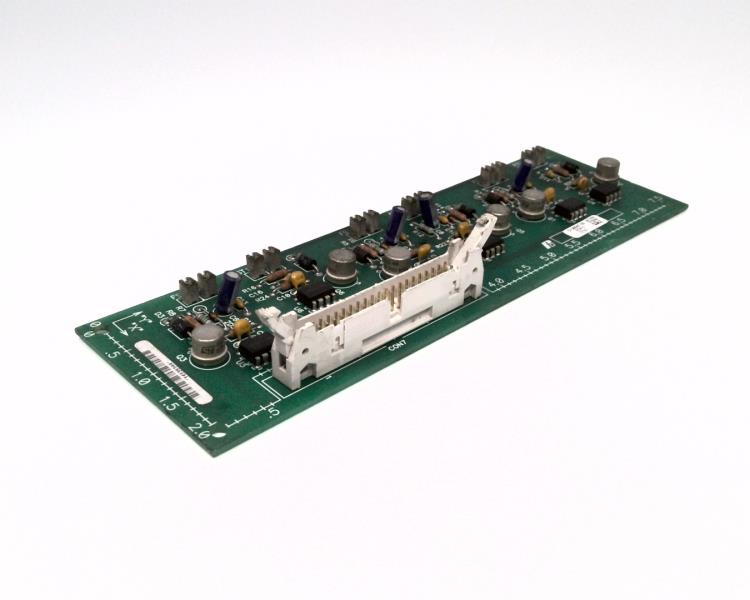

0-56947-50 | Reliance Electric Gate Driver Card

Description

The 0-56947-50 by Reliance Electric is a Gate Driver Card engineered for precision in high-power applications. It manages gate drive signals with high reliability and accuracy, optimizing switching performance for robust power control. Ideal for enhancing the efficiency and stability of electronic systems.

Technical Specifications

Information About 0-56947-50

The Reliance Electric 0-56947-50 is a specialized gate driver card designed for use within industrial drive systems. This component is an integral part of the drive control architecture, providing critical functionality for the effective operation and management of power electronic devices within the system.

As a gate driver card, the 0-56947-50 plays a key role in interfacing between the control circuitry of the drive and the power transistors or thyristors used to regulate motor performance. Its primary function is to provide the necessary drive signals to these power devices, ensuring precise switching and reliable operation. This card is engineered to handle high-speed switching operations, which are essential for achieving efficient and responsive motor control.

The 0-56947-50 card is designed to meet the rigorous demands of industrial environments, offering robust performance and durability. It supports high-voltage and high-current applications, making it suitable for use in demanding drive systems where reliable and accurate gate control is critical. The card’s construction includes features to ensure stable operation under a range of environmental conditions, including variations in temperature and humidity.

In terms of integration, the 0-56947-50 gate driver card is compatible with a variety of drive systems, making it a versatile choice for different applications. It is designed to work seamlessly with other components in the drive system, contributing to the overall efficiency and performance of the drive.

The card’s design includes protective features to safeguard against potential faults and ensure reliable operation. This includes provisions for handling overvoltage, overcurrent, and thermal conditions, which are essential for maintaining the integrity of the drive system and extending the lifespan of the component.

The Reliance Electric 0-56947-50 gate driver card is an essential component for anyone looking to enhance the performance and reliability of their drive systems. Its advanced functionality and robust design make it a dependable choice for industrial applications that require precise and efficient gate driving capabilities. Whether used in new installations or as a replacement part, the 0-56947-50 card provides the necessary control and reliability to support high-performance drive systems.

Manufacturer information

Reliance Electric, a pioneering electrical equipment manufacturer, was founded in 1904. Acquired by Rockwell Automation, it specialized in motors, drives, and industrial automation solutions. Known for innovation, Reliance played a key role in advancing industrial technology.
