0-57160-J | Reliance Electric Regulator Board

The Reliance Electric 0-57160-J Regulator Card is a crucial component designed for precise control and regulation within industrial systems. Manufactured by Reliance Electric, this regulator card is engineered to deliver reliable performance in a variety of applications, where maintaining consistent operational parameters is essential.

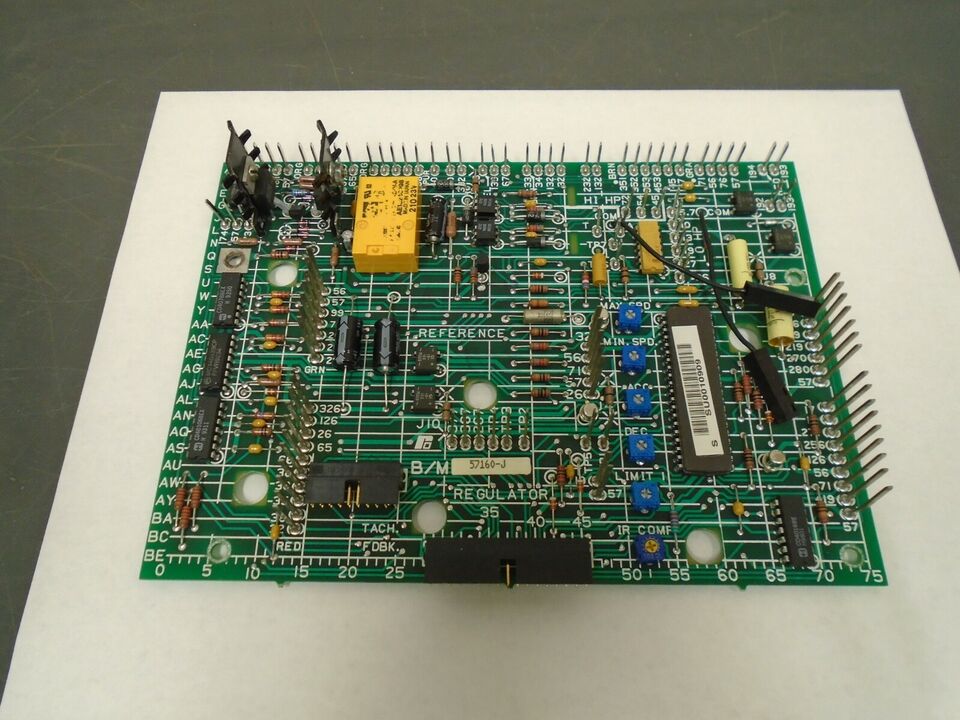

The regulator card is characterized by its rectangular shape, optimized for easy integration into existing systems. The design features drilled corners, facilitating secure mounting within electronic assemblies or control panels. This ensures the card remains stable during operation, reducing the risk of disconnections or misalignments that could impact system performance.

On the surface of the 0-57160-J, a distinctive grid pattern is marked, accompanied by alphanumeric and numeric notations. These markings provide clear identification of components and circuitry, aiding in both installation and troubleshooting. The organized layout enhances the card’s usability, making it straightforward for technicians to identify and interact with specific components during maintenance or configuration.

The card is equipped with several drilled or cut openings across its body, strategically placed to allow for efficient airflow and heat dissipation, as well as to accommodate additional components or connections that may be required in specific applications. These openings are carefully designed to ensure that the card remains robust and durable, even in environments where physical stress or temperature fluctuations are common.

At the leading edge of the regulator card, there are two right-angled male cable connectors. These connectors are designed for secure and reliable attachment of cables, ensuring stable communication and power delivery between the card and other system components. The right-angled design minimizes the space required for installation, making it easier to manage cable routing within compact or densely populated enclosures.

The 0-57160-J is also fitted with multiple lines of terminal pins, each individually labeled for easy identification. These terminal pins provide connection points for various inputs and outputs, allowing the card to interface effectively with other components in the system. The clear labeling of each pin simplifies wiring tasks and reduces the likelihood of errors during installation, contributing to the overall reliability of the system.

In terms of electronic components, the regulator card features a variety of resistors and capacitors, each chosen for their specific performance characteristics. The resistors are made of metal film, known for their accuracy and stability in a wide range of operating conditions. These resistors ensure precise regulation of current and voltage, which is critical for maintaining the desired performance of the connected equipment.

The capacitors used in the 0-57160-J card include aluminum electrolytic, ceramic, and polyester vinyl types. Each type of capacitor serves a specific function within the circuit, contributing to the overall stability and reliability of the regulator card. Aluminum electrolytic capacitors provide high capacitance in a compact form, ideal for smoothing and filtering voltage. Ceramic capacitors are employed for their excellent frequency response and stability, while polyester vinyl capacitors offer reliable performance in high-frequency and pulse applications. Together, these capacitors ensure that the regulator card can maintain consistent voltage and current levels, even in fluctuating conditions.

Overall, the Reliance Electric 0-57160-J Regulator Card is a well-engineered component that combines durability, precision, and ease of use. Its robust design, featuring a rectangular shape with drilled mounting corners and strategically placed openings, ensures it can withstand the demands of industrial environments. The inclusion of clearly labeled terminal pins, right-angled connectors, and high-quality resistors and capacitors further enhances its reliability and performance. Whether used in manufacturing, automation, or other industrial control systems, the 0-57160-J regulator card provides the essential control and regulation needed to maintain optimal system operation.

In summary, the 0-57160-J Regulator Card by Reliance Electric is a dependable and versatile solution for industrial regulation needs. Its combination of robust physical design, precise electronic components, and user-friendly features make it an invaluable asset in any system requiring reliable voltage and current regulation.
