0-57210-30 | Reliance Electric Single-Phase Regulator Board
- Regular price
- $1,815.00
- Sale price
- $1,815.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 0-57210-30
Description
Designed as a part of the Reliance DC2 V*S Controller System, the 0-57210-30 serves as a replacement part and functions as a Regulator Board. It is compatible with basic controllers such as the DC2-40U, DC2-60U, DC2-70U, and DC2-93U.

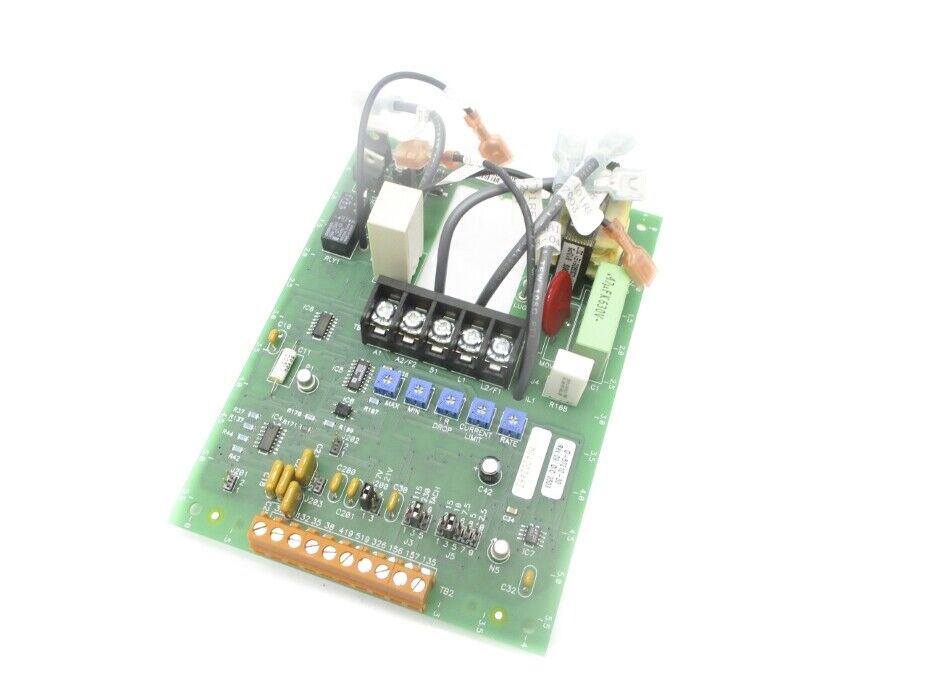

This single-phase regulator board operates at 1-2HP and 50/60 Hz. It features an input voltage of 115/230 VAC with 12.5 amps and an output of 90/100 VDC with 10A. Additionally, it has a DC field rating of 50/100VDC at 2A and a short circuit rating of 10kA. Housed without an enclosure, it is mounted on a raised platform to facilitate airflow around the circuitry, with visible potentiometers, terminal strips, selector jumpers, and pins. The board includes a replaceable power cube containing thyristors and diodes for power conversion.
Technical Specifications
|
Manufacturer |
Reliance Electric |
|
Part # |
0-57210-30 |
|
Category |
Drives |
|
Subcategory |
Drive Board |
|
Series |
DC-2 |
|
HP |
1.0/2.0 HP |
|
Input Voltage |
115/230 VAC |
|
Phase |
1 Phase |
|
Hz |
50/60 Hz |
Information About 0-57210-30
The 0-57210-30 is a circuit card manufactured by Reliance Electric. It is possible that this card was also produced by ABB and Baldor Reliance, depending on the production years.
Designed to be part of the Reliance DC2 V*S Controller System, the 0-57210-30 serves as a replacement part and functions as a regulator board. It contains all the regulator circuitry necessary for the system and is compatible with several basic controllers such as the DC2-40U, DC2-60U, DC2-70U, and DC2-93U controllers.
The 0-57210-30 is a 1-2HP 50/60 Hz single-phase regulator board with an input voltage of 115/230 VAC and 12.5 amps. It delivers an output of 90/100 VDC at 10A, with a DC field rating of 50/100VDC at 2A and a short circuit rating of 10kA. This single card does not include any enclosure or chassis and is mounted on a raised platform to facilitate airflow to the circuitry. Users can easily identify and access various components such as potentiometers, terminal strips, selector jumpers, and pins. Additionally, the board features a replaceable power cube containing power conversion components like thyristors and diodes.
Manufacturer information
Reliance Electric, a pioneering electrical equipment manufacturer, was founded in 1904. Acquired by Rockwell Automation, it specialized in motors, drives, and industrial automation solutions. Known for innovation, Reliance played a key role in advancing industrial technology.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
