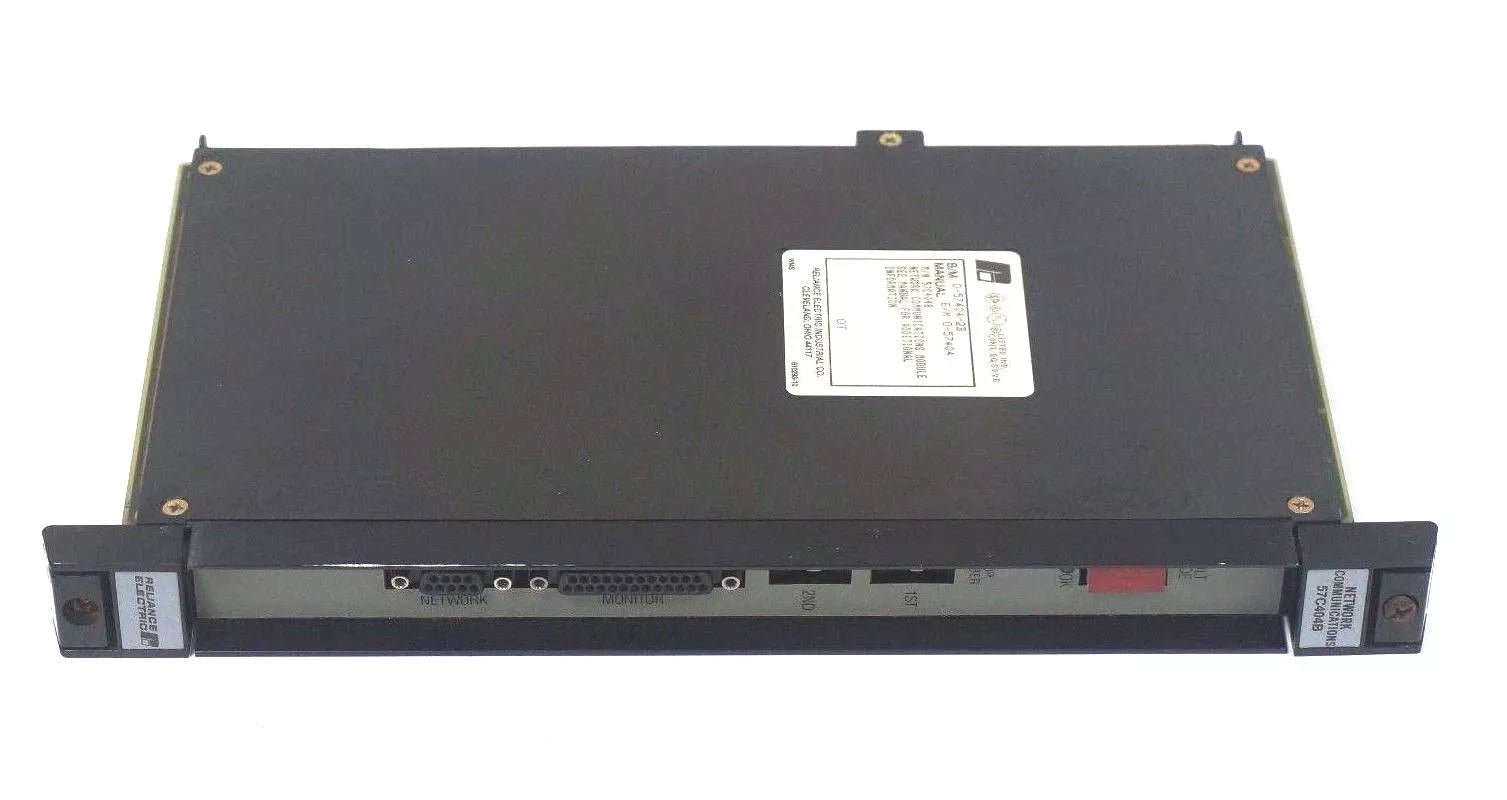

0-57404-2B | Reliance Electric Communication Network Module

Description

The Reliance Electric 0-57404-2B is a communication network module designed for industrial automation systems, enabling seamless data exchange between controllers and networked devices. It ensures reliable communication and system integration, making it ideal for process control, factory automation, and distributed control applications.

Technical Specifications

Information About 0-57404-2B

The Reliance Electric 0-57404-2B is a communication network module designed for the AutoMax PLC series, enabling data exchange between multiple AutoMax racks in distributed control systems. It features RS-232 asynchronous communication, configurable network addressing, and real-time error diagnostics, making it ideal for industrial automation and process control applications.

Key Specifications:

• Model Number: 0-57404-2B
• Communication Interface: RS-232 asynchronous link
• Network Configuration: Two thumbwheel switches for drop number assignment
• Diagnostic Display: 7-segment LED for fault codes
• Indicators & Controls:
  • Green "OK" LED indicator
  • Red "FAULT CODE" button
  • "MONITOR" and "NETWORK" ports
• Connector Type: 25-pin D-shell connector
• Power Dissipation: 20W max


Key Features:

• Seamless Communication: Enables data transfer across multiple AutoMax PLC racks.
• Configurable Network Addressing: Thumbwheel switches allow easy drop number assignment.
• Real-Time Diagnostics: 7-segment LED display for quick fault identification.
• Compact & Efficient Design: Optimized for industrial automation applications.

Applications:

• Distributed Control Systems: Enables inter-rack communication for synchronized control.
• Process Automation: Integrates with AutoMax PLCs for real-time process management.
• Factory Automation: Supports networked control systems for enhanced efficiency.
