0-57408 | Reliance Electric Power Module Interface Drive Board
- Regular price
- $1,274.00
- Sale price
- $1,274.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 0-57408
Description
The Reliance Electric 0-57408 is a power module interface board used in industrial drive control systems. It provides calibrated current adjustment and analog signal interfacing between the drive controller, power module, and analog I/O circuits. The 0-57408 is designed for stable signal transfer and precise current regulation in Reliance Electric drive architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Reliance Electric |
| Category | Drives |
| Part Number | 0-57408 |
| Subcategory | Drive Board |
| Product Type | Power Module Interface Board |
| Function | Power Interface / Current Calibration |
| Interface Type | Analog I/O and Power Module |
| Calibration Feature | Adjustable current calibration terminals |
| Top Terminals | 4 screw terminals |
| Connector Ports | 3 female parallel connectors |
| Drive Controller Port | Dedicated controller interface |
| Analog I/O Port | Dedicated analog signal interface |
| Power Module Port | Dedicated power module interface |
| Mounting Style | Panel / rack-mounted PCB |
| Application | Industrial drive and DCS systems |
Information About 0-57408

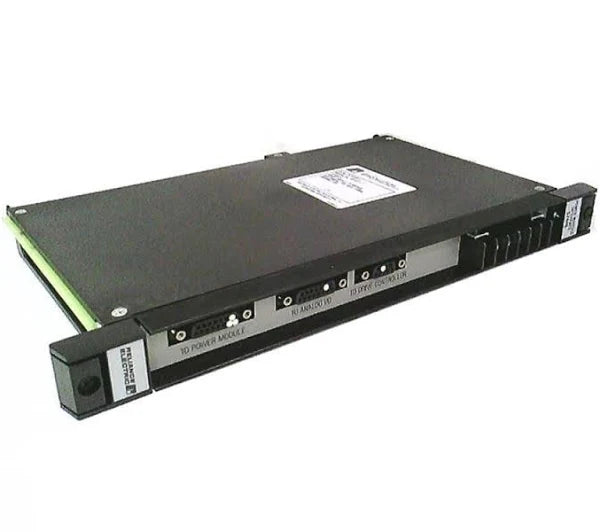

The 0-57408 is a power interface and application board developed by Reliance Electric for use in drive and DCS-based motor control systems. It is constructed as a slim PCB with a front-mounted faceplate that integrates calibration terminals and multi-port signal connectors. The board interfaces directly with drive controllers, analog I/O subsystems, and power modules to coordinate current control and signal exchange. It is typically installed in industrial control cabinets where accurate current calibration and modular drive integration are required.
Key Features:
- Power module interface design: Connects drive controller, analog I/O, and power module circuitry.
- Current calibration terminals: Allows manual adjustment of controlled output current.
- Multi-port connectivity: Dedicated connectors for drive controller, analog I/O, and power module links.
- Compact PCB form factor: Supports space-efficient panel and rack installations.
- Analog signal handling: Facilitates stable low-level signal communication.
- Industrial-grade construction: Built for continuous operation in drive control environments.
- Clear terminal labeling: Simplifies wiring, calibration, and maintenance procedures.
The 0-57408 delivers the reliability and precision required for industrial drive power interfacing and analog control integration.
