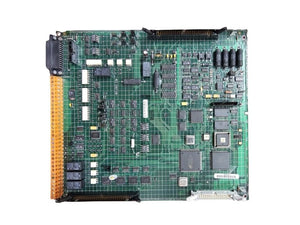

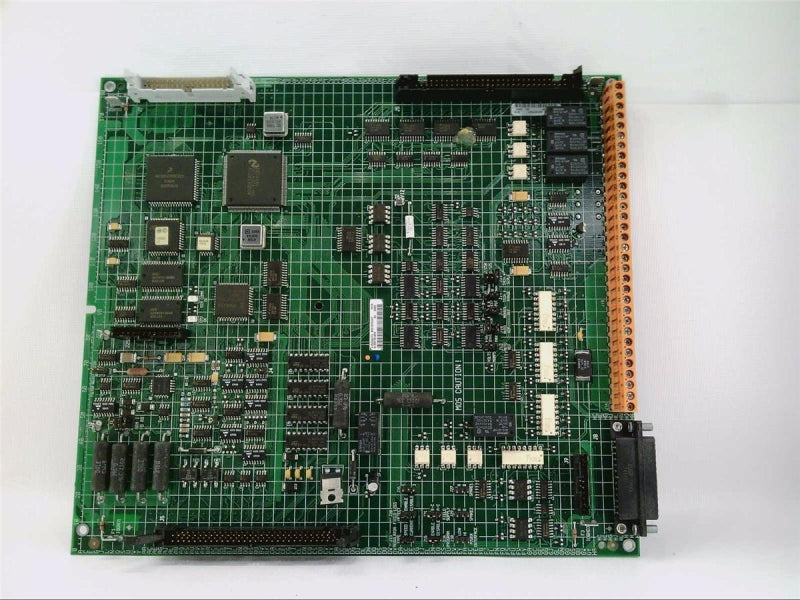

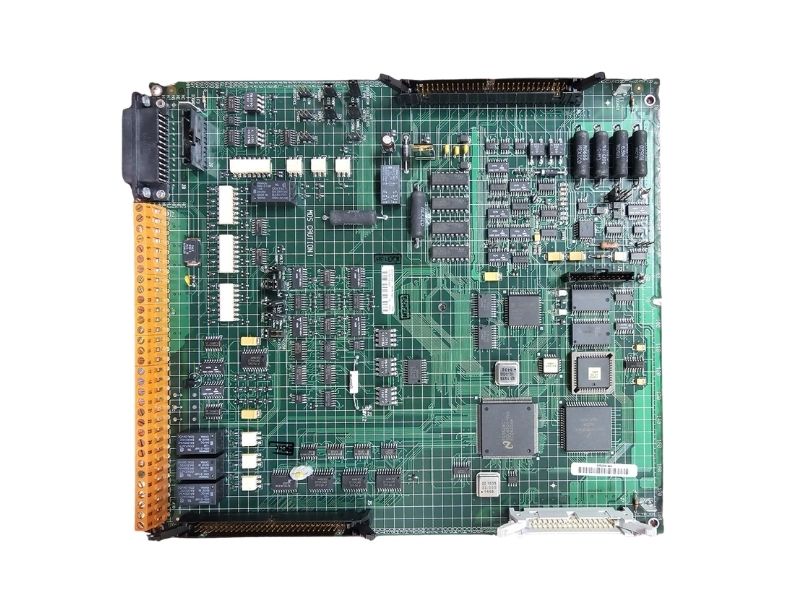

0-58770-430 | Reliance Electric Regulator Assembly Board FlexPak 3000

Description

The 0-58770-430 is a Regulator Assembly Board designed for use in the FlexPak 3000 series by Reliance Electric. It provides regulation and control functions necessary for the operation of the FlexPak 3000 drive systems. This board is essential for maintaining system stability and ensuring proper voltage and current regulation in industrial applications.

Technical Specifications

Information About 0-58770-430

The 0-58770-430 is a Regulator Assembly Board developed by Reliance Electric, specifically designed for use in the FlexPak 3000 Digital DC Drives series. This board plays a crucial role in the regulation and control functions of the drive systems, ensuring that the operational parameters are maintained within specified limits for optimal performance and reliability. As a key component in the drive's control architecture, the 0-58770-430 helps manage voltage and current regulation, contributing to the overall stability and efficiency of the FlexPak 3000 drive systems.

Classified under the category of Drives and subcategory of Drive Boards, the 0-58770-430 is a printed circuit board (PCB) designed to be integrated seamlessly into the FlexPak 3000 drive system. Weighing just 1.00 lbs, this regulator board is lightweight, facilitating easy installation and replacement. Its compact design ensures that it can fit into existing control cabinets without requiring significant space, making it an ideal choice for both new installations and retrofitting into older systems.

The 0-58770-430 operates under software version V4.3, indicating that it is equipped with the latest control algorithms and features necessary for modern industrial applications. The software version is integral to the board's functionality, providing the logic and control sequences that enable precise regulation of the drive system's parameters. This version ensures compatibility with other components of the FlexPak 3000 series, allowing for smooth integration and coordinated operation across the entire drive system.

This regulator assembly board is also identified by an alternate model number, 58770-430, providing flexibility in part identification and sourcing. The alternate model number ensures that users and maintenance personnel can easily identify and locate the board within their inventory systems, facilitating quick replacements and minimizing downtime. The clear labeling of the part number and alternate model number helps maintain consistency in maintenance records and parts management.

The 0-58770-430 Regulator Assembly Board is engineered to deliver reliable performance in demanding industrial environments. Its robust design and high-quality components ensure long-term durability and resistance to common operational stresses, such as electrical noise, temperature fluctuations, and mechanical vibrations. The board's construction is optimized to provide stable performance even under varying load conditions, making it suitable for a wide range of industrial applications where reliability and consistency are critical.

In its role as a regulator board, the 0-58770-430 is responsible for monitoring and controlling the output voltage and current of the drive system. This functionality is essential for protecting the drive and connected equipment from overvoltage, undervoltage, overcurrent, and other electrical anomalies that could potentially cause damage or reduce system efficiency. By maintaining precise control over these parameters, the 0-58770-430 ensures that the FlexPak 3000 drive system operates within its optimal performance range, enhancing the overall productivity and safety of the application.

The board's integration into the FlexPak 3000 series reflects its importance in the broader control strategy of Reliance Electric's drive systems. The FlexPak 3000 series is known for its advanced digital control capabilities, and the inclusion of the 0-58770-430 board ensures that these capabilities are fully realized. The board's ability to execute complex control functions makes it a vital component in achieving the high levels of performance and efficiency that are expected from the FlexPak 3000 drives.

In summary, the 0-58770-430 Regulator Assembly Board by Reliance Electric is a critical component for maintaining the performance and reliability of the FlexPak 3000 Digital DC Drives. Its lightweight design, robust construction, and integration with software version V4.3 make it an effective solution for voltage and current regulation in industrial drive applications. The board's role in ensuring precise control of electrical parameters helps protect both the drive and the connected equipment, contributing to the overall safety and efficiency of the industrial process.

The 0-58770-430 is a versatile and reliable regulator board that meets the needs of modern industrial control systems. Its compatibility with the FlexPak 3000 series, combined with its proven performance in regulating drive output, makes it a valuable asset for facilities seeking to optimize their drive systems. Whether used in new installations or as a replacement part, the 0-58770-430 Regulator Assembly Board provides the functionality and reliability necessary to support efficient and effective industrial operations.

Manufacturer information

Reliance Electric, a pioneering electrical equipment manufacturer, was founded in 1904. Acquired by Rockwell Automation, it specialized in motors, drives, and industrial automation solutions. Known for innovation, Reliance played a key role in advancing industrial technology.
