005815XL | Silent Knight IntelliKnight SLC Expander for 5820XL Fire Alarm Panels
- Regular price
- $428.00
- Sale price
- $428.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 005815XL
Description

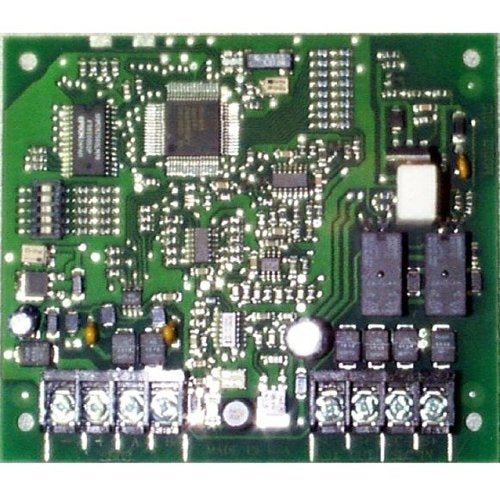

The Silent Knight 005815XL is a Signaling Line Circuit (SLC) Expander designed for the IntelliKnight® 5820XL and 5820XL EVS Addressable Fire Alarm Control Panels. Manufactured by Honeywell, this module expands the system’s capacity by adding up to 127 addressable devices per expander. It enhances scalability and communication efficiency across fire alarm networks while maintaining system reliability and code compliance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Systems |
| Part Number | 005815XL |
| Subcategory | Signaling Line Circuit Expander |
| Product Line | IntelliKnight |
| Compatibility | 5820XL and 5820XL EVS Addressable Fire Alarm Control Panels |
| Expansion Capacity | 99 Modules and 99 Detectors or 127 Addressable Devices |
| Maximum Expanders per System | 3 |
| Communication Interface | RS-485 System Bus |
| Wiring Configuration | Supports Style 4 (Class B) and Style 6 (Class A) |
| LED Indicator | Green LED for communication status |
| Certifications | UL 864, FM, CSFM, MEA, NFPA 72 and 101 |
| Country of Origin | United States |
| Manufacturer | Honeywell International, Inc. |
| Product Type | Panel Extender / SLC Controller |
| Production Status | Active |
| Dimensions | 5 × 5 in |
| Weight | 0.1 lbs |
Information About 005815XL
The 005815XL is part of Silent Knight’s IntelliKnight Series, engineered to extend fire alarm control panel capabilities through the RS-485 communication bus. It supports both Class B (Style 4) and Class A (Style 6) wiring configurations, ensuring installation flexibility across various building types. Each expander provides communication for up to 99 modules and 99 detectors or 127 addressable devices, with up to three expanders supported per system for large-scale coverage. A status LED indicator confirms active communication, allowing for efficient diagnostics and system maintenance.
Key Features
- High Capacity Expansion: Adds up to 127 addressable devices to an IntelliKnight fire alarm control panel.
- Multiple Expanders Supported: Up to three 5815XL modules can be used per system for increased scalability.
- RS-485 Communication Bus: Ensures fast and reliable communication between control panel and devices.
- LED Communication Indicator: Provides visual confirmation of proper data exchange and operation.
- Full IntelliKnight Compatibility: Works seamlessly with 5820XL and 5820XL EVS control panels.
- Supports Class A and B Wiring: Offers installation flexibility for new and retrofit applications.
- Certified Safety Compliance: UL 864, FM, CSFM, MEA, and NFPA 72/101 approved for fire protection use.
The 005815XL delivers the reliability and precision required for professional-grade fire alarm system expansion and monitoring.
