005880 | Silent Knight 5880 LED Input/Output Driver Module for Addressable Fire Control Panels
- Regular price
- $489.00
- Sale price
- $489.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 005880
Description

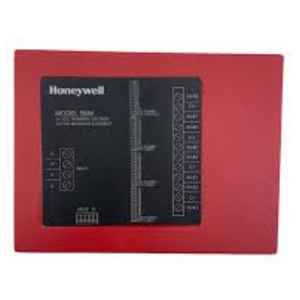

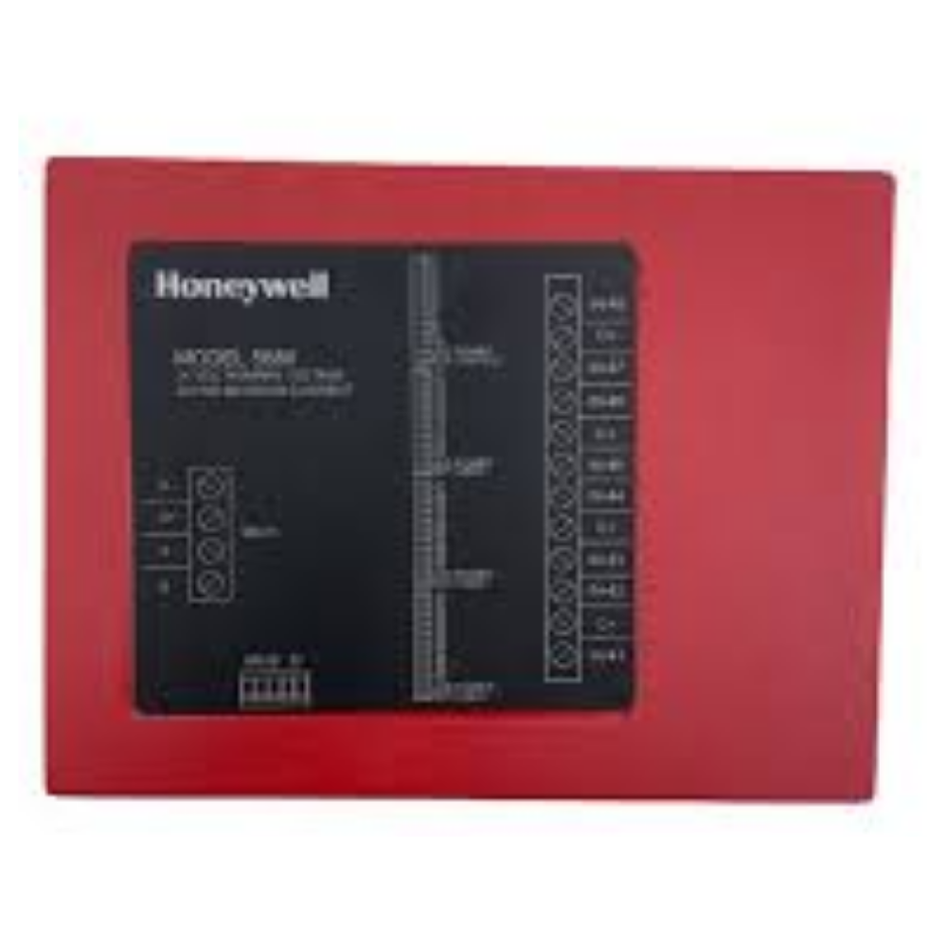

The Silent Knight 005880 (5880) is an LED input/output driver module designed to enhance the capabilities of compatible addressable fire alarm control panels. It provides up to eight programmable inputs and outputs, allowing customized annunciator and system interface configurations for flexible fire alarm monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Equipment |
| Part Number | 005880 |
| Subcategory | LED Driver Module |
| Model | 5880 |
| Type | Input/Output LED driver module |
| Compatible Panels | Silent Knight 5820XL and other compatible addressable FACPs |
| Inputs/Outputs | 8 programmable LED I/O points |
| Function | Expands annunciator and control capabilities |
| Communication | Connects via panel communication bus |
| Power Source | Supplied by FACP bus power |
| Mounting Type | Enclosure or backbox installation |
| Display Interface | Supports LED annunciator customization |
| Operating Voltage | 24VDC nominal (panel bus-powered) |
| Usage | For remote annunciators, zone indicators, and custom monitoring panels |
| Construction | Durable circuit board with protective enclosure |
| Approvals | UL listed for fire protective signaling systems |
| Dimensions | 12 × 9 × 2 in |
| Weight | 1.5 lbs |
Information About 005880
The Silent Knight 005880, also known as the 5880 LED I/O Driver Module, provides an efficient interface between a compatible addressable fire alarm control panel and custom-built remote annunciators. This module enables system designers and installers to expand and tailor indicator and control functions to specific building or site requirements. Featuring eight programmable input/output points, it supports LED annunciation, key switches, or status indicators for fire, supervisory, or trouble conditions. The 5880 communicates directly with the control panel via the system bus, allowing seamless integration with the 5820XL and similar Silent Knight addressable systems.
Key Features
- Eight Programmable Inputs/Outputs: Provides flexible configuration for custom annunciation and control applications.
- Enhanced System Customization: Enables the creation of user-defined remote annunciators or LED indicators for zone status or alarms.
- Seamless Panel Integration: Designed to operate with Silent Knight addressable FACPs, including the 5820XL model.
- Compact and Durable Design: Built for easy installation within control enclosures or remote display panels.
- Direct Bus Communication: Interfaces with the control panel via the panel communication bus for synchronized operation.
- UL Listed for Fire Protection: Certified for use in commercial and institutional life safety systems.
- Low Power Consumption: Operates from the control panel’s power bus, minimizing system load.
- Flexible Application: Suitable for remote annunciation, system feedback, and external indicator control.
The 005880 delivers the reliability and precision required for fire alarm systems that demand customizable annunciation and input/output expansion for complex installations.
Description
The Silent Knight 005880 (5880) is an LED input/output driver module designed to enhance the capabilities of compatible addressable fire alarm control panels. It provides up to eight programmable inputs and outputs, allowing customized annunciator and system interface configurations for flexible fire alarm monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Equipment |
| Part Number | 005880 |
| Subcategory | LED Driver Module |
| Model | 5880 |
| Type | Input/Output LED driver module |
| Compatible Panels | Silent Knight 5820XL and other compatible addressable FACPs |
| Inputs/Outputs | 8 programmable LED I/O points |
| Function | Expands annunciator and control capabilities |
| Communication | Connects via panel communication bus |
| Power Source | Supplied by FACP bus power |
| Mounting Type | Enclosure or backbox installation |
| Display Interface | Supports LED annunciator customization |
| Operating Voltage | 24VDC nominal (panel bus-powered) |
| Usage | For remote annunciators, zone indicators, and custom monitoring panels |
| Construction | Durable circuit board with protective enclosure |
| Approvals | UL listed for fire protective signaling systems |
| Dimensions | 12 × 9 × 2 in |
| Weight | 1.5 lbs |
Information About 005880
The Silent Knight 005880, also known as the 5880 LED I/O Driver Module, provides an efficient interface between a compatible addressable fire alarm control panel and custom-built remote annunciators. This module enables system designers and installers to expand and tailor indicator and control functions to specific building or site requirements. Featuring eight programmable input/output points, it supports LED annunciation, key switches, or status indicators for fire, supervisory, or trouble conditions. The 5880 communicates directly with the control panel via the system bus, allowing seamless integration with the 5820XL and similar Silent Knight addressable systems.
Key Features
- Eight Programmable Inputs/Outputs: Provides flexible configuration for custom annunciation and control applications.
- Enhanced System Customization: Enables the creation of user-defined remote annunciators or LED indicators for zone status or alarms.
- Seamless Panel Integration: Designed to operate with Silent Knight addressable FACPs, including the 5820XL model.
- Compact and Durable Design: Built for easy installation within control enclosures or remote display panels.
- Direct Bus Communication: Interfaces with the control panel via the panel communication bus for synchronized operation.
- UL Listed for Fire Protection: Certified for use in commercial and institutional life safety systems.
- Low Power Consumption: Operates from the control panel’s power bus, minimizing system load.
- Flexible Application: Suitable for remote annunciation, system feedback, and external indicator control.
The 005880 delivers the reliability and precision required for fire alarm systems that demand customizable annunciation and input/output expansion for complex installations.
