Product Description P/N: 056B17F5319H
Description

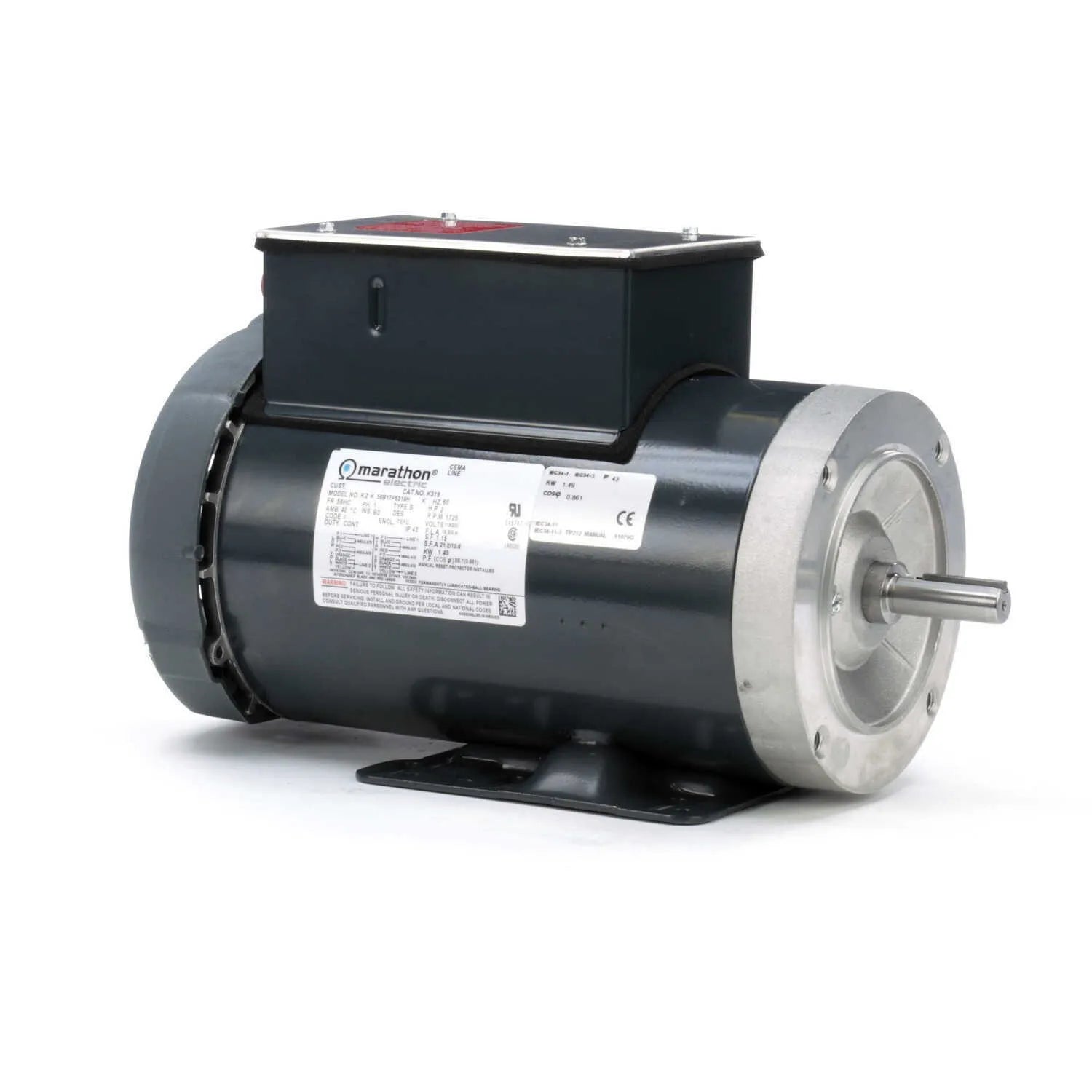

The Marathon 056B17F5319H is a single-phase general-purpose AC motor designed for continuous-duty industrial and commercial applications. It delivers 2 horsepower at approximately 1800 RPM and operates on 115/230 VAC power with a TEFC enclosure for environmental protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Marathon |
| Category | Motors/GearBox/Clutch |
| Part Number | 056B17F5319H |
| Subcategory | Motor |
| Motor Type | General Purpose AC Motor |
| Phase | 1 |
| Output Power | 2 HP |
| Voltage Rating | 115/230 VAC |
| Full Load Current | 18.8 / 9.4 A |
| Speed | 1725 rpm |
| Frequency | 60 Hz |
| Service Factor | 1.15 |
| Frame Size | 56HC |
| Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Insulation Class | F |
| Bearing Type | Ball |
| Torque Rating | 11.1 ft-lb |
| Rotation | Selective CCW |
| Number of Speeds | 1 |
| Mounting Type | Rigid Base |
| Shaft Size | 0.63 in dia x 2.06 in L |
| Housing Material | Rolled Steel |
| Ambient Temperature | 40 °C |
| Duty Rating | Continuous |
| Dimensions | 14.82 in L x 7.36 in W x 8.99 in H |
Information About 056B17F5319H
The 056B17F5319H is a Marathon-manufactured single-phase motor designed for dependable operation in industrial and commercial environments. It features a 56HC frame that conforms to standard mounting dimensions, allowing straightforward integration into existing machinery. The motor is rated for continuous duty and incorporates a capacitor-start design to provide reliable starting torque and smooth acceleration. Its rolled steel construction and TEFC enclosure support long-term durability and stable performance in environments exposed to dust or moisture.
Key Features
- Single-phase power configuration: Designed for applications where three-phase power is unavailable while maintaining consistent torque and speed characteristics.
- Capacitor start design: Enhances starting performance and ensures smooth motor acceleration under load.
- Totally Enclosed Fan Cooled enclosure: Protects internal components from dust, debris, and moisture while supporting effective heat dissipation.
- Continuous-duty operation: Engineered for extended runtime in industrial and commercial equipment without performance degradation.
- Insulation Class F system: Provides increased thermal tolerance and electrical reliability under demanding operating conditions.
- Industry-standard 56HC frame: Enables easy mechanical replacement and compatibility with common motor mounts.
- Rolled steel housing: Delivers mechanical strength and long-term durability in harsh operating environments.
The 056B17F5319H delivers the reliability and precision required for continuous-duty single-phase motor applications in industrial and commercial settings.
