056B34F5328 | Marathon General Purpose Motor
- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
-
Do you need more quantity?
Product Description P/N: 056B34F5328
Description

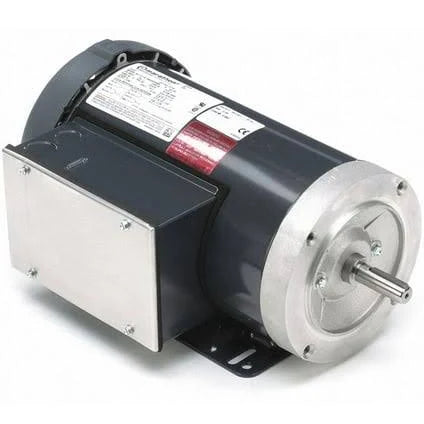

The Marathon 056B34F5328 is a general-purpose motor designed for various industrial and commercial applications. With a power rating of 3 horsepower (HP), it operates efficiently on a voltage range of 208-230 volts, drawing a current of 11.8 amps. Operating on a single-phase electrical system, it achieves a rotational speed of 3450 revolutions per minute (RPM) at a frequency of 60 Hertz (Hz).
Encased in a Totally Enclosed Fan Cooled (TEFC) enclosure, the motor offers robust protection against environmental factors such as dust, moisture, and debris, ensuring reliable performance in challenging conditions. Its 56HC frame provides a sturdy and compact structure, while the bolt-on base and foot-mounted design facilitate easy installation and secure mounting.
Technical Specifications
Part # |
056B34F5328 |
Category |
Motors/GearBox/Clutch |
Subcategory |
Motor |
Phase |
1 |
Output HP |
3 Hp |
Output KW |
2.2 kW |
Voltage |
208-230 V |
Speed |
3450 rpm |
Service Factor |
1.15 |
Frame |
56HC |
Enclosure |
Totally Enclosed Fan Cooled |
Thermal Protection |
No Protection |
Efficiency |
84 % |
Ambient Temperature |
40 °C |
Frequency |
60 Hz |
Current |
13.1-11.8 A |
Power Factor |
99.2 |
Duty |
Continuous |
Insulation Class |
B |
Design Code |
NKVA Code: H |
Drive End Bearing Size |
6205 |
Opp Drive End Bearing Size |
6205 |
UL |
Recognized |
CSA |
Y |
CE |
Y |
IP Code |
43 |
Information About 056B34F5328
The Marathon 056B34F5328 is a general-purpose motor designed for various industrial applications. With a power rating of 3 HP, it operates efficiently within a voltage range of 208-230 volts. The motor draws a current of 11.8 amps and operates on a single-phase supply. Running at a speed of 3450 RPM (revolutions per minute) with a frequency of 60 Hz, it ensures consistent performance.
Enclosed in a Totally Enclosed Fan Cooled (TEFC) enclosure, the motor offers protection against dust, dirt, and moisture, making it suitable for harsh operating environments. Its 56HC frame construction provides durability and stability during operation. Additionally, the motor features a bolt-on base and foot-mounted design, facilitating easy installation and maintenance.
Constructed with a rolled steel frame, the Marathon 056B34F5328 motor ensures robustness and reliability, suitable for long-term use in industrial settings. It complies with insulation class B standards, ensuring safety and preventing electrical hazards.
Manufacturer information
Marathon Electric is a leading manufacturer of electric motors, offering a wide range of industrial and commercial solutions. Known for quality and innovation, Marathon motors power various applications globally, providing reliable and energy-efficient solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
