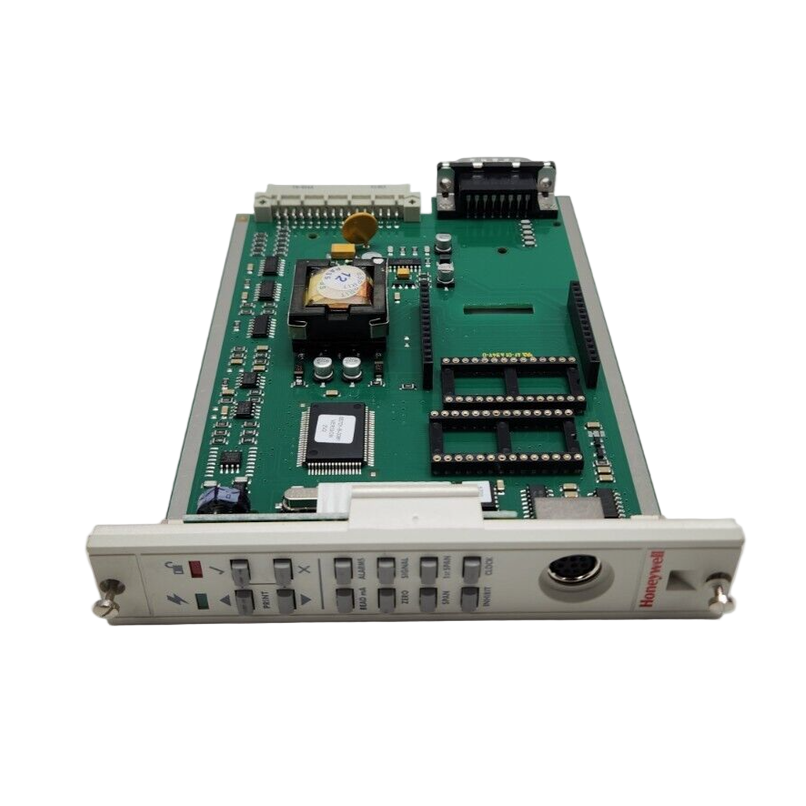

05701-A-0361 | Honeywell C300 Series Engineering Control Card
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 05701-A-0361
Description
The Honeywell 05701-A-0361 is an engineering control card from the C300 Series, designed for use in industrial automation and process control systems. It provides efficient power management and stable control operation within 18–32 V DC environments, supporting reliable communication and processing across distributed control systems (DCS).
Technical Specifications
Condition | New/Never Used Surplus |
Brand | Honeywell |
Category | Industrial Automation |
Part Number | 05701-A-0361 |
Subcategory | Control Card |
Series | C300 Series |
Product Type | Engineering Control Card |
Power Supply | 18 V DC to 32 V DC |
Power Consumption | 1.5 W (Typical) |
Dimensions | 132 mm × 25 mm × 170 mm |
Weight | 0.31 lbs |
Operating Temperature Range | -40°C to +70°C (-40°F to +158°F) |
Mounting Type | Chassis / Card Slot Mount |
Function | Process and Control Signal Interface |
Communication Type | Internal System Bus Interface |
Construction | High-Density PCB with Protective Coating |
Cooling Method | Convection Cooled |
Application | Distributed Control Systems, Industrial Automation |
Compliance | Meets Industrial EMC and Safety Standards |
Information About 05701-A-0361
The 05701-A-0361 belongs to the Honeywell C300 Series, a line of high-performance engineering cards used in process automation and industrial control systems. This module functions as a control and communication interface within Honeywell’s distributed control framework, managing input/output processing and real-time logic control. It operates efficiently between 18 and 32 V DC with a typical power consumption of 1.5 W, making it suitable for energy-conscious installations. Its compact form factor and robust PCB design ensure durability in demanding environments, while the wide operating temperature range of -40°C to +70°C allows reliable use in harsh industrial conditions.
Key Features:
- Efficient DC Power Operation: Functions on 18–32 V DC with minimal 1.5 W power draw, ensuring energy-efficient performance.
- Compact Modular Design: Measures 132 × 25 × 170 mm, optimized for installation in C300 Series control racks.
- Wide Temperature Range: Operates reliably from -40°C to +70°C for industrial and field environments.
- High-Quality PCB Construction: Features durable materials and coatings for long-term stability and electrical protection.
- Seamless System Integration: Designed to interface directly with C300 Series system buses and controllers.
- Low Heat Output: Internal convection cooling supports continuous operation without external fans.
- Precision Control Functionality: Processes and distributes control logic within Honeywell’s process automation systems.
- Rugged and Reliable: Engineered for continuous industrial use under vibration, thermal, and electrical stress conditions.
The 05701-A-0361 delivers the reliability and precision required for process control and automation, ensuring consistent communication and processing in Honeywell’s C300 system architecture.
