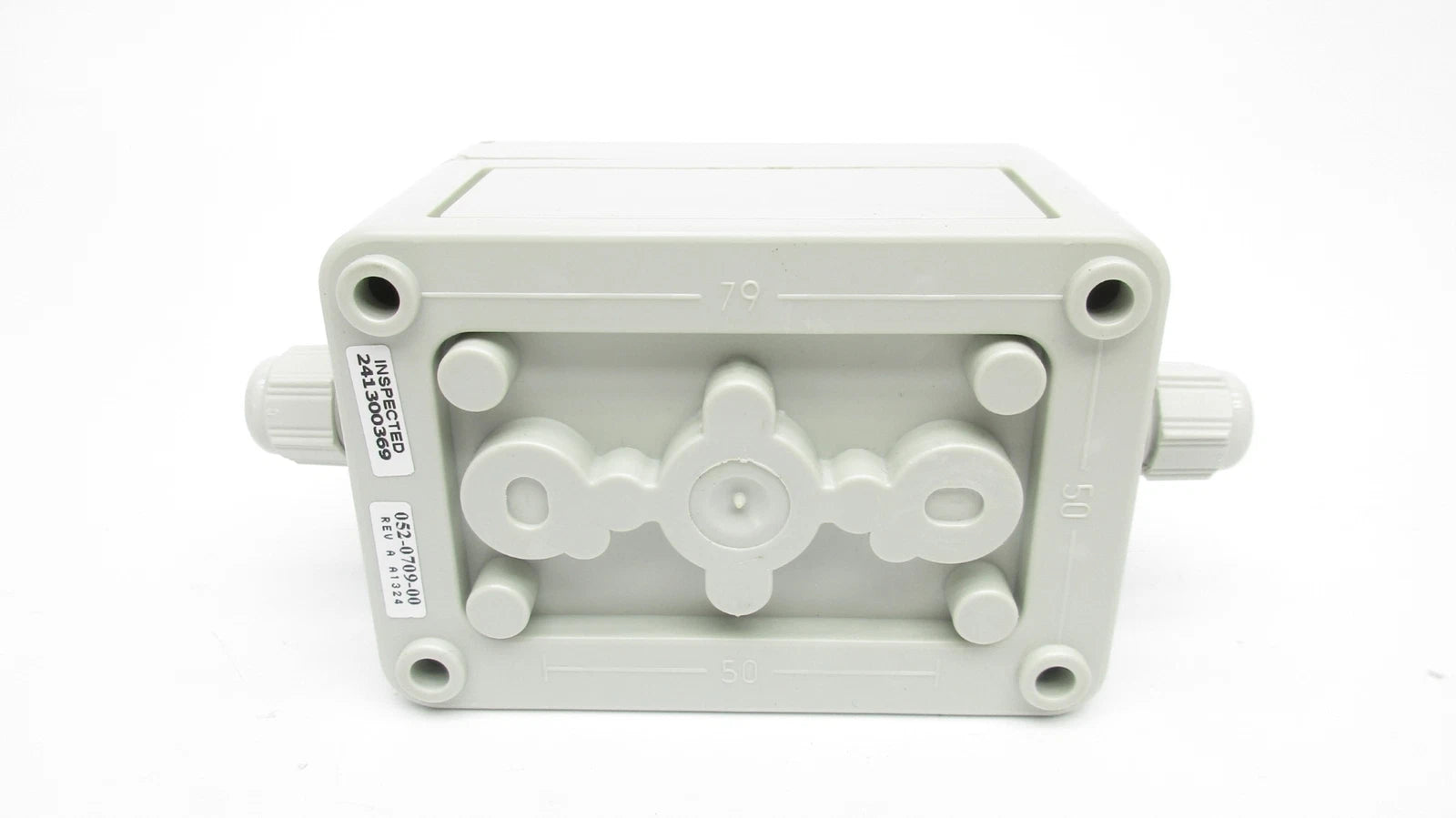

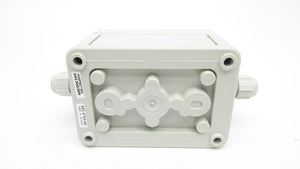

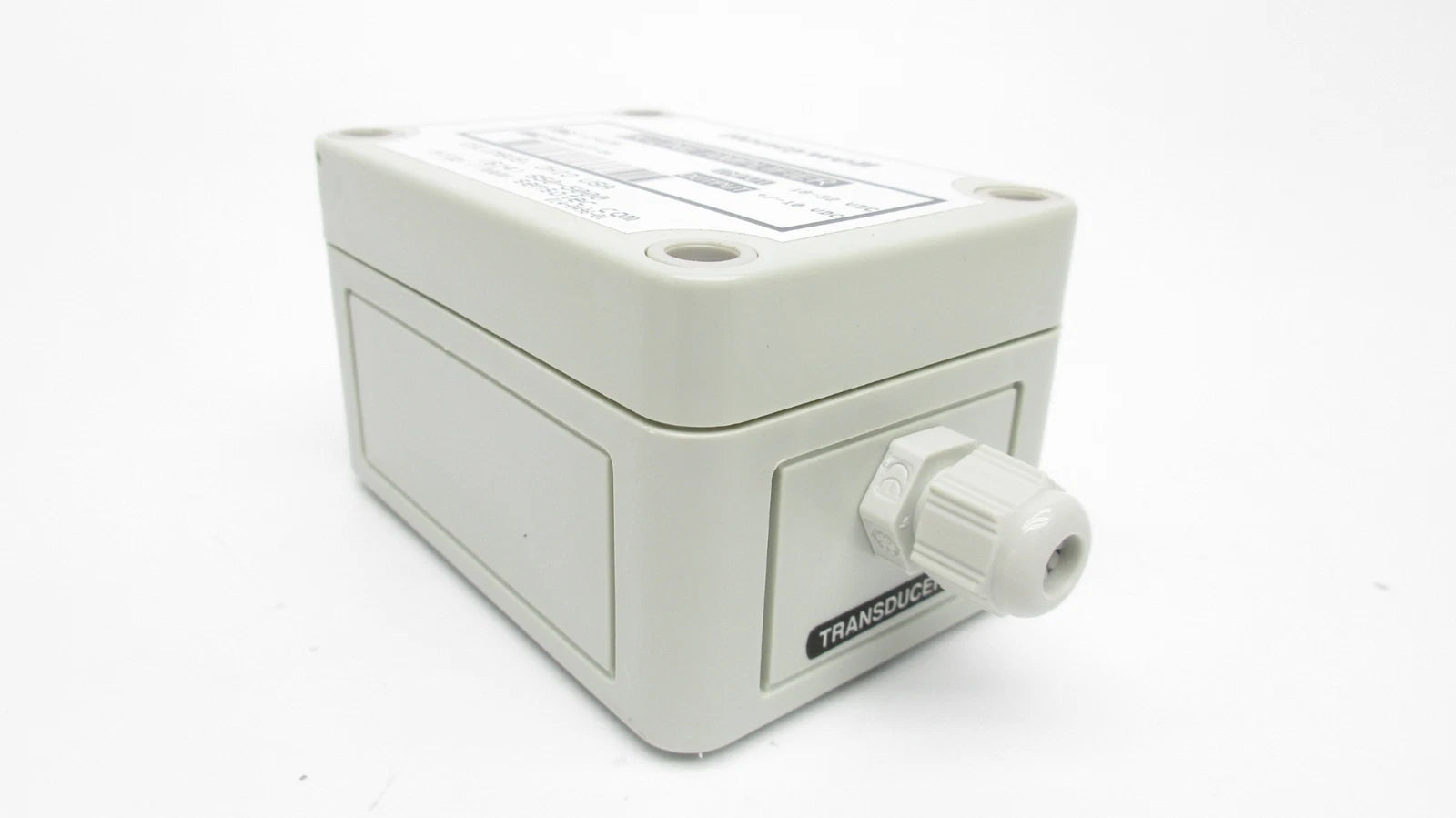

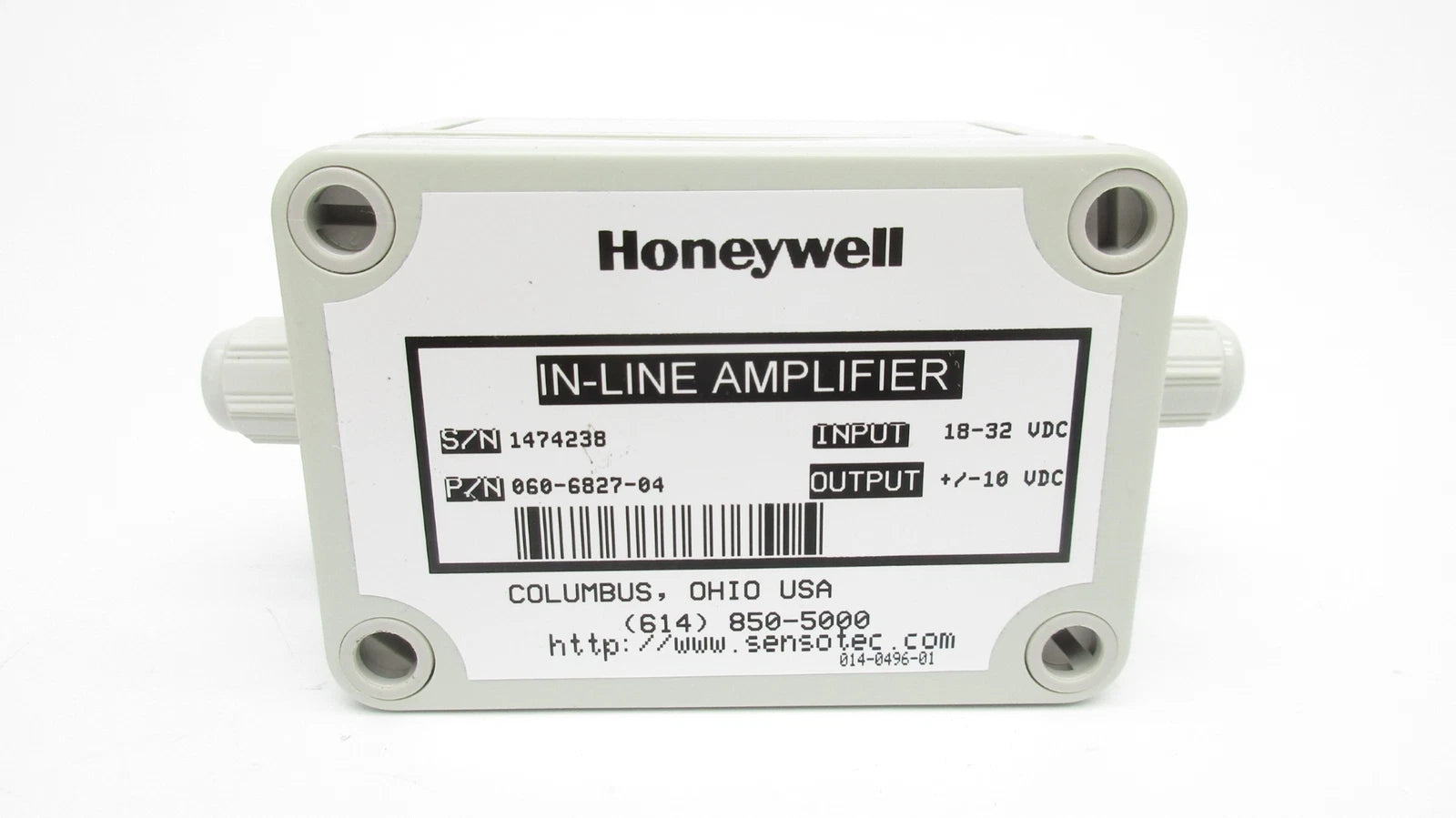

060-6827-04 | Honeywell UV-10 Universal Inline Analog Amplifier ±10 VDC Output (18–32 VDC Supply)
- Regular price
- $925.00
- Sale price
- $925.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 060-6827-04
Description
The Honeywell 060-6827-04 UV-10 Universal Inline Amplifier is a precision analog signal conditioner that converts low-level millivolt outputs from strain-gauge transducers into a stable ±10 VDC output. It provides regulated bridge excitation, high linearity, and fast response for use with force, torque, and pressure sensors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell Sensing and Productivity Solutions |
| Category | Sensors & Switches |
| Part Number | 060-6827-04 |
| Subcategory | Sensor Amplifier |
| Series | UV-10 |
| Amplifier Type | Analog output, inline strain gauge amplifier |
| Number of Channels | 1 |
| Supply Voltage | 18 VDC to 32 VDC |
| Output Type | ±10 VDC analog |
| Output Current | 2.5 mA |
| Current Draw | 60 mA |
| Excitation Voltage | 3 VDC, 5 VDC, or 10 VDC @ 50 mA |
| Transducer Type | Bridge-based sensor (strain gauge) |
| Linearity | 0.02 % of full scale |
| Frequency Response (-3 dB) | 7000 Hz (350 Ω bridge) / 5000 Hz (5000 Ω bridge) |
| Rise Time (0–90 %) | 54 ms (350 Ω bridge), 78 ms (5000 Ω bridge) |
| Signal-to-Noise Ratio | 65 dB |
| Power Supply Rejection | > 110 dB |
| Zero Adjustment (Coarse/Fine) | ±30 % / ±15 % |
| Span Adjustment | 1 mV/V to 20 mV/V ±25 % fine |
| Operating Temperature | –15 °C to 71 °C (5 °F to 160 °F) |
| Sealing | IP66 / NEMA 4 |
| Mounting | #6 or #8 screw chassis mount |
| Case Material | Plastic or painted aluminum |
| Dimensions (Plastic Case) | 63.5 mm H × 96.25 mm L × 53.3 mm D (2.5 × 3.75 × 2.1 in) |
| Dimensions (Aluminum Case) | 76.2 mm H × 127 mm W × 63.5 mm D (3 × 5 × 2.5 in) |
| Compliance | RoHS Compliant |
| Weight | 0.60 lbs |
Information About 060-6827-04
The 060-6827-04 (Series UV-10) amplifier is designed for bridge-based transducers and delivers highly stable excitation voltages of 3 VDC, 5 VDC, or 10 VDC. It operates from an 18 VDC to 32 VDC supply and provides a ±10 VDC analog output proportional to the input signal. Featuring coarse and fine zero adjustments, span adjustment up to ±25 %, and a built-in solid-state shunt calibration relay, it allows quick setup and calibration without disconnecting the transducer. Its compact, IP66/NEMA 4-rated enclosure ensures reliable operation in demanding industrial environments such as testing, automation, and process control.
Key Features:
- Universal Bridge Amplifier: Designed for strain-gauge and bridge-based transducers.
- Wide Excitation Options: Selectable 3 VDC, 5 VDC, or 10 VDC regulated excitation for sensor compatibility.
- Precision Output: Provides stable ±10 VDC analog signal proportional to the transducer input.
- Wide Supply Range: Operates on 18 VDC to 32 VDC power for flexible integration.
- High Accuracy: Linearity within ±0.02 % of full scale ensures measurement precision.
- Solid-State Shunt Calibration: On-board calibration relay allows fast verification of system accuracy.
- Fast Response: 7000 Hz bandwidth with 54–78 ms rise time supports dynamic applications.
- Environmental Protection: IP66/NEMA 4 housing ensures durability in harsh industrial environments.
- Adjustable Zero and Span: Coarse (±30 %) and fine (±15 %) zero plus ±25 % span trim.
- Compact Mounting: Chassis-mount design using #6 or #8 screws simplifies installation.
- Global Compliance: RoHS-compliant design, suitable for worldwide use.
The 060-6827-04 UV-10 amplifier delivers stable, accurate, and rugged performance for precision signal conditioning across industrial and laboratory applications.
