066-01171-2704 | Honeywell IVA-81D TCAS Traffic & Vertical Speed Indicator
- Regular price
- $11,367.00
- Sale price
- $11,367.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 066-01171-2704
Description

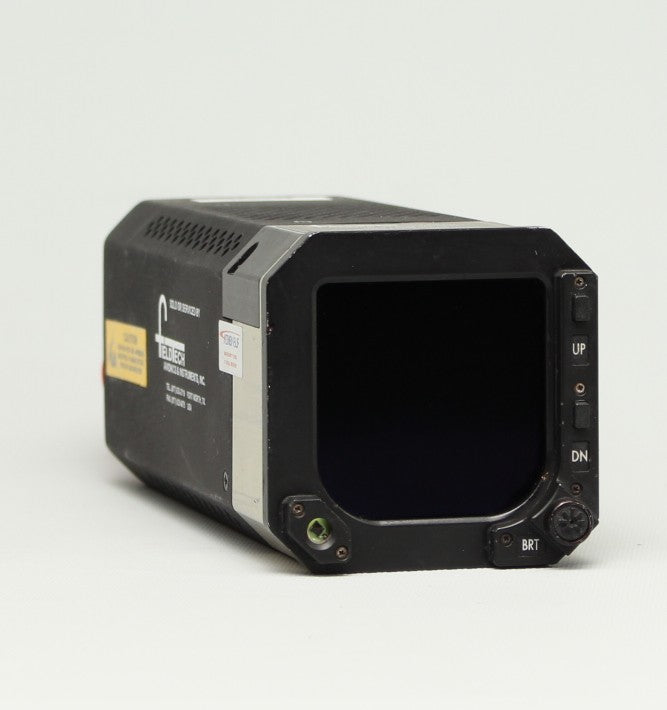

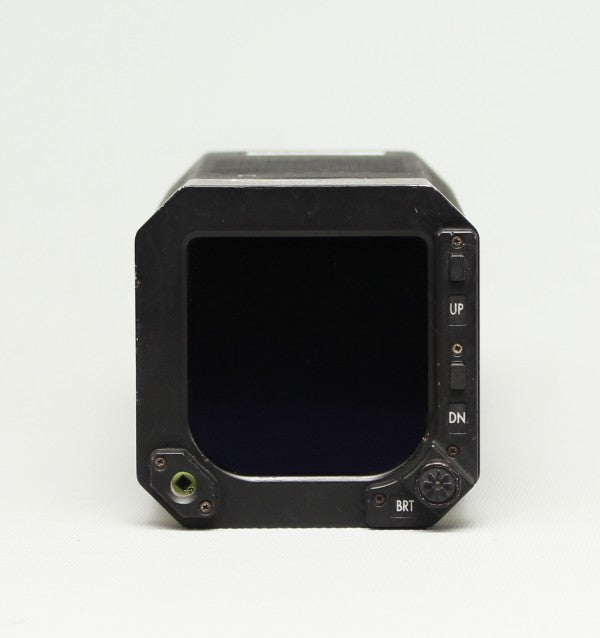

The Honeywell 066‑01171‑2704 is a compact cockpit display combining vertical speed indication with Traffic Advisory (TA) and Resolution Advisory (RA) functionalities. Designed for TCAS II systems, it presents critical traffic and collision avoidance information clearly and reliably. The unit features pushbutton range selection and brightness control to suit pilot needs and cockpit lighting conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AXIS Communications |
| Category | Camera & Vision |
| Part Number | P3717-PLE |
| Subcategory | Video Camera |
| Image Sensor | 4 × 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal 3–6 mm, F1.8–2.6 |
| Field of View (H/V/D) | 96°–49° / 53°–27° / 113°–55° |
| Minimum Illumination | Color: 0.17 lux, B/W: 0.04 lux, 0 lux with IR on |
| IR Range | 15 m (50 ft) or more |
| Resolution | 4 × 1920×1080 to 160×90 |
| Frame Rate | Up to 25/30 fps (50/60 Hz) |
| Video Compression | H.264 (Baseline, Main, High) and Motion JPEG |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, NTP, SNMP, ONVIF G/M/S/T |
| Power Supply | PoE IEEE 802.3at Type 2 Class 4 |
| Power Consumption | Typical 11.1 W (IR on), Max 17.0 W |
| Operating Temperature | -30 °C to 50 °C (-22 °F to 122 °F) |
| Ingress Protection | IP66, IP67, NEMA 4X |
| Impact Resistance | IK09 |
| Dimensions | Ø 255 mm × H 91.5 mm (10.04 × 3.6 in) |
| Weight | 4.40 lbs |
Information About 066-01171-2704
The 066‑01171‑2704 belongs to the IVA‑81D series, a direct replacement for earlier IVA‑81A indicators with improved contrast, viewing angles, and lower current draw. It integrates vertical speed measurement and TA/RA display into a single instrument, leveraging ARINC 429 and ARINC 500/700 inputs for seamless interface with avionic systems. The front‑panel controls—including range selection (3, 5, 10, 20, or 40 NM), TA declutter switch, and brightness adjustment—enable pilot-friendly operation under varying conditions. Certified to TCAS II standards and TSO‑C118, C119b and C8d, it meets stringent aviation regulatory requirements for collision avoidance equipment.
Key Features:
- Integrated VSI and TA/RA Display: Combines vertical speed and traffic advisories in a single cockpit instrument.
- Pushbutton Range Control: Selectable ranges from 3 to 40 nautical miles, depending on software version.
- TA Select Switch: Clears traffic symbols for a decluttered display; traffic returns automatically when advisories occur.
- Brightness (BRT) Control: Manual adjustment to adapt to cockpit lighting.
- Enhanced Performance Over IVA‑81A: Improved contrast, viewing angles, reduced current draw, and higher reliability.
- Multiple Input Interfaces: Supports pneumatic/air data electrical inputs and high‑speed ARINC 429 data.
- TSO‑Certified: Meets TSO C118, C119b, and C8d requirements for TCAS II equipment.
The 066‑01171‑2704 delivers the reliability and precision required for accurate vertical speed monitoring and timely traffic advisory in avionics systems.
