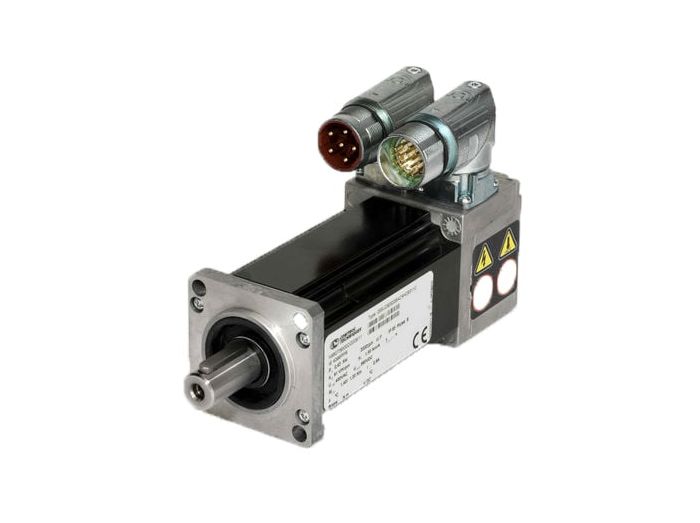

067UDA600BACRA | Emerson Unimotor HD Servo Motor
- Regular price
- $2,039.00
- Sale price
- $2,039.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 067UDA600BACRA
Description
The 067UDA600BACRA is part of Emerson’s Unimotor HD range of high-dynamic AC brushless servo motors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Emerson |
| Category | Servo Products |
| Part Number | 067UDA600BACRA |
| Subcategory | Servo Motor |
| Motor Type | Servo Motor |
| Series | Unimotor HD |
| Frame Size | 67 mm |
| Frame Length | A Type |
| Rated Voltage | 460 VAC |
| Frequency | 50/60 Hz |
| Rated Torque | 12.8 lb-in (1.45 Nm) |
| Maximum Speed | 6000 RPM |
| Brake Option | No Brake |
| Power Connector Size | 1.0 |
| Shaft Option | Keyway with Full Key |
| Feedback Device | 4096 PPR Encoder |
| Rotor Inertia | Standard Inertia |
| Temperature Sensor | PTC |
| Weight | 4.47 lbs |
Information About 067UDA600BACRA
The 067UDA600BACRA is part of Emerson’s Unimotor HD servo motor range, engineered for high-performance motion control in demanding automation applications. Designed with a compact 67 mm frame, this brushless AC servo motor delivers high torque density and rapid acceleration, making it ideal for robotics, packaging, and precision manufacturing systems. Operating at 460 VAC with speeds up to 6000 RPM, the motor features a standard-inertia rotor, incremental 4096 PPR encoder, and PTC thermal protection to ensure accuracy, responsiveness, and reliability under continuous operation. With its full-key shaft, connectorized power interface, and seamless compatibility with Emerson servo drives, the 067UDA600BACRA provides a versatile solution for advanced motion applications.
Key Features:
- Model / MPN: 067UDA600BACRA
- Type: Brushless AC Servo Motor / Unimotor HD Series
- Frame Size: 67 mm (A-Type Frame Length)
- Rated Voltage: 460 VAC, 50/60 Hz
- Rated Torque: 12.8 lb-in (1.45 Nm)
- Maximum Speed: 6000 RPM
- Feedback: Incremental Encoder, 4096 PPR
- Shaft: Keyway with Full Key
- Brake: None
- Inertia: Standard Inertia Rotor
- Connector: Power Size 1.0 (Connectorized)
- Thermal Protection: Integrated PTC Temperature Sensor
- Application: High-dynamic automation, robotics, packaging, machine tools, and pick-and-place systems
The Emerson 067UDA600BACRA Unimotor HD Servo Motor delivers reliable precision motion performance, optimized for high-speed, high-torque applications where accuracy and responsiveness are critical.
