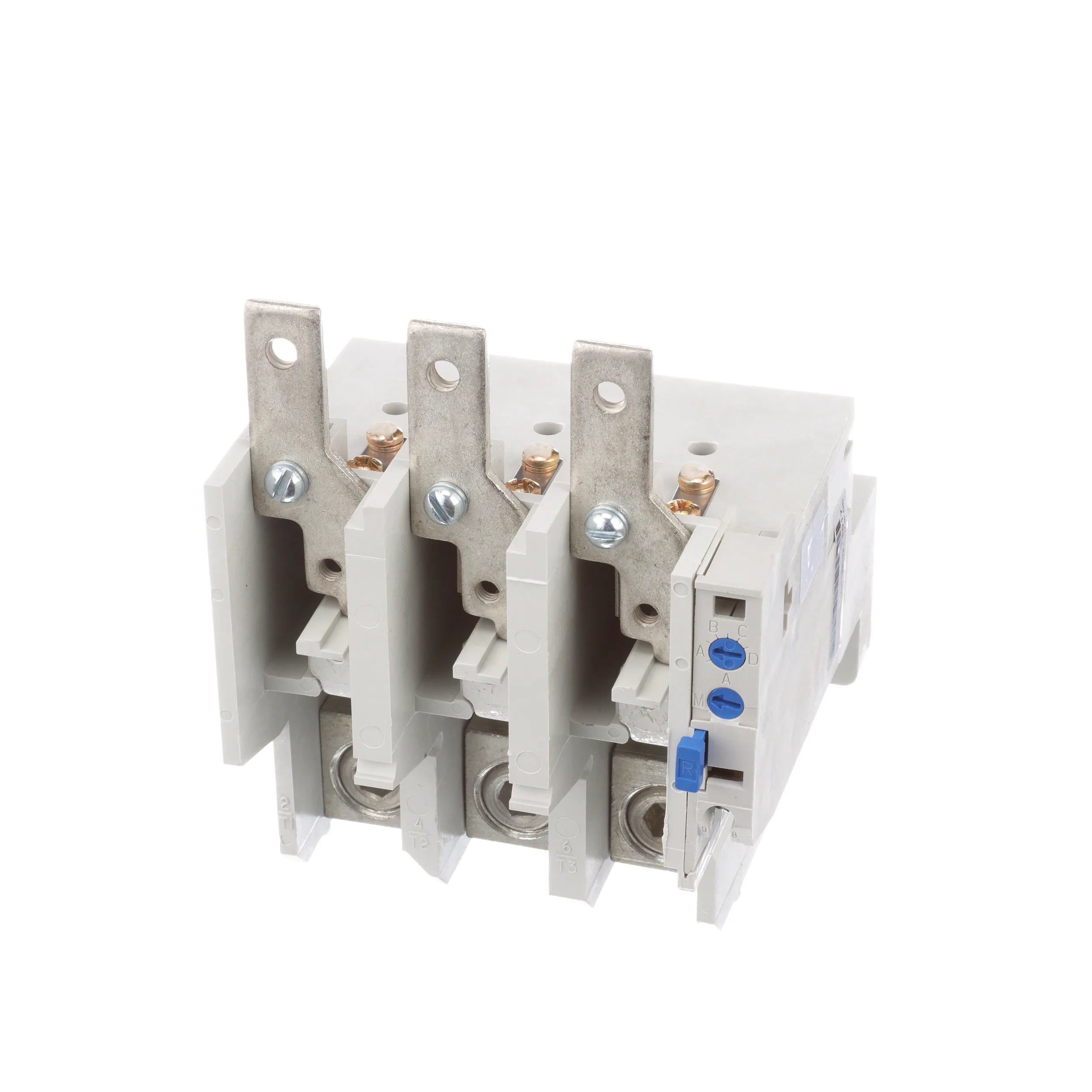

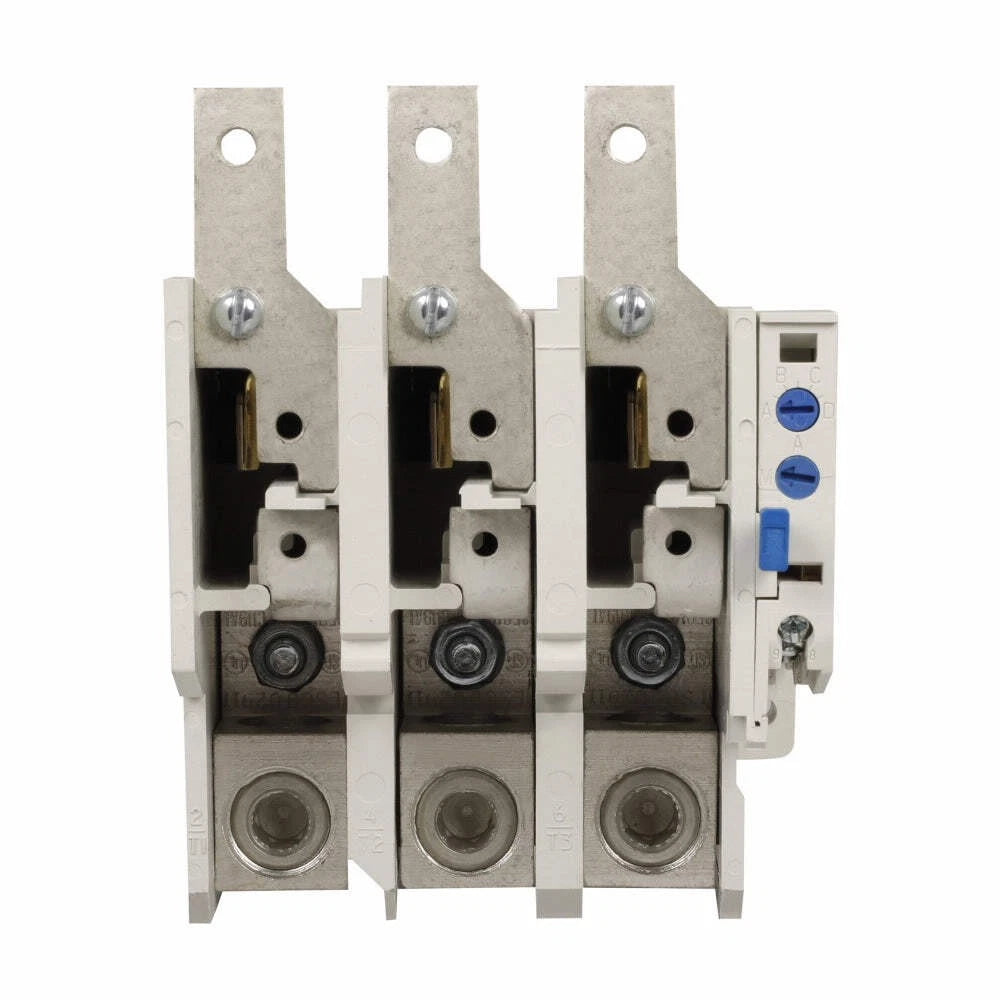

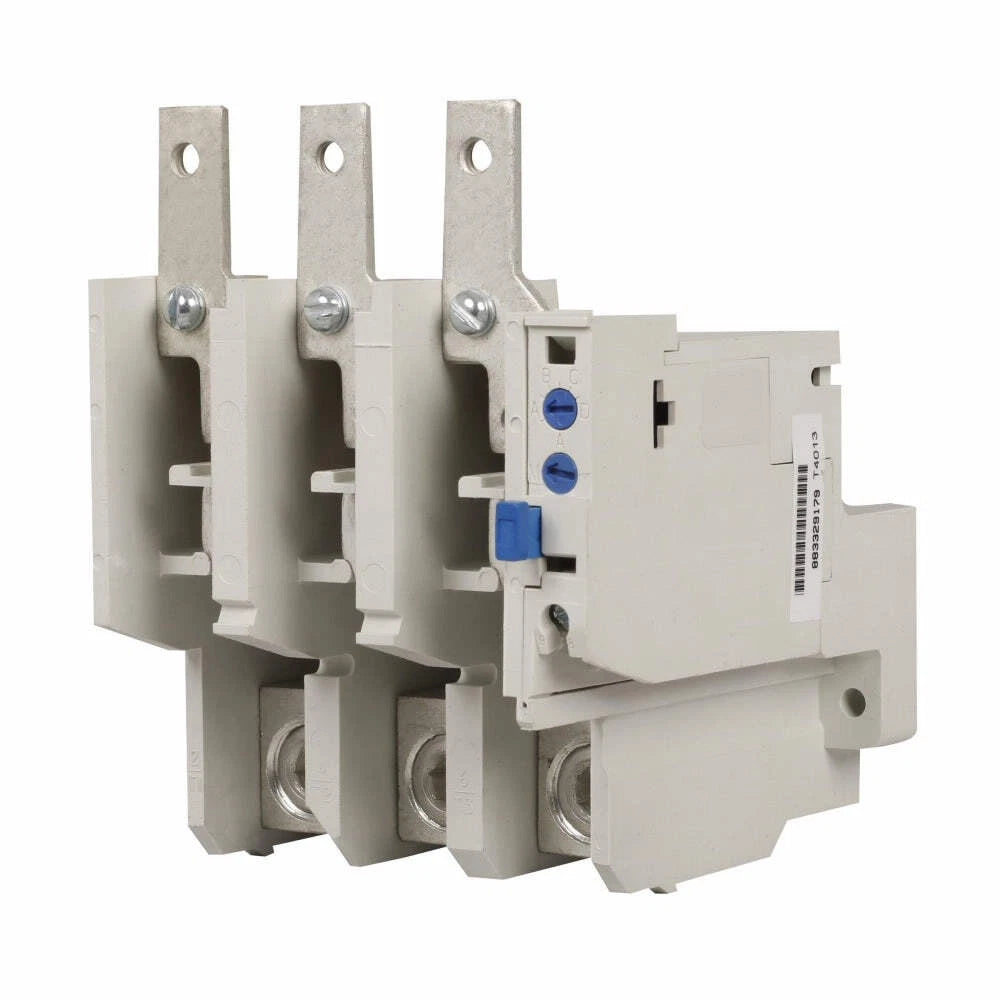

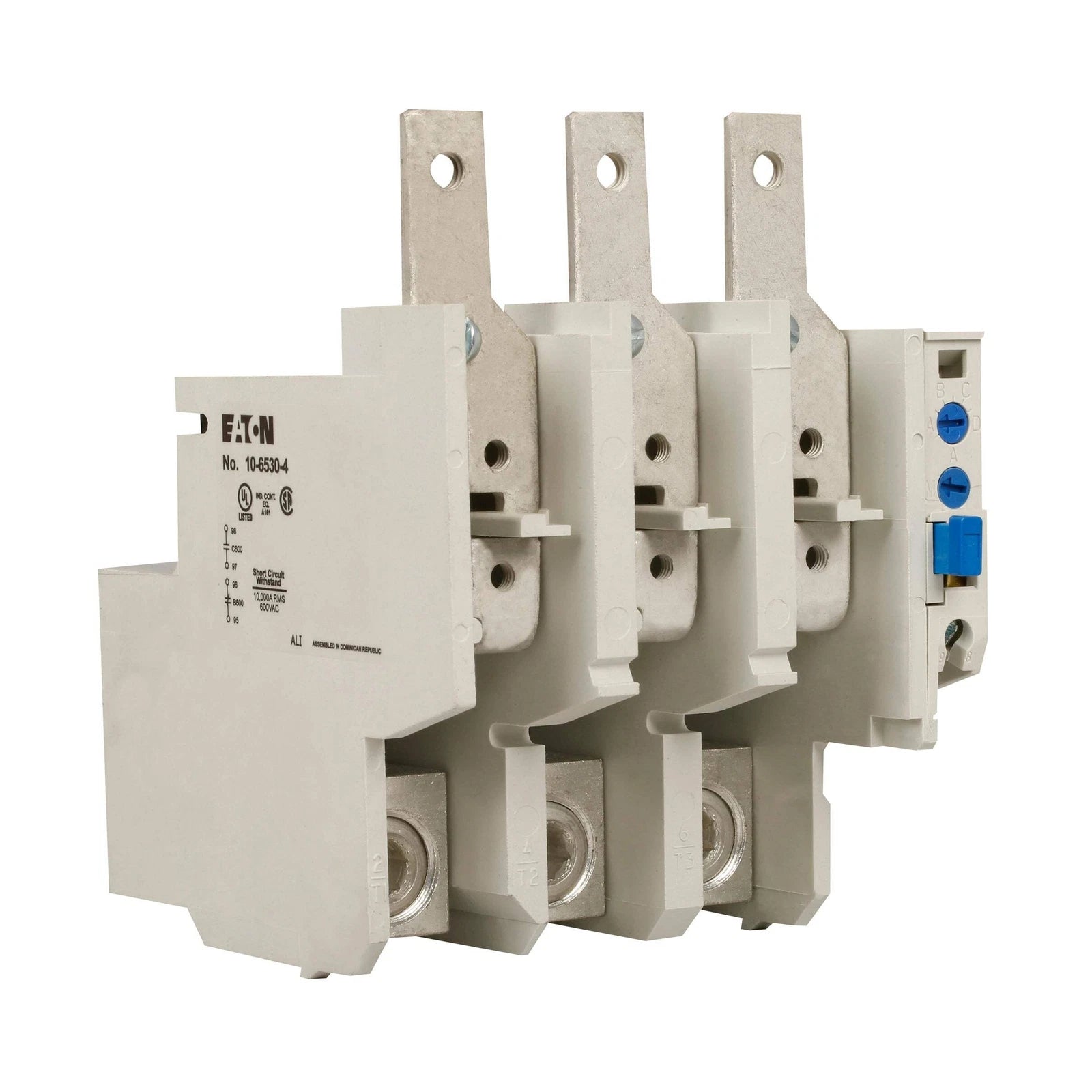

10-6530-4 | Eaton Freedom Series NEMA Size 4 Thermal Overload Relay For Definite Purpose Contactors
- Regular price
- $472.00
- Sale price
- $472.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 10-6530-4
Description
The Eaton 10-6530-4 is a definite purpose thermal overload relay designed to provide reliable motor protection in industrial and commercial control systems. It supports three-pole operation up to 600 VAC and is intended for use with compatible Eaton Freedom Series contactors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Contactors & Starters |
| Part Number | 10-6530-4 |
| Subcategory | Solid State Overload / Relay |
| Family | Freedom Series |
| Type | 10 |
| Maximum Current Rating | 135 A |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Relay Style | Thermal |
| NEMA Size | Size 4 |
| Mounting Type | Contactor Mounted |
| Frame Type | CN15 |
| Suitable For | AN16, AN30, AN40, AN56, AN70, AN80, AN800, CN15, CN35, CN55 |
Information About 10-6530-4
The 10-6530-4 is a thermal overload relay from Eaton’s Freedom Series developed for definite purpose motor control applications. It is engineered for use with NEMA size 4 contactors and integrates directly into Eaton contactor assemblies as a mounted accessory. The relay supports three-pole circuits and is designed to handle high current loads up to 135 amps at 600 VAC. Its compatibility with a wide range of AN and CN series contactors allows consistent overload protection across multiple motor control configurations.
Key Features
- Freedom Series Compatibility: Designed for seamless integration with Eaton Freedom Series definite purpose contactors.
- Thermal Overload Protection: Provides reliable protection against sustained overload conditions to safeguard motors and equipment.
- High Current Capability: Rated up to 135 amps for demanding industrial motor applications.
- NEMA Size 4 Design: Suitable for larger motor starters requiring robust overload protection.
- Three-Pole Configuration: Supports balanced protection across three-phase motor circuits.
- Contactor-Mounted Construction: Allows direct installation onto compatible contactors for compact system design.
- Wide Contactor Compatibility: Supports multiple Eaton AN and CN series contactor models for flexible system integration.
The 10-6530-4 delivers the reliability and precision required for dependable thermal overload protection in Eaton Freedom Series motor control systems.
