Product Description P/N: 100-C09
Description

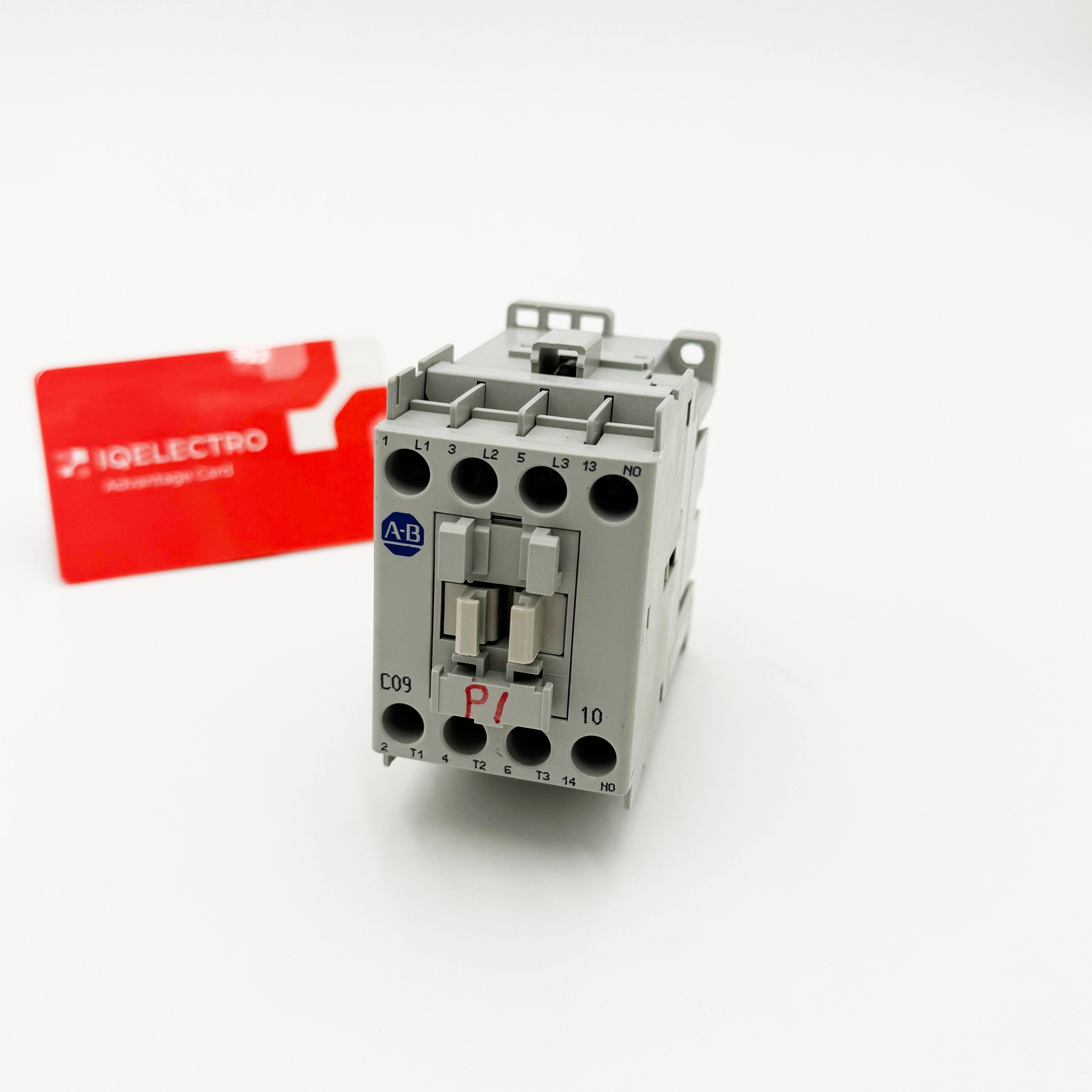

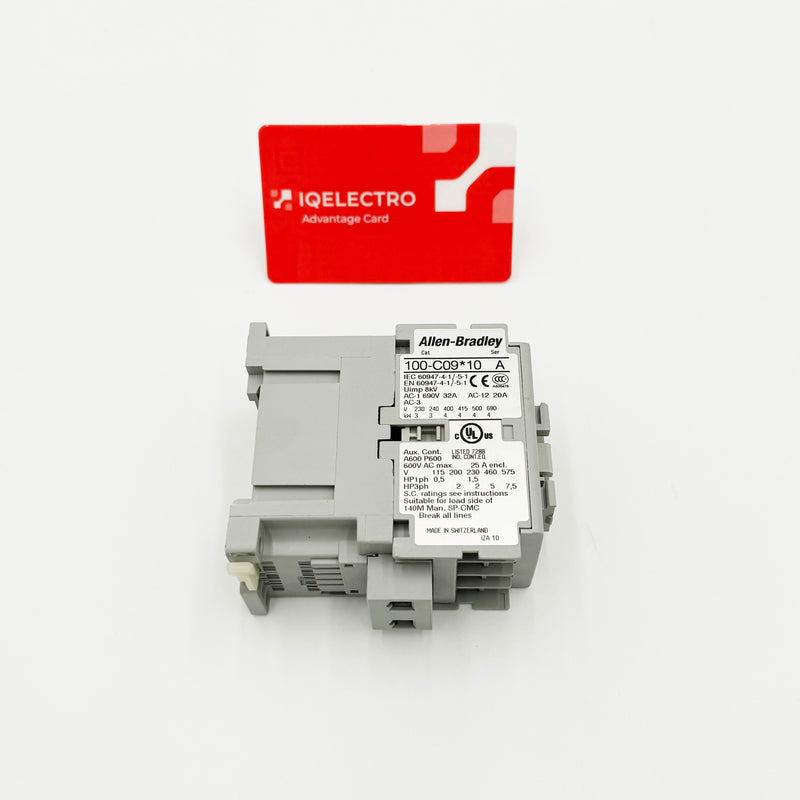

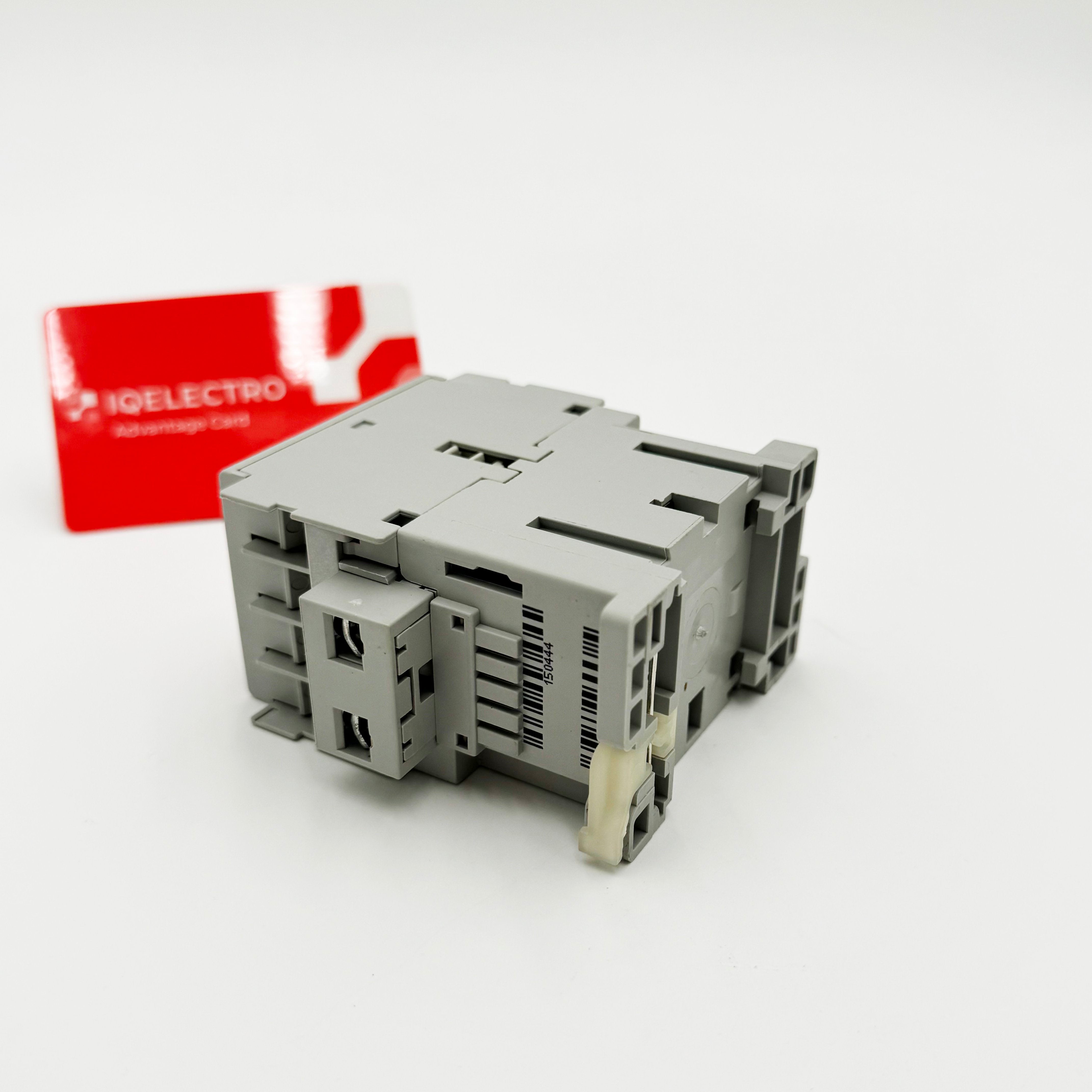

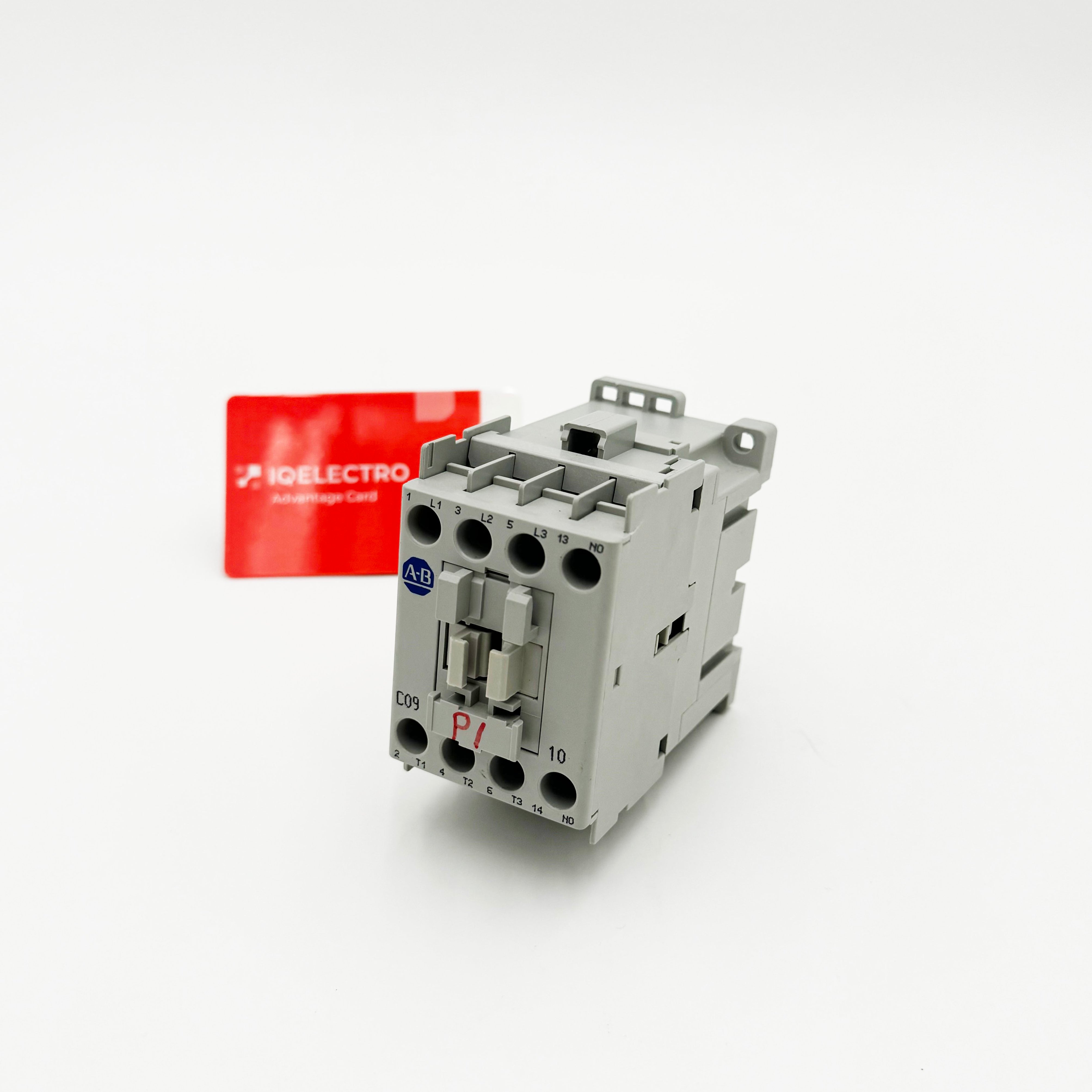

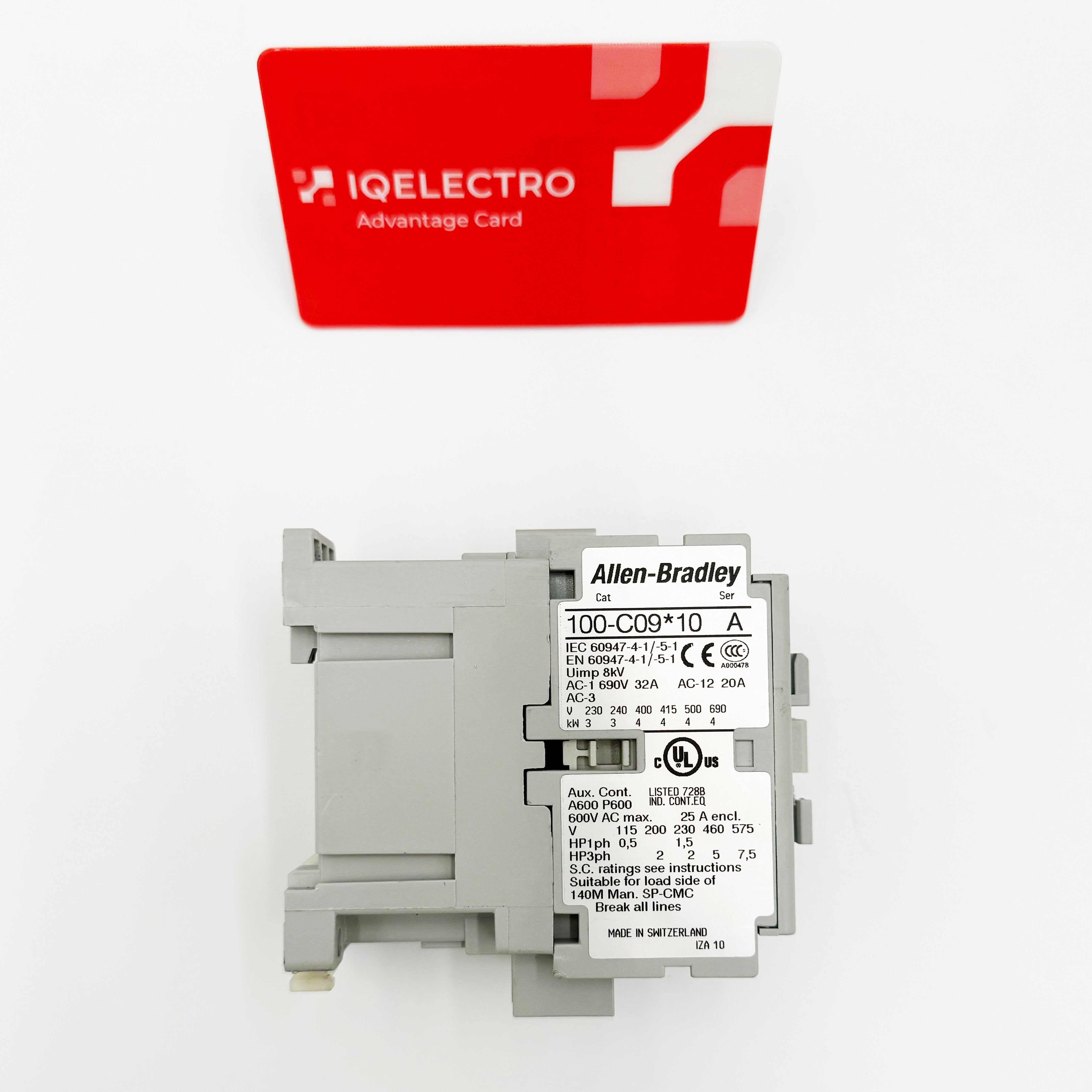

The Allen-Bradley 100-C09 is a compact IEC-rated contactor designed for 3-phase power control applications with a rated current of 25 Amps and a voltage rating of up to 600 VAC. It features a 120V AC coil and includes one normally open (1 NO) auxiliary contact for signaling or interlock functions.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Motor Control
|
| Part Number | 100-C09 |
| Subcatecory |
IEC Contactors
|
| Phases | 3 |
| Number of Poles | 4 |
| Voltage Rating | 600 Volts AC |
| Current Rating | 25 Amps |
| Coil Voltage | 120 Volts |
| Contacts | 1 NO |
| Dimension | 8 x 8 x 8 inches |
| Weight (approx.) | 4 Pounds |
| Mounting | DIN Rail |
Information About 100-C09
The 100-C09 is part of the Allen-Bradley 100 contactor series, offering compact dimensions and robust switching capabilities for motors and resistive loads. It supports 3-phase operation with a 4-pole configuration and is mounted on a DIN rail for easy panel integration. The contactor operates on a 120V AC coil and is rated for up to 25 A at 600 VAC, making it suitable for medium-duty control tasks. With CE, UL, and CSA compliance (as applicable to the series), it supports global installation standards.
Key Features:
- 3-Phase Control: supports 3-phase systems with a 4-pole contact configuration.
- High Voltage Rating: rated up to 600 VAC for a broad range of motor and control applications.
- 25 Amp Capacity: suitable for switching moderate loads such as small motors or heaters.
- 120V Coil Voltage: standard AC coil voltage for industrial control circuits.
- Integrated Auxiliary Contact: includes 1 NO auxiliary for status feedback or interlock logic.
- DIN Rail Mountable: allows quick and secure installation in control enclosures.
The 100-C09 provides compact, dependable power switching with 3-phase support and integrated auxiliary contact functionality in a DIN-mountable form.
