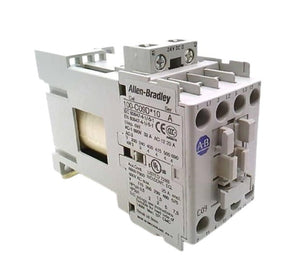

100-C09DJ10 | Allen-Bradley Contactor
- Regular price
- $324.00
- Sale price
- $324.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 100-C09DJ10
Description
The Allen-Bradley 100-C09DJ10 is a compact, 3-pole IEC contactor rated for 9 A AC-3 at 600V, designed for controlling motors up to 4 kW (5 HP).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 100-C09DJ10 |
| Subcategory |
Contactor
|
| Coil Voltage | 24 VDC |
| Number of Poles | 3 |
|
Contact Current Rating
|
9 A |
|
Contact Voltage Rating
|
690 VAC |
|
Number Of Auxiliary Contacts
|
1 |
|
Dimensions
|
81 x 45 x 86.5 mm |
|
Frame Type
|
100-C |
|
Contact Configuration
|
1NO |
|
Phase
|
3 |
|
Weight
|
1.30 lbs |
Information About 100-C09DJ10
The Allen-Bradley 100-C09DJ10 is a compact IEC contactor from the 100-C series, designed for efficient and reliable control of electric motors and other industrial loads. With a 9 A AC-3 current rating, a 24V DC coil, and a built-in 1 normally open (N.O.) auxiliary contact, it’s ideal for controlling motors up to 4 kW (at 400/415V). This contactor is well-suited for OEMs and panel builders requiring compact, high-performance components in space-constrained control systems.
Key Features:
Electrical Ratings:
-
Rated Operational Current (AC-3): 9 A
-
Maximum Motor Power:
-
4 kW @ 400/415V (IEC)
-
5 HP @ 480V (UL)
-
-
Rated Insulation Voltage: 690V AC
-
Rated Operational Voltage: up to 600V AC
Coil Characteristics:
-
Coil Voltage: 24V DC
-
Low power consumption design
-
Built-in coil suppression for DC models (reduces surge)
Contact Configuration:
-
Main Contacts: 3-pole (3NO for motor control)
-
Auxiliary Contacts: 1 x Normally Open (1 N.O.)
Mounting and Design:
-
DIN-rail and panel mountable
-
Compact width: 45 mm
-
Snap-on design for accessories and auxiliary modules
Durability:
-
Electrical Life: Up to 1 million operations (depending on load)
-
Mechanical Life: Up to 10 million operations
-
Silver alloy contact tips for high wear resistance
Certifications and Standards:
-
CE, UL, CSA, and IEC compliant
-
RoHS compliant
-
Meets IEC 60947-4-1 standards
The Allen-Bradley 100-C09DJ10 contactor is a reliable, space-efficient motor control solution suitable for a wide range of industrial applications. With 9 A current rating, a 24V DC coil, and integrated auxiliary contacts, it is ideal for motor starters, control panels, and automation systems that demand compact design, long life, and flexible mounting. Backed by Allen-Bradley’s robust quality and global certifications, it's a dependable component for modern industrial control environments.
