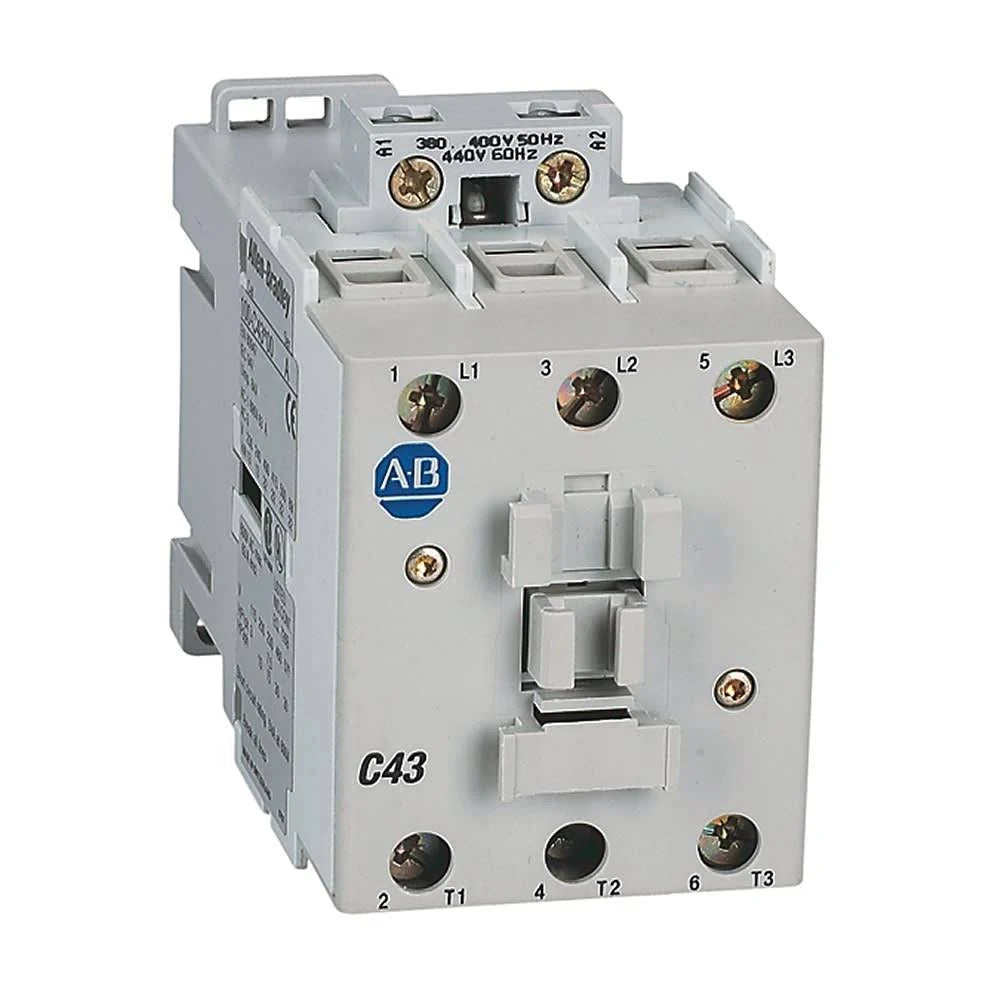

100-C43D00 | Allen-Bradley Contactor
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 100-C43D00
Description
The Allen-Bradley 100-C43D00 is a 3-phase IEC contactor designed for controlling electric motors and other loads in industrial applications.
Technical Specifications
Condition | New/Never Used Surplus |
---|---|
Brand | Allen-Bradley |
Category | Contactors & Starters |
Part Number | 100-C43D00 |
Subcatecory |
Contactors & Starters
|
Amperage
|
43 Amp at 400 VAC-3, 85 Amp at 400 VAC-1 |
Connection Type |
Screw-Type Terminals |
Power Rating
|
22 kW |
Voltage | 230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz |
Coil Voltage | 110 V |
Contact Configuration | 3 Normally Open Poles |
Number of Poles | 3 Pole |
Standard | C-TICK,CCC,CE,CSA,CUL,GOST,KC,UL |
Mounting Style | DIN Rail / Base Mount |
Coil Termination | Line Side |
Weight | 1.20 lbs |
Information About 100-C43D00
The Allen-Bradley 100-C43D00 is a 3-pole IEC contactor from the Bulletin 100-C series, engineered for reliable motor control and load switching in industrial automation systems. It combines compact design, robust performance, and energy-efficient operation.
Key Features:
-
Contactor Type: IEC 3-pole contactor, designed for motor and general-purpose load control.
-
Rated Current: Supports up to 43 A (AC-3) and 85 A (AC-1) for a wide range of motor and load capacities.
-
Power Ratings: Suitable for motors up to 15 HP at 230 V and 30 HP at 460 V, equivalent to 22 kW at 400 V.
-
Coil Voltage: Operates on 110 V AC (50 Hz) or 120 V AC (60 Hz), adaptable for common control circuit voltages.
-
Contact Configuration: Includes 3 normally open (N.O.) main poles with no auxiliary contacts pre-installed.
-
Mounting Options: Compatible with both DIN rail and panel/base mounting for flexible installation.
-
Terminal Type: Features screw-type terminals for secure and straightforward wiring.
-
Protection Class: Rated IP20, ensuring basic protection against solid objects and access.
-
Standards Compliance: Conforms to IEC/EN 60947-4-1 / 5-1 standards for industrial safety and performance.
-
Operating Temperature: Functional in environments ranging from -25°C to +60°C.
This contactor is part of Allen-Bradley’s compact and high-performance 100-C series, ideal for motor control centers, HVAC systems, and various industrial machinery. It supports auxiliary devices and overload protection options, ensuring versatility and integration in automation systems.
