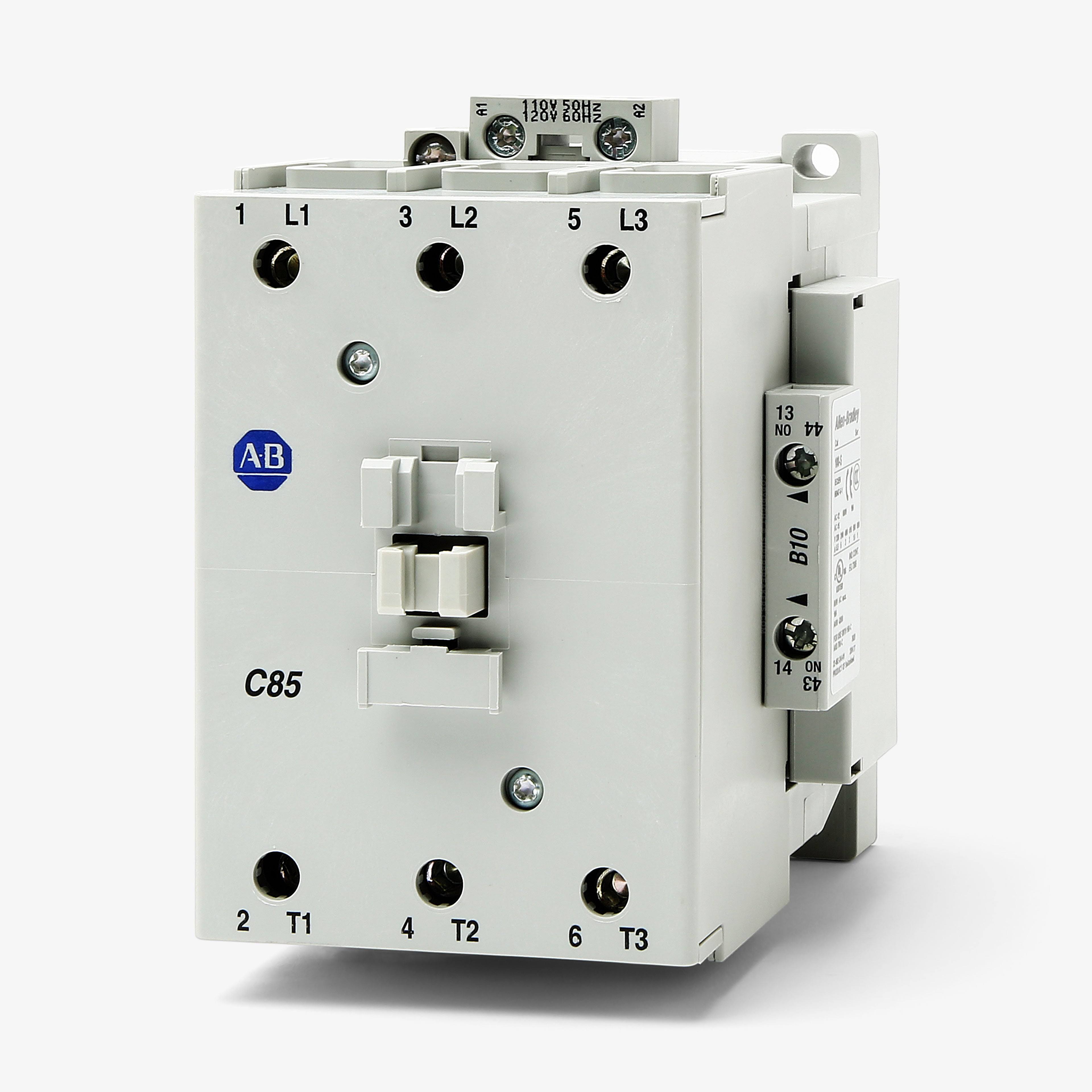

100-C85D10 | Allen-Bradley 85 Amp Contactor
- Regular price
- $313.65
- Sale price
- $313.65
- Regular price
-
$369.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 100-C85D10
Description
The Allen-Bradley 100-C85D10 is a heavy-duty 3-pole contactor engineered for reliable switching of motors and power circuits. Designed to handle high-current applications, this contactor supports up to 85 amps and includes a factory-installed normally open auxiliary contact for added control flexibility.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 100-C85D10 |
| Subcategory | Contactor |
| Rated Current (AC-3) | 385 Amp at 400 VAC |
| Rated Current (AC-1) | 100 Amp at 400 VAC |
| Coil Voltage | 110 V, 50/60 Hz |
| Power Rating | 45 kW at 400 VAC |
| Number of Poles | 3 |
| Auxiliary Contacts | 1 NO |
| Terminal Type | Screw Terminals |
| Operational Voltage | 230–690 VAC (50 Hz), 115–575 VAC (60 Hz) |
| Standards | CE, UL, CSA, C-TICK, CCC, KC, GOST, CUL |
| Mounting Type | Panel Mount |
| Weight | 3.2100 lb |
Information About 100-C85D10
The 100-C85D10 is a robust industrial contactor from Allen-Bradley's Bulletin 100-C series, optimized for high-performance motor control and electrical distribution. Operating at 230–690 VAC (50 Hz) or 115–575 VAC (60 Hz), it supports coil voltage at 110 V and delivers a power rating of 45 kW at 400 VAC. This model includes a 3-pole configuration with screw-type terminals for secure and quick wiring, and features a 1 NO auxiliary contact for extended circuit control. Built to meet global standards including CE, UL, CSA, and GOST, it ensures compliance and safety across international applications.
Key Features:
- High Current Handling: Rated for 85 A (AC-3) and 100 A (AC-1) at 400 VAC, suitable for large motors and power loads.
- Coil Voltage: Operates on a 110 V coil with 50/60 Hz frequency, enabling use in a variety of industrial control systems.
- Auxiliary Contact: Comes equipped with a 1 NO auxiliary contact, allowing for feedback or interlock integration.
- Three-Pole Design: Offers robust 3-phase switching for balanced power distribution in motor control circuits.
- Powerful Switching Capacity: Delivers 45 kW motor control capacity, ideal for heavy-duty industrial applications.
- Global Certifications: Meets C-TICK, CCC, CE, CSA, CUL, GOST, KC, and UL standards for worldwide usability.
- Durable Screw Terminals: Features screw-type connection terminals for secure, vibration-resistant electrical connections.
- Wide Voltage Range: Supports a broad operational voltage range from 115 to 690 VAC, compatible with diverse system designs.
- Compact Form Factor: Offers high power density in a compact footprint for efficient panel layout.
The 100-C85D10 delivers a versatile, high-reliability contactor solution built for industrial control systems demanding high power handling, safety compliance, and installation efficiency.
