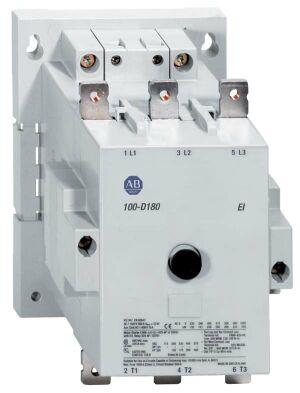

100-D140D00 | Allen-Bradley Contactor IEC 140 Amp
- Regular price
- $1,572.00
- Sale price
- $1,572.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 100-D140D00
Description
The Allen-Bradley 100-D140D00 is a high-capacity, IEC non-reversing magnetic contactor rated for 140 amps, with a 110/120V AC control coil. It is designed for 3-phase motor applications in demanding industrial environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors and Starters
|
| Part Number | 100-D140D00 |
| Subcatecory |
Electrical Contactors
|
| Product Type | IEC Non-Reversing Contactor |
| Phases | 3 |
| Poles | 3 |
| Contactor type | Non-reversing |
| Current | 140 A |
| Coil type | Conventional |
| Coil Voltage | 110 VAC 50 Hz; 120 VAC 60 Hz |
| No. of poles | 3-poles |
| Power Rating | 40 HP at 200V, 50 HP at 230 V, 100 HP at 460V, and 125 HP at 575V |
| Operating current, min | 140 Amperes |
| Temperature Rating | -25 to 60 degrees Celsius |
Information About 100-D140D00
The 100-D140D00 is an IEC-compliant, non-reversing magnetic contactor from Allen-Bradley’s Bulletin 100-D series. Built for 3-phase systems, it supports 140 Amperes of continuous current and is equipped with three power poles. The contactor includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact, making it suitable for both control and signaling functions. It features a conventional AC coil rated at 110 VAC @ 50 Hz and 120 VAC @ 60 Hz, ensuring compatibility with common industrial power systems.
Key Features:
-
Rated at 140 Amps: Supports large 3-phase motor and resistive loads
-
Three-Pole Configuration: Ensures consistent performance across industrial systems
-
AC Control Coil: Operates at 110 VAC (50 Hz) or 120 VAC (60 Hz)
-
Integrated Auxiliary Contacts: Includes 1 NO and 1 NC contact for control logic
-
High Horsepower Ratings: 125 HP at 575V AC, 100 HP at 460V AC
-
Wide Operating Temperature Range: -25°C to 60°C for reliable performance in varied environments
-
Non-Reversing Design: Designed for single-direction motor operation in standard applications
The 100-D140D00 provides robust and consistent performance for high-current motor control applications in industrial settings.
