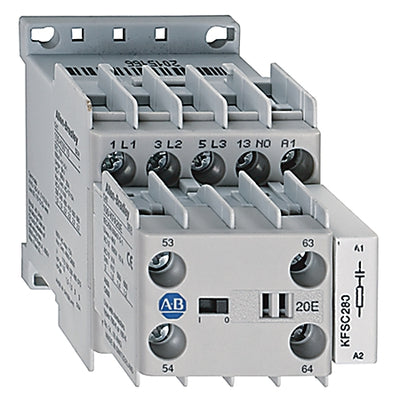

100-K09D10 | Allen-Bradley 9 Amp IEC Contactor
- Regular price
- $90.00
- Sale price
- $90.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 100-K09D10
Description
The Allen-Bradley 100-K09D10 is a compact IEC miniature contactor rated for 9 amps, designed for motor and general-purpose control in space-constrained applications. With screw terminal connections, a 3-pole configuration, and a 110V coil, it offers reliable switching for DIN rail-mounted industrial control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 100-K09D10 |
| Subcatecory |
Contactor
|
| Amperage | 20 Amp at 400 VAC-1, 9 Amp at 400 VAC-3 |
| Coil Voltage | 110 V |
| Contact Configuration | 1 NO Auxiliary |
| Contactor Size | 9 A |
| Power Rating | 4 kW at 400 VAC-3 |
| Terminal Type | Screw Terminals |
| Voltage | 230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz |
| Applications | For DIN Installation Panels |
| Number of Poles | 3 Pole |
| Standard | CCC,CE,CUL,KC,UL |
| Weight | 0.5200 lb |
Information About 100-K09D10
The 100-K09D10 is part of Allen-Bradley’s 100-K series miniature IEC contactors, optimized for DIN installation panels in compact motor control environments. It features a 3-pole main contact arrangement with an additional 1 NO auxiliary contact for control circuit integration.
Key Features:
- Type: Miniature IEC contactor for motor and control circuit switching
- Contactor Size: Rated for 9 A operation at 400 VAC-3
- Current Rating: 9 A at 400 VAC-3, 20 A at 400 VAC-1
- Power Rating: Supports motors up to 4 kW at 400 VAC-3
- Contact Configuration: Includes 1 Normally Open (NO) auxiliary contact
- Poles: 3-pole configuration for three-phase switching applications
- Control Voltage: Operates with 110V coil voltage
- Frequency Compatibility: 230–690 VAC at 50 Hz, 115–575 VAC at 60 Hz
- Connection Type: Screw-type terminals for secure and simple wiring
- Mounting Style: DIN rail installation for compact control panel integration
- Certifications: Complies with CCC, CE, UL, CUL, and KC standards
- Application: Ideal for motor starters, contactor relays, and small load switching
The 100-K09D10 delivers compact, reliable control for motors and circuits, supporting international standards and flexible panel integration with DIN rail mounting.
