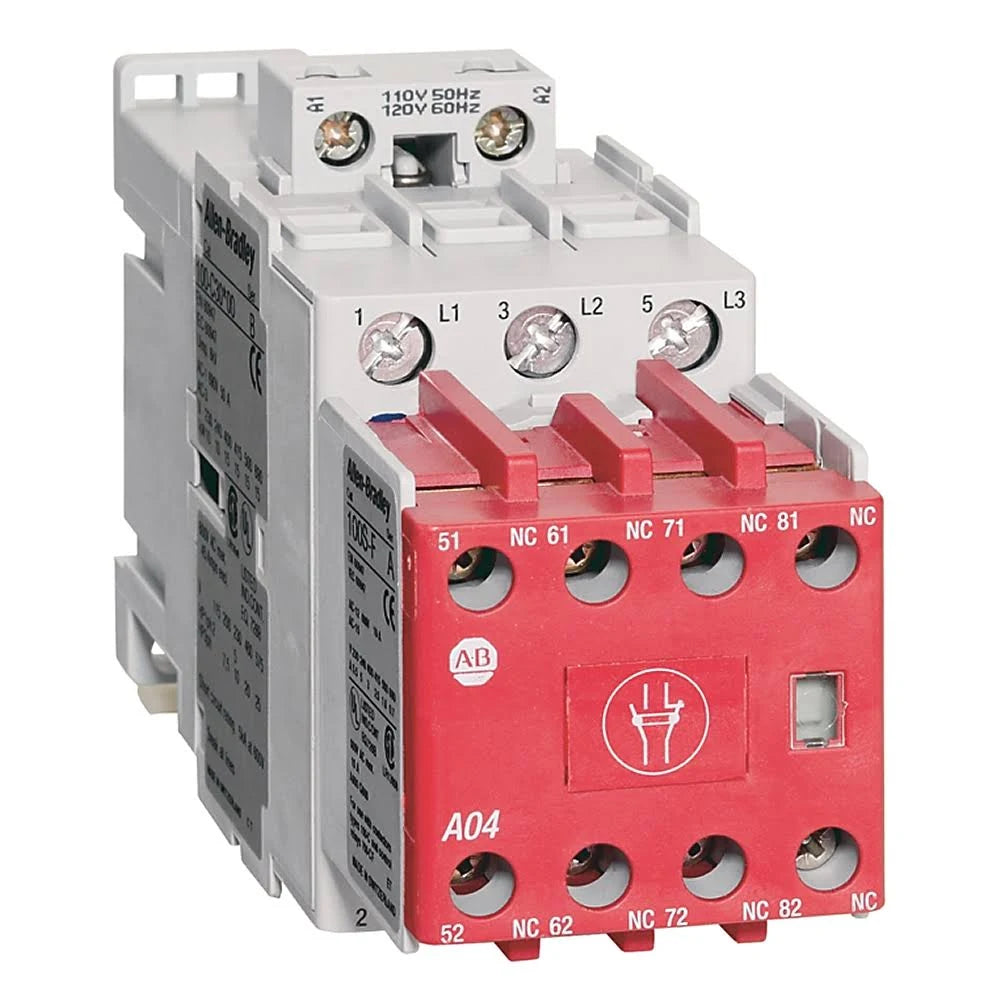

100S-C23EJ14BC | Allen-Bradley Safety Contactor

Description

The Allen-Bradley 100S-C23EJ14BC is a 23 A safety-rated contactor designed for use in safety circuits and applications requiring reliable control of electrical loads.

Technical Specifications

Information About 100S-C23EJ14BC

The Allen-Bradley 100S-C23EJ14BC is a safety-rated contactor from the Bulletin 100S-C series, designed for use in safety-critical control systems where high reliability and contact feedback are essential. Engineered with gold-plated bifurcated contacts and mechanically linked auxiliaries, it ensures secure and fail-safe performance in industrial automation environments such as machine guarding, press control, and emergency stop systems.

Key Features:

• Contactor Type: Safety-rated IEC contactor, part of the 100S-C Guardmaster series, designed for Category 3 and 4 safety applications.

• Current Ratings:

  • AC-3 rated for up to 23 A at 415 V for motor loads.

  • AC-1 rated up to 32 A at 415 V for resistive loads.

• Power Rating: Supports up to 11 kW (15 hp) at 415 V, suitable for medium-duty industrial motors.

• Control Voltage: 24 VDC coil with integrated suppression (diode), ideal for PLC control.

• Main Contacts: 3 Normally Open (N.O.) main poles for standard motor control.

• Auxiliary Contacts: Includes 1 N.O. and 4 Normally Closed (N.C.) gold-plated bifurcated contacts for reliable low-energy signal transmission and diagnostic feedback.

• Contact Design: Mechanically linked contacts conform to IEC 60947-5-1 Annex L, enabling feedback loop monitoring and safety circuit integrity.

• Ingress Protection: Rated IP20 for finger-safe operation and enhanced personnel safety.

• Mounting and Design: Compact DIN rail mountable design with visual coil indicator and fixed safety cover to prevent manual override.

• Certifications: CE, UL, cUL, SUVA, CCC, and KC certified for global industrial compliance.

• Applications: Ideal for use in emergency stop circuits, safety interlock circuits, and other functional safety designs where force-guided contact feedback is required.

This safety contactor is part of Allen-Bradley's robust Guardmaster safety component family and integrates seamlessly into Rockwell Automation systems. The 100S-C23EJ14BC is recognized for its compact form factor, safety integrity, and dependable performance in high-risk applications. It is a preferred choice for machine builders and OEMs aiming for compliance with international safety standards such as ISO 13849 and IEC 62061.
