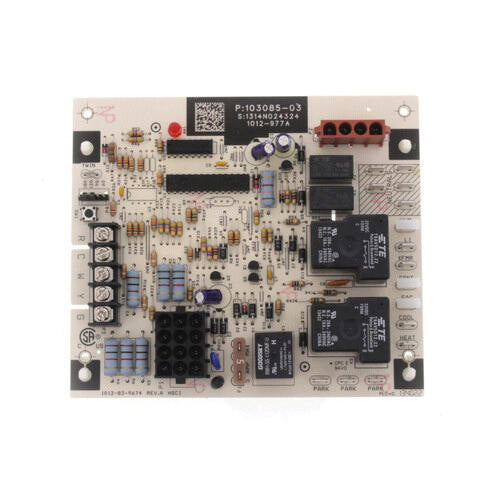

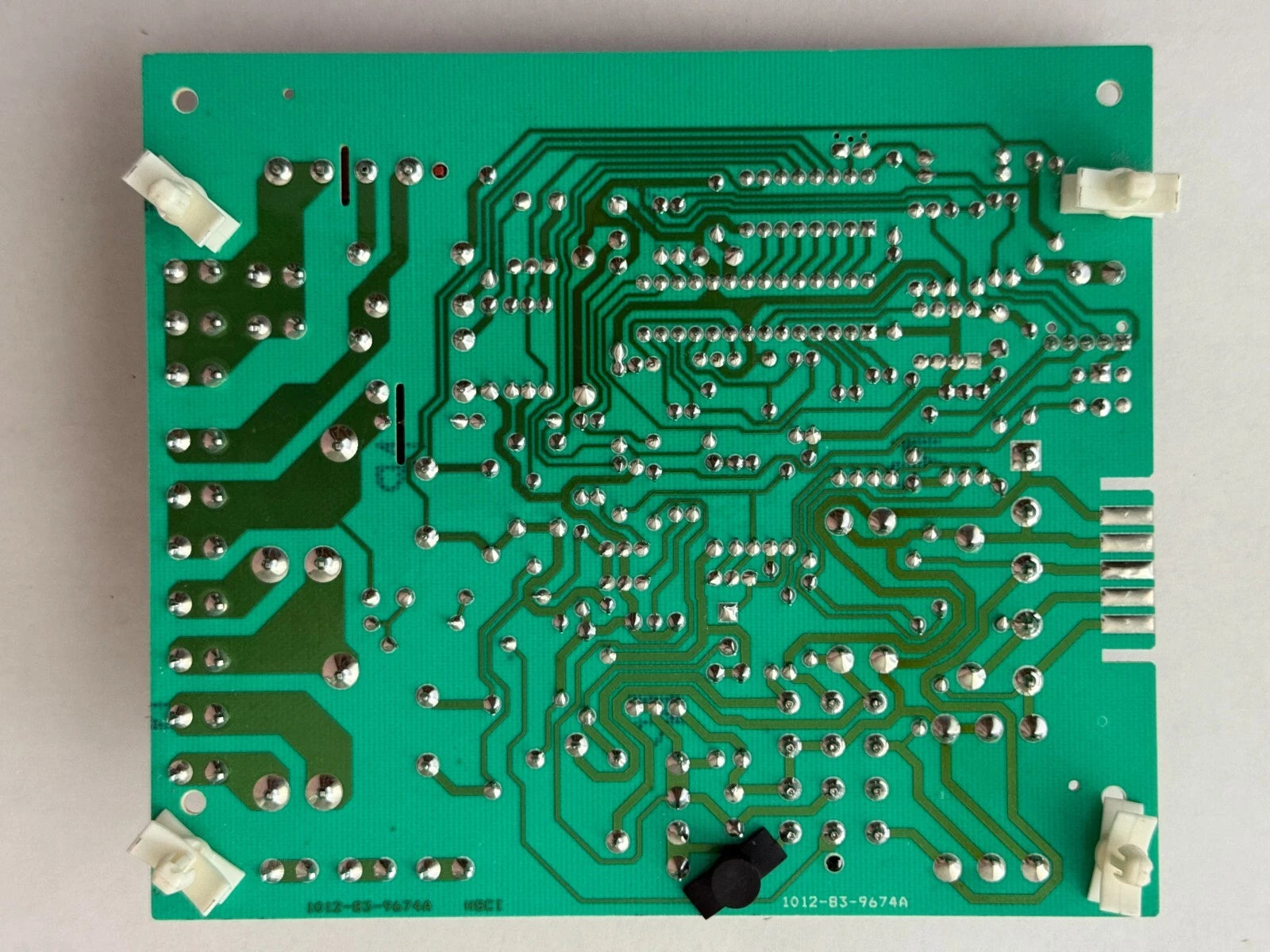

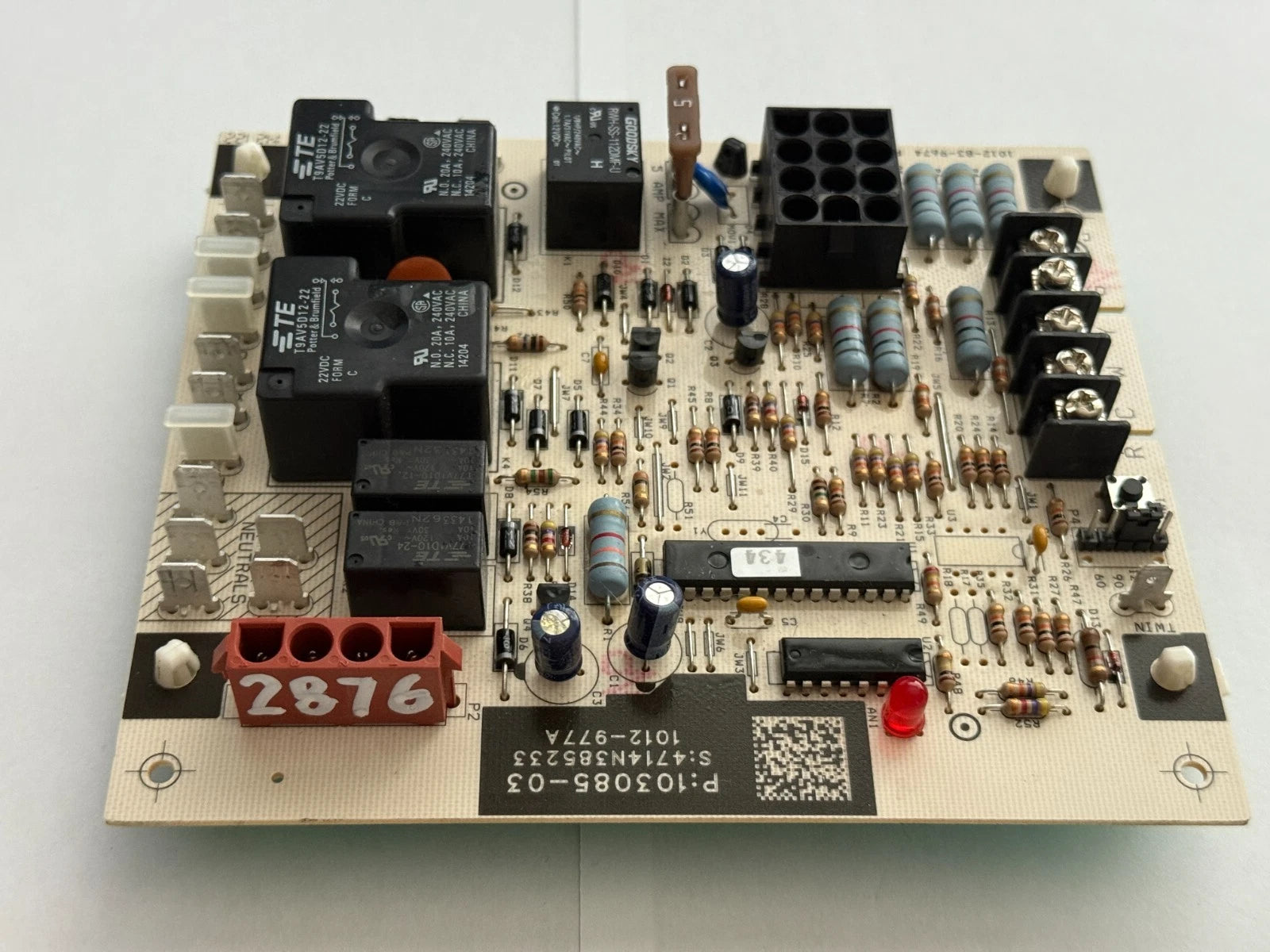

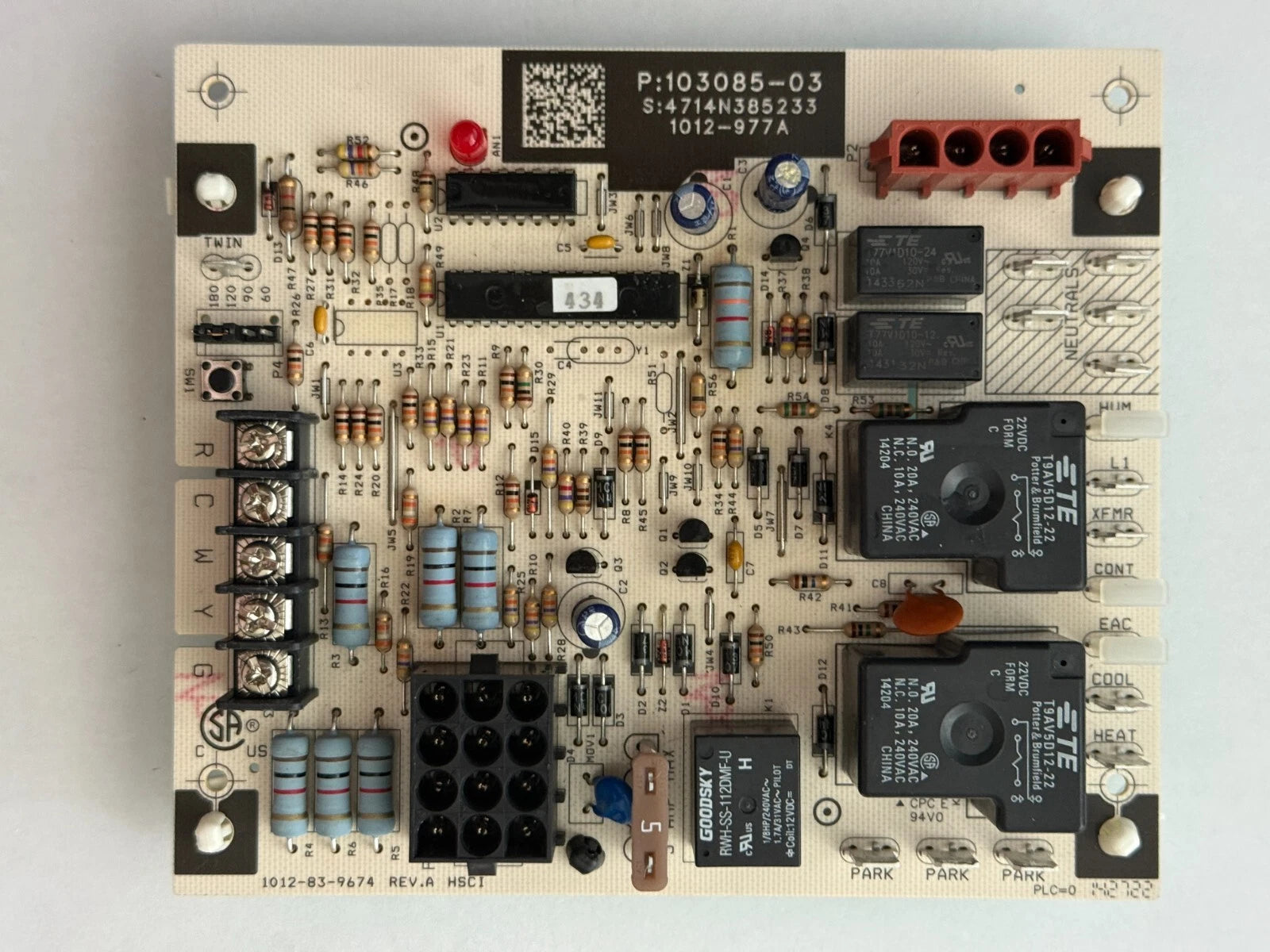

103085-03 | Lennox Ignition Control Board for Single-Stage PSC Motors 18–30 VAC
- Regular price
- $142.00
- Sale price
- $142.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 103085-03
Description
The Lennox 103085-03 is an ignition control board designed for single-stage PSC motors, ensuring reliable ignition and system control in HVAC applications. Operating at 18–30 VAC with 50/60 Hz compatibility, it provides dependable performance in heating systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lennox |
| Category | Control Boards |
| Part Number | 103085-03 |
| Subcategory | Ignition Control Boards |
| Function | Ignition control for single-stage PSC motors |
| Voltage Range | 18–30 VAC |
| Frequency | 50/60 Hz |
| Motor Type Supported | Single-Stage PSC Motors |
| Product Height | 5 in |
| Product Width | 5.8 in |
| Application | HVAC ignition and system control |
| Mounting | Panel mounted |
| Compatibility | Lennox heating systems |
| Gross Weight | 0.5 lb |
Information About 103085-03
The 103085-03 is a Lennox ignition control board engineered for use with single-stage PSC motor heating systems, providing dependable ignition and control functions. It operates within an 18–30 VAC input range and supports both 50 Hz and 60 Hz frequencies, ensuring compatibility with a wide range of HVAC setups. Designed with compact dimensions and a lightweight build, it integrates easily into existing furnace or heating control systems without adding unnecessary bulk. Its reliable circuitry and compatibility with Lennox equipment make it a practical solution for maintaining stable ignition performance in residential and light commercial environments.
Key Features:
-
Ignition Control Function: Manages the ignition sequence and flame monitoring process, ensuring safe startup and shutdown of single-stage PSC motor heating systems.
-
Wide Voltage Range: Designed to operate between 18–30 VAC, providing flexibility and reliability across different HVAC configurations.
-
Dual Frequency Support: Compatible with both 50 Hz and 60 Hz electrical systems, allowing it to function effectively in international applications.
-
Compact Dimensions: With a height of 5 in and a width of 5.8 in, it is engineered to fit into control panels without requiring significant space adjustments.
-
Lightweight Build: Weighing only 0.5 lb, it is easy to handle, transport, and install during maintenance or system upgrades.
-
Motor-Specific Design: Tailored to support single-stage PSC motors, offering optimized performance and dependable compatibility with Lennox systems.
The 103085-03 delivers the reliability and precision required for safe ignition control in Lennox single-stage PSC motor heating systems.
