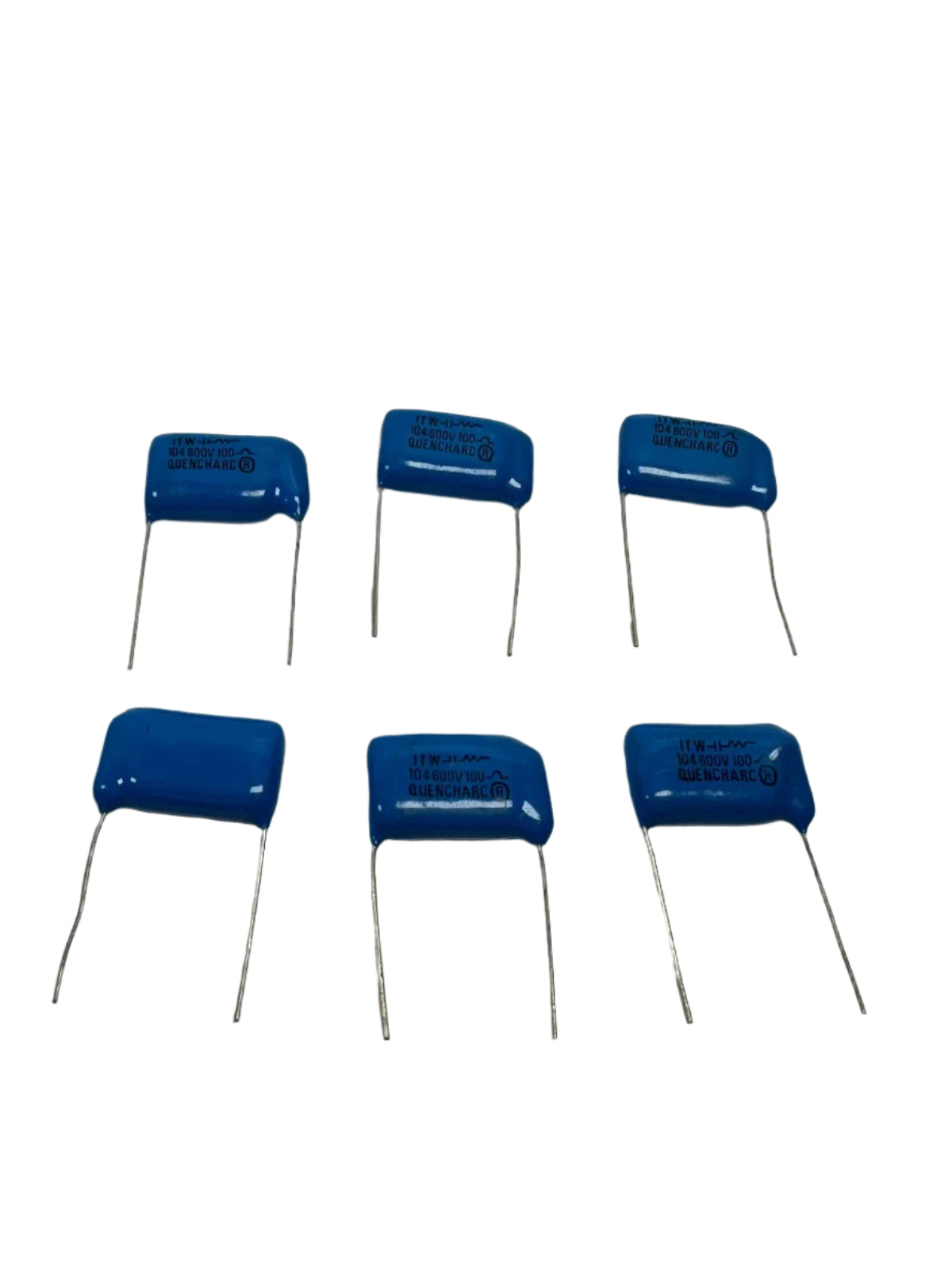

104-600V-100 | Cornell Dubilier Knowles Capacitor (Pack of 6)
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 104-600V-100
Description
The 104‑600V‑100 is a compact RC snubber network designed to suppress voltage transients and electrical arcs in switching applications. It integrates a 0.1 µF capacitor and a 100 Ω resistor in a single radial package, offering effective EMI/RFI noise reduction and improved component protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cornell Dubilier Knowles |
| Category |
Components
|
| Part Number | 104-600V-100 |
| Subcatecory |
Capacitor
|
| Capacitance | 0.1 µF (±20%) |
| Resistance | 100 Ω (±10%) |
| Resistor Power Rating | 0.5 W |
| Voltage Rating DC | 600 VDC |
| Voltage Rating AC | 250 VAC (60 Hz) |
| Operating Temp Range | −55 °C to +85 °C at full rated voltage |
| Package / Mounting | Radial through‑hole with epoxy coating |
| Dimensions (L×W×H) | ~27.4 × 9.9 × 16.7 mm (lead spacing ~20.8 mm) |
| Certification | QRL UL/CSA certified (E33628, LR32208) |
| Dielectric | Metallized polyester |
| Construction |
Epoxy‑coated, carbon resistor series |
| Weight | 0.02 lbs |
Information About 104-600V-100
The 104‑600V‑100 is part of Cornell Dubilier’s Quencharc Q series of arc suppressor and snubber networks. It comprises a 0.1 µF capacitor (±20%) in series with a 100 Ω resistor (±10%), rated to withstand up to 600 V DC and 250 VAC. Although discontinued, it shares the same form‑fit performance characteristics as its suggested replacement, the 104M06QC100. It is intended for protective use across relay or contactor contacts, semiconductor switches, and controllers to prolong contact life and reduce transient noise.
Key Features:
- Capacitance: 0.1 µF metallized polyester capacitor for dv/dt suppression.
- Resistance: 100 Ω carbon composition resistor to limit inrush current.
- Voltage Rating: Supports 600 VDC and 250 VAC operation.
- Power Dissipation: 0.5 W resistor rating.
- Tolerance: ±20% on capacitance, ±10% on resistance.
- Operating Temp: −55 °C to +85 °C at full rated voltage.
- Construction: Flame‑retardant epoxy coating over radial leads.
- Series Certification: QRL variants meet UL/CSA (E33628, LR32208) standards.
- Dimensions: Approx. 27.4 mm length × 9.9 mm width × 16.7 mm height; lead spacing ~20.8 mm.
- Application: Ideal for suppressing arcing across relay contacts, reducing EMI/RFI, and extending switching device lifespan.
The 104‑600V‑100 delivers the reliability and precision required for robust transient suppression in industrial switching applications.
