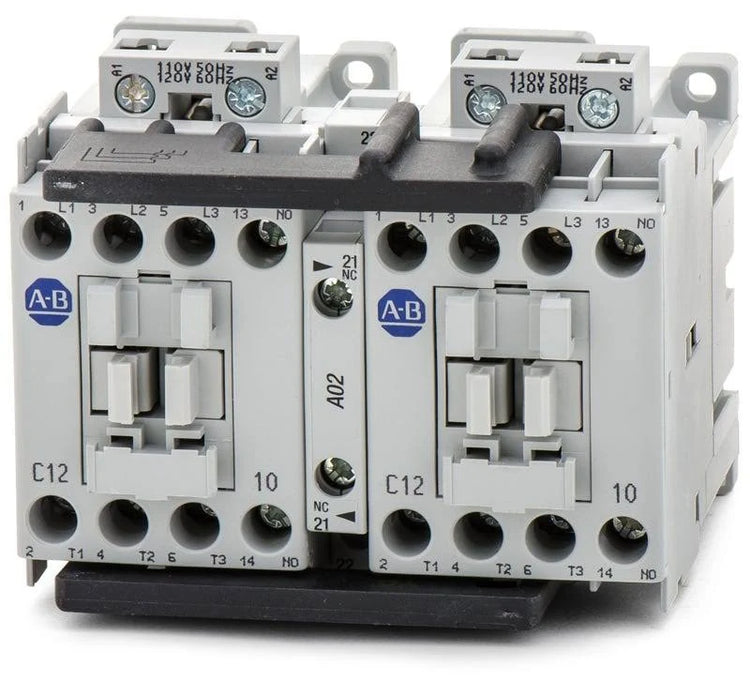

104-C12D22 | Allen-Bradley 12 Amp IEC Reversing Contactor
- Regular price
- $252.00
- Sale price
- $252.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 104-C12D22
Description
The Allen-Bradley 104-C12D22 is a compact IEC reversing contactor rated for 12 amps at 400 VAC-3, designed for use in control applications requiring motor direction reversal. It includes dual contactors in a factory-assembled reversing configuration with a 110V coil voltage and screw-type terminals for secure connections.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 104-C12D22 |
| Subcatecory |
Contactor
|
| Rated Current | 12 Amp (400 VAC-3), 32 Amp (400 VAC-1) |
| Coil Voltage | 110 V AC |
| Contact Configuration | 1 NO + 1 NC Auxiliary |
| Voltage Range | 230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz |
| Power Rating | 5.5 kW |
| Connection Type | Screw-Type Terminals |
| Terminal Type | Screw Terminals |
| Standards Compliance | CE, CCC, CSA, CUL, UL, KC, GOST |
| Application | Motor Reversing / Direction Control |
| Weight | 2.1700 lb |
Information About 104-C12D22
The 104-C12D22 supports motor loads up to 5.5 kW and offers operational voltage ranges of 230–690 VAC at 50 Hz or 115–575 VAC at 60 Hz. It features a standard 1 NO and 1 NC auxiliary contact arrangement to support logic signaling and interlocking. Built with durable screw terminals and third-party certified under CE, UL, CSA, CCC, GOST, and KC standards, it ensures safety and global compliance. The reversing setup simplifies installation and is especially suited for applications that require directional motor control in compact panels.
Key Features:
- Reversing Contactor Assembly: includes dual contactors pre-wired for forward/reverse motor control.
- 12 Amp Current Rating: supports 3-phase motor loads up to 5.5 kW at 400 VAC.
- Wide Voltage Range: operates across 230–690 VAC (50 Hz) and 115–575 VAC (60 Hz).
- Coil Voltage: 110 V AC compatible with standard control systems.
- Auxiliary Contacts: includes 1 normally open (NO) and 1 normally closed (NC) contact for auxiliary functions.
- Terminal Type: screw-type terminals for firm electrical connections and easy installation.
- Certified Safety Standards: complies with CE, CCC, UL, CSA, GOST, and KC certifications.
- Compact DIN Design: IEC-style frame fits standard panels and control cabinets.
The 104-C12D22 offers efficient, space-saving reversing motor control with global safety compliance and robust construction for long-term use.
