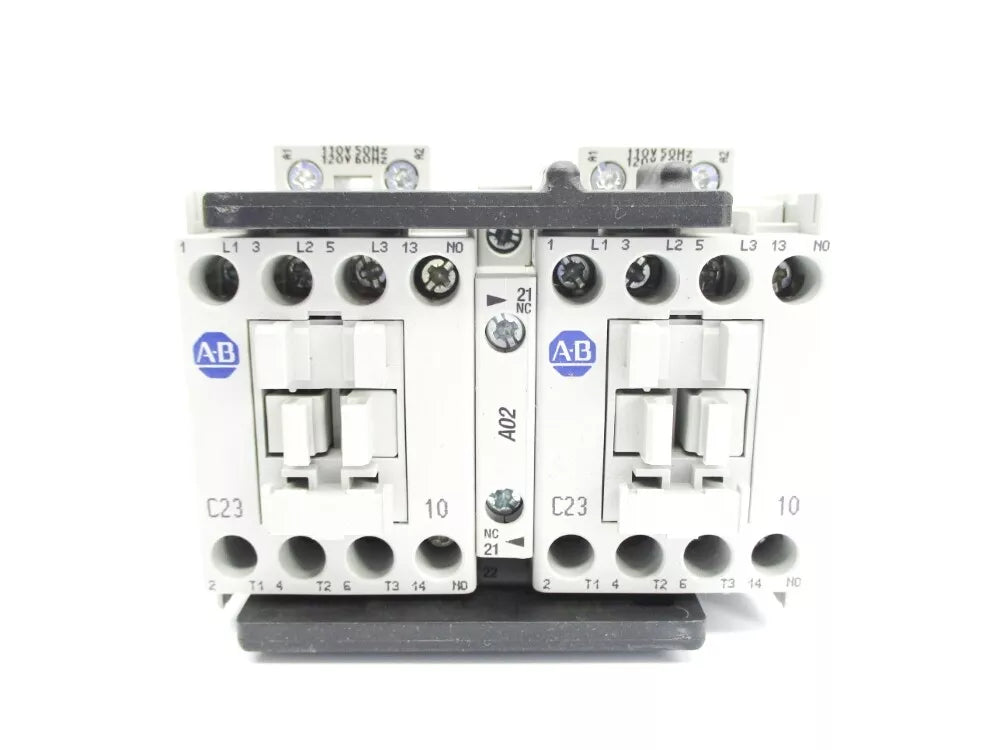

104-C23D22 | Allen-Bradley Reversing Contactor
- Regular price
- $398.00
- Sale price
- $398.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 104-C23D22
Description
The 104-C23D22 is a 23A, 3-pole IEC reversing contactor from Allen-Bradley, equipped with a 110V DC coil and integrated auxiliary contacts (2 NO and 2 NC).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Contactors & Starters
|
| Part Number | 104-C23D22 |
| Subcatecory |
Contactor
|
| Amperage | 23 Amp at 400 VAC-3, 32 Amp at 400 VAC-1 |
| Connection Type | Screw-Type Terminals |
| Current | 23 Amp |
| Standard | C-TICK,CCC,CE,CSA,CUL,GOST,KC,UL |
| Voltage | 230-690 VAC at 50 Hz, 115-575 VAC at 60 Hz |
| Coil Voltage | 110 V |
| Contact Configuration | 1 NO, 1 NC Auxiliary |
| Power Rating | 11 kW |
| TC Connection | Screw Terminals |
| Product Family | IEC |
| Weight | 1.90 lbs |
Information About 104-C23D22
The 104-C23D22 is a compact IEC reversing contactor from Allen-Bradley, engineered for reliable and efficient motor reversing and control operations in industrial applications. It is built on the proven 100-C contactor platform, offering robust performance and flexibility.
Key Features:
-
Type: IEC Reversing Contactor
-
Series: 104-C
-
Current Rating: 23 Amperes (AC-3 at 400V)
-
Poles: 3
-
Coil Voltage: 110V DC
-
Auxiliary Contacts: 2 Normally Open (2 NO) and 2 Normally Closed (2 NC) contacts included
-
Mounting: DIN rail or panel mount
-
Mechanical Durability: High cycle life for frequent reversing operations
-
Standards Compliance: UL, CSA, and CE certifications
-
Applications: Motor reversing, conveyor control, hoists, and general industrial machinery requiring forward/reverse motor control
The 104-C23D22 provides a compact solution for motor reversing applications, combining reliable performance, integrated auxiliary contacts, and ease of installation.
