1079651 | General Electric H Distributor
- Regular price
- $157.00
- Sale price
- $157.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1079651
Description

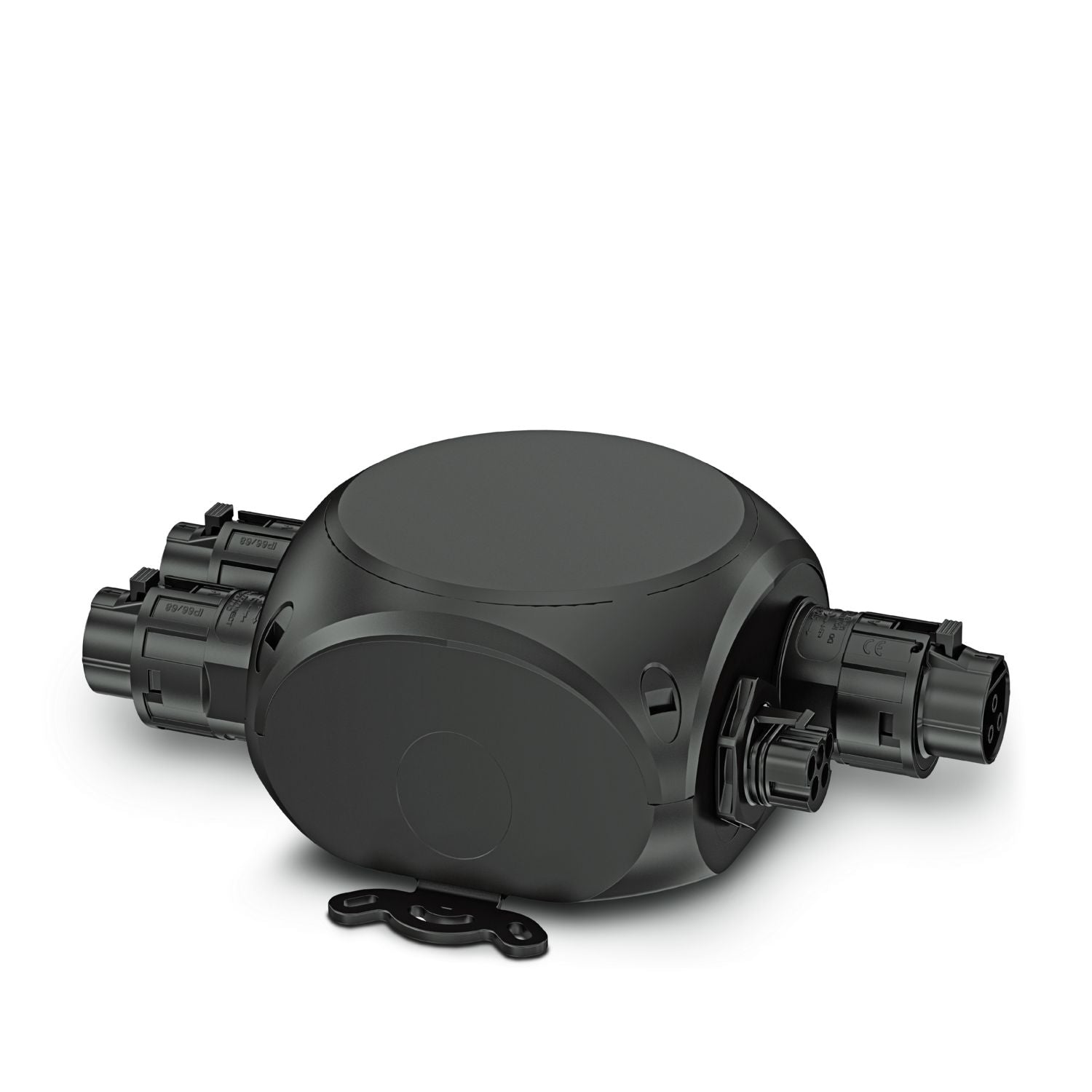

The 1079651 H-distributor from Phoenix Contact’s PRC 35 series is a pre‑assembled power distributor designed for efficient energy routing in industrial, photovoltaic, and automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | General Electric |
| Category |
Components
|
| Part Number | 1079651 |
| Subcategory | Connector/Terminal/Pin |
| Product Family | PRC 35 |
| Coding | AD |
| Halogen-Free | Yes |
| Nominal Voltage | 400 V (III/2.00) |
| Rated Surge Voltage | 8 kV (III/2) |
| Rated Current | 32 A (observe derating curve) |
| Protection Class | II |
| Degree of Pollution | 2 |
| Insertion/Withdrawal Cycles | 2000 |
| Insertion Force | 70 N ±10 N |
| Housing | Polycarbonate (Black, RAL 9005) |
| Contact Carrier |
PPE |
| Contact Material | CuZn (Lead content < 0.1%) |
| Contact Surface | Sn (Tin-plated) |
| Seal Material | TPE |
| O-ring Material | Silicon |
| Locking Screw | Fiber-reinforced Polycarbonate |
| Flammability Rating (UL94) | V0 |
| Degree of Protection | IP66 / IP67 / IP69 |
| Operating Temperature | –40 °C to +70 °C (derating applies) |
| Storage/Transport Temperature | –40 °C to +70 °C |
| Assembly Temperature | –5 °C to +85 °C |
| Width | 238 mm |
| Height | 129 mm |
| Length | 77 mm |
| Weight | 0.691 kgs |
| Replacement Number | 4416 |
Information About 1079651
The 1079651 is part of Phoenix Contact’s PRC 35 family of pre-assembled power distribution systems, engineered for robust and flexible energy branching in industrial, photovoltaic, and automation environments. This H-distributor features one input and three output ports (1I3/3O3), supporting nominal voltages up to 400 V and rated currents up to 32 A, making it ideal for medium-load distribution tasks. Designed with a rugged housing and IP66/IP67/IP69 protection, it offers plug-and-play installation with a locking system that can be released manually or with a tool. Its compact 238 × 129 × 77 mm design ensures durable integration in both indoor and outdoor systems.
Key Features:
- Pre-Assembled H-Distributor: Ready-to-use power distribution module with 1 input and 3 output connectors for fast and error-free field deployment.
- High Voltage and Current Ratings: Supports up to 400 V (III/2) and 32 A with an 8 kV surge voltage rating, suitable for power-hungry loads.
- Rugged Polycarbonate Housing: Made of UL 94 V0 flame-retardant materials with black (RAL 9005) finish and silicon/TPE seals for long-term reliability.
- Superior Environmental Protection: IP66/IP67/IP69 ingress protection allows use in demanding outdoor and washdown environments.
- Quick-Connect Design: Plug-and-play setup with 2000 insertion cycles and 70 N mating force ensures efficient operation and longevity.
- Galvanic Isolation and Safety: Insulated to Protection Class II with 1500 V electrical isolation and meets overvoltage category III requirements.
- Wide Operating Temperature Range: Operates reliably between –40 °C and +70 °C, and installs at temperatures up to 85 °C.
- Halogen-Free and Flame-Retardant: Built for environmentally friendly performance with halogen-free construction and V0 flammability rating.
The 1079651 H-distributor combines high current capacity, robust environmental resistance, and ease of installation for power distribution in industrial and energy applications. With its pre-configured wiring and certified design, it’s a practical solution for decentralized power management in harsh conditions.
