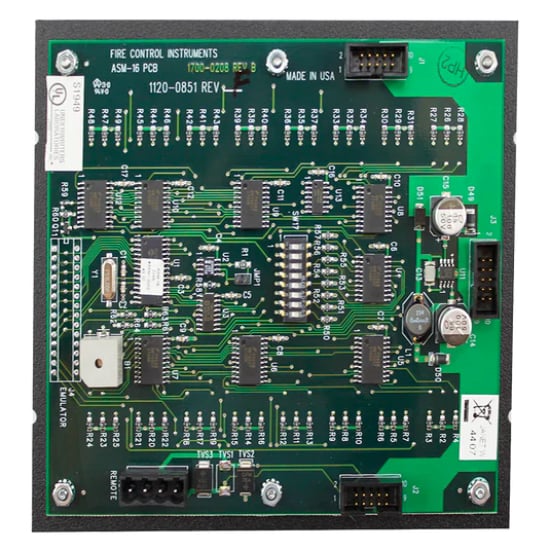

1100-0455 | Gamewell-FCI Addressable Switch Module ASM-16 for E3 and Net Solo Systems
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1100-0455
Description
The Gamewell-FCI 1100-0455 (ASM-16) is an addressable switch module designed to provide operator interface with audio evacuation, firefighter intercom, and building control circuits. It is fully configurable and integrates seamlessly with E3 Series and Net Solo systems for mass notification and emergency communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | 1100-0455 |
| Subcategory | Modules |
| Module Type | Addressable Switch Module (ASM-16) |
| System Compatibility | E3 Series®, E3 Combined Fire & Mass Notification, E3 Broadband Voice, Net Solo® |
| UL Listing | UL® Standard UL2572 for Mass Notification |
| Switch Capacity | Supports up to 16 ASM-16 per INI-VGC or ILI-MB-E3/ILI95-MB-E3 (256 switches total) |
| LEDs | 3 programmable indicators per switch (red, yellow, green) |
| Programming | Fully software-programmable switch functions |
| Labeling | Slip-in label inserts for customizable designations |
| Operating Voltage | 24 VDC nominal (from PM-9/PM-9G power supply) |
| Operating Current | 0.011 A with no LEDs active |
| Operating Temperature | 32° to 120° F (0° to 49° C) |
| Relative Humidity | 0 to 93% non-condensing at 90° F (32° C) |
| Dimensions | 9.5 × 9 × 4 in |
| Weight | 3.2 lbs |
Information About 1100-0455
The 1100-0455 is an ASM-16 addressable switch module developed by Gamewell-FCI for integration with the E3 Series emergency evacuation systems and the Net Solo platform. It provides a configurable operator interface to manage audio evacuation, firefighter communications, and building control circuits. Each module is software-programmable, supports up to 16 switches per controller, and offers flexible LED indicators for clear status monitoring. Its compact design with slip-in labels ensures adaptability in a wide range of emergency and mass notification applications.
Key Features:
- System integration: Designed for E3 Series and Net Solo systems for evacuation, voice, and mass notification functions.
- High switch capacity: Supports up to 16 ASM-16 modules per controller, enabling up to 256 addressable switches.
- Programmable status LEDs: Each switch includes red, yellow, and green LEDs that can be fully programmed for custom indications.
- Software flexibility: All switch functions are fully configurable through system programming for tailored operation.
- UL2572 listing: Certified under UL® Standard UL2572, ensuring compliance for mass notification applications.
- Customizable labeling: Slip-in label inserts provide simple customization of switch designations.
- Reliable operation: Low power consumption at 24 VDC with minimal current draw and robust performance in varied environments.
- Compact enclosure: Space-efficient design with dimensions of 9.5 × 9 × 4 inches for easy installation.
The 1100-0455 delivers the reliability and precision required for professional mass notification, emergency communication, and building control integration.
