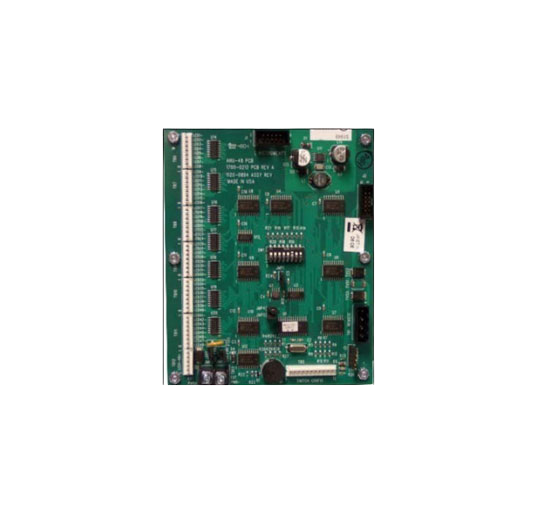

1100-0503 | Gamewell-FCI LED Driver Module for Annunciator and Display Systems
- Regular price
- $774.00
- Sale price
- $774.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1100-0503
Description
The Gamewell-FCI 1100-0503 LED Driver Module is a control interface board designed to manage and power LED indicators in Gamewell-FCI fire alarm annunciator and display systems. It provides reliable activation and supervision of multiple LED outputs to visually indicate system alarms, troubles, and status conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Equipment |
| Part Number | 1100-0503 |
| Subcategory | LED Driver Module |
| Function | Controls and powers LED indicators for system annunciation |
| Number of Outputs | Multiple supervised LED channels |
| Operating Voltage | 24 VDC nominal |
| Input Signal Type | Logic control from main panel or interface board |
| Output Type | Current-limited LED drive outputs |
| Supervision | Open and short circuit fault detection |
| Mounting Type | Panel or enclosure mount |
| Communication Interface | Hardwired control signal input |
| Board Material | Fiberglass PCB with conformal coating |
| Compatibility | Gamewell-FCI E3, FlexAlarm, and legacy annunciator systems |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Compliance | UL Listed; NFPA 72 compliant |
| Dimensions | Approx. 6" L × 4" W × 1.5" D |
| Weight | 0.5 lb (0.23 kg) |
Information About 1100-0503
The 1100-0503 is an LED driver circuit module developed by Gamewell-FCI for integration into fire alarm control panels, graphic annunciators, and custom display assemblies. It receives control signals from the main panel or network controller and distributes power to corresponding LED indicators for event status visualization. Each output channel is supervised to ensure operational integrity and fault detection. Engineered for compatibility with Gamewell-FCI E3 Series and FlexAlarm systems, the 1100-0503 features a compact PCB design for efficient installation in annunciator enclosures or control cabinets. This module provides dependable performance in both new and existing fire alarm configurations.
Key Features:
- Multi-Channel LED Control: Drives multiple LED indicators for alarms, troubles, and supervisory signals.
- Supervised Outputs: Monitors LED circuits for open or short faults to ensure reliable operation.
- Panel Integration: Designed for use with Gamewell-FCI E3 and FlexAlarm systems.
- Compact PCB Design: Fits easily within annunciator housings or control enclosures.
- Stable Power Regulation: Provides consistent voltage output for LED operation.
- Plug-In Connectivity: Terminal-style connections simplify installation and service.
- Visual Status Indication: Enables clear and immediate system condition recognition.
- UL/NFPA Compliant: Meets standards for annunciator circuit design in life-safety systems.
The 1100-0503 delivers the reliability and precision required for visual annunciation and LED control in Gamewell-FCI fire alarm systems.
